2-12
TASC 6100
98-05018
R2
CE & S
TANDARD
V
ERSION
L
IQUID
O
NLY
S
ET
-U
P
S
ETTING
T
HE
C
ORRECTION
F
ACTOR
(Pressure based (Pump L Psi (br)) only)
NOTE: The Correction Factor is locked at 1.00 when in
STnrd and rEFLO modes
I
f you are spraying water solutions, the correction
factor should be set to 1.00. If you are spraying a
solution with a specific gravity different than that of
water, adjust the correction factor according to the following
chart.
Weight of Solution Correction Factor
7.0 lbs/gal .92
8.0 lbs/gal .98
8.34 lbs/gal - Water 1.00
9.0 lbs/gal 1.04
10.0 lbs/gal 1.10
10.65 lbs/gal - 28% Nitrogen 1.13
11.0 lbs/gal
1.15
12.0 lbs/gal 1.20
14.0 lbs/gal 1.30

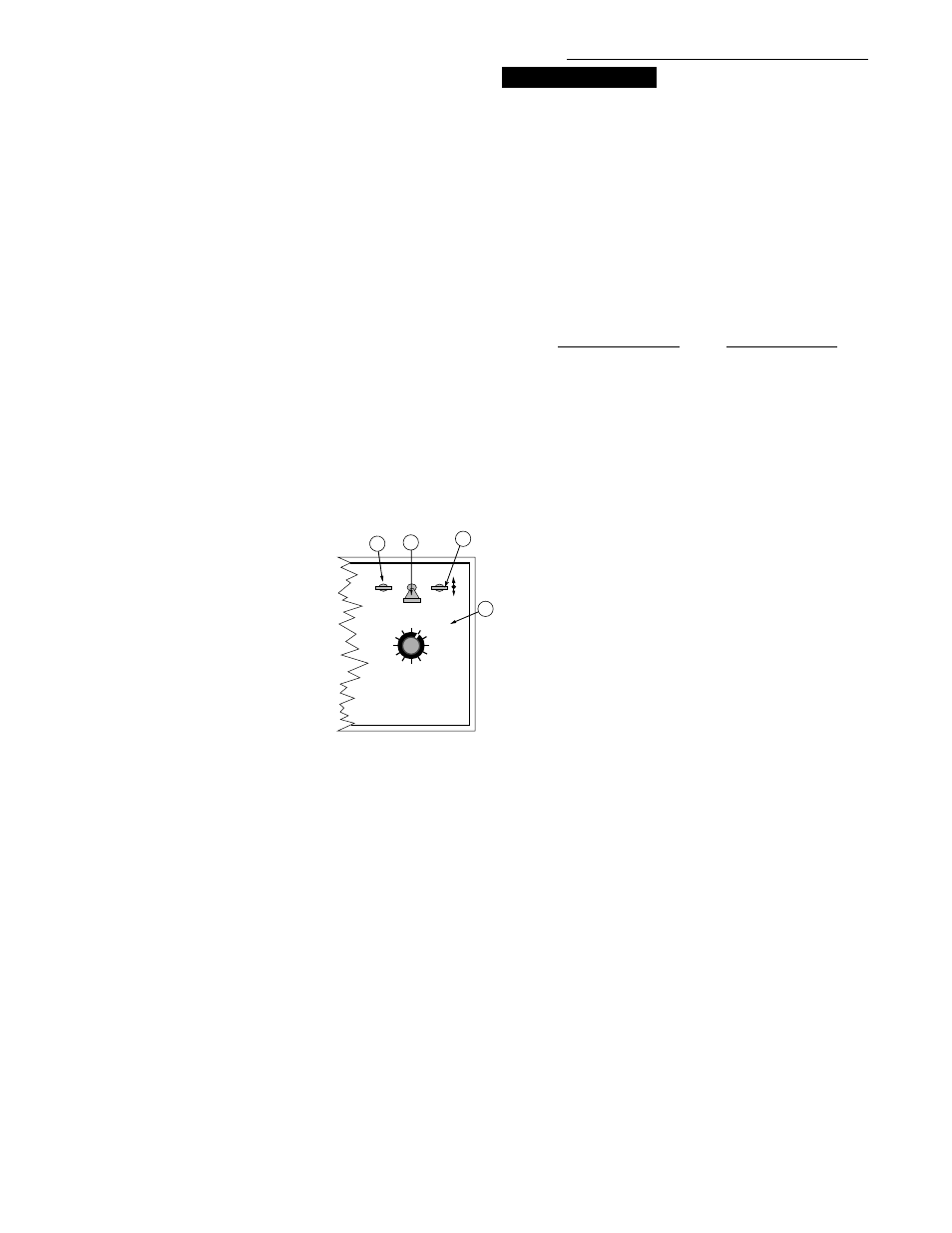

To enter the correction factor, set the console to the
following switch settings:
1. Power ON
2. Mode Selector SET-UP
3. Display Selector Application Rate
4. Use the INC./DEC. switch to adjust the correction
factor.
F
LOW
S
ENSOR
C
ALIBRATION
Determining The Initial Calibration Number
The control console must be calibrated for the flow sensor
being used. The calibration number required by the control
console is the actual number of electrical pulses per unit
volume generated by the sensor, or, for the pressure sensor,
the gallons per acre rating of the nozzles being used. If you
have any doubts as to the accuracy of the application rate,
DISPLAY SELECTOR
Speed
Area Impl. Width
Distance
Test
Speed
PSI/Prime
Total Applied
Application Rate
OFF SET- UP DEC.
ON OPERATE INC.
Scan
Product Vol.
Fan RPM
BOOMS
1 2 3 4 5 6 7 8 9
% Rate
1
3
2
4
