turning on the Implement Status switch (closed circuit)
the flow control valve is already open and product flow
is instantaneous. This response assumes that some other
device, such as a boom section valve, has stopped the
product flow.
When the operator selects the "Close" condition,
deactivation of the Implement Status Switch (open
circuit) automatically causes the flow control valve to
close. This response is preferred when it is necessary to
use the flow control valve to stop the product flow.
Use the following procedure to set the Status switch
response.

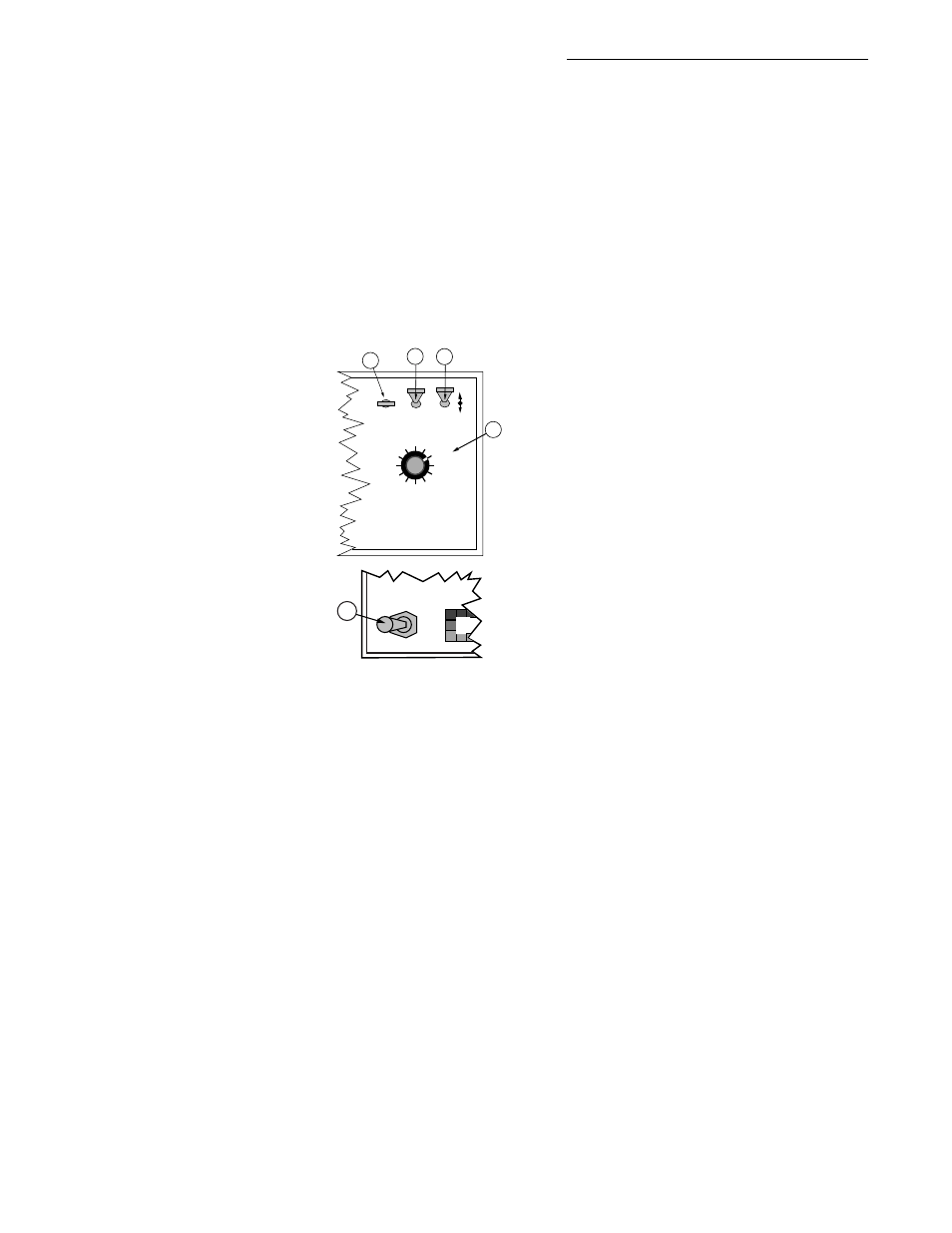

A. Set the console to the following positions;
1. Power ON
2. Mode Selector OPERATE
3. Display Selector Total Applied
4. Boom switches OFF
(or Master switch)
B. Hold the INC./DEC. switch up to display the current
setting (Hold or Close). Continuing to hold the INC.
switch up will cause the display to alternate
between the two options at about three to ten
second intervals. The option appearing in the
display when the INC. switch is released is the
response selected.
All Booms Off
When the operator selects a "Hold" condition, an “All
Booms OFF" condition (either all Boom switches or the
Master switch OFF) hold’s the flow control valve in its
current position. When the boom valves are turned ON
again the flow control valve is already open and product
flow is instantaneous.
When the "Close" condition is selected, an “All Booms
OFF" condition automatically causes the flow control
valve to close. This response is preferred when it is
necessary to use the flow control valve to stop the
product flow.
DISPLAY SELECTOR
Speed
Area Impl. Width
Distance
Test
Speed
PSI/Prime
Total Applied
Application Rate
OFF SET- UP DEC.
ON OPERATE INC.
Scan
Product Vol.
Fan RPM
BOOMS
1 2 3 4 5 6 7 8 9
% Rate
A-1
A-2
A-3
C
MASTER
ON OFF MI
B
