To select/deselect multiple icons at once:
+
Using finger, drag box around icons you wish to select. Selected icons will be highlighted in orange.
+
Double-tap in Plan View to deselect all icons.
+
Press Cmd+A on the Mac keyboard to select all fixtures.
Zoom
Selected areas can be zoomed using the zoom controls.
To zoom into a selected area:
Step
1. At Plan View, touch white Zoom icon. (When Zoom mode is active, luminaire icons will not be selected when
dragging to create a box.)
Step
2. Using finger, drag box around desired zoom area.
Step
3. Touch Zoom icon to toggle back and forth from zoomed area to wide view.
To create a new selection box:
+
While in Zoom mode, a new selection box can be created by dragging finger across a new area.

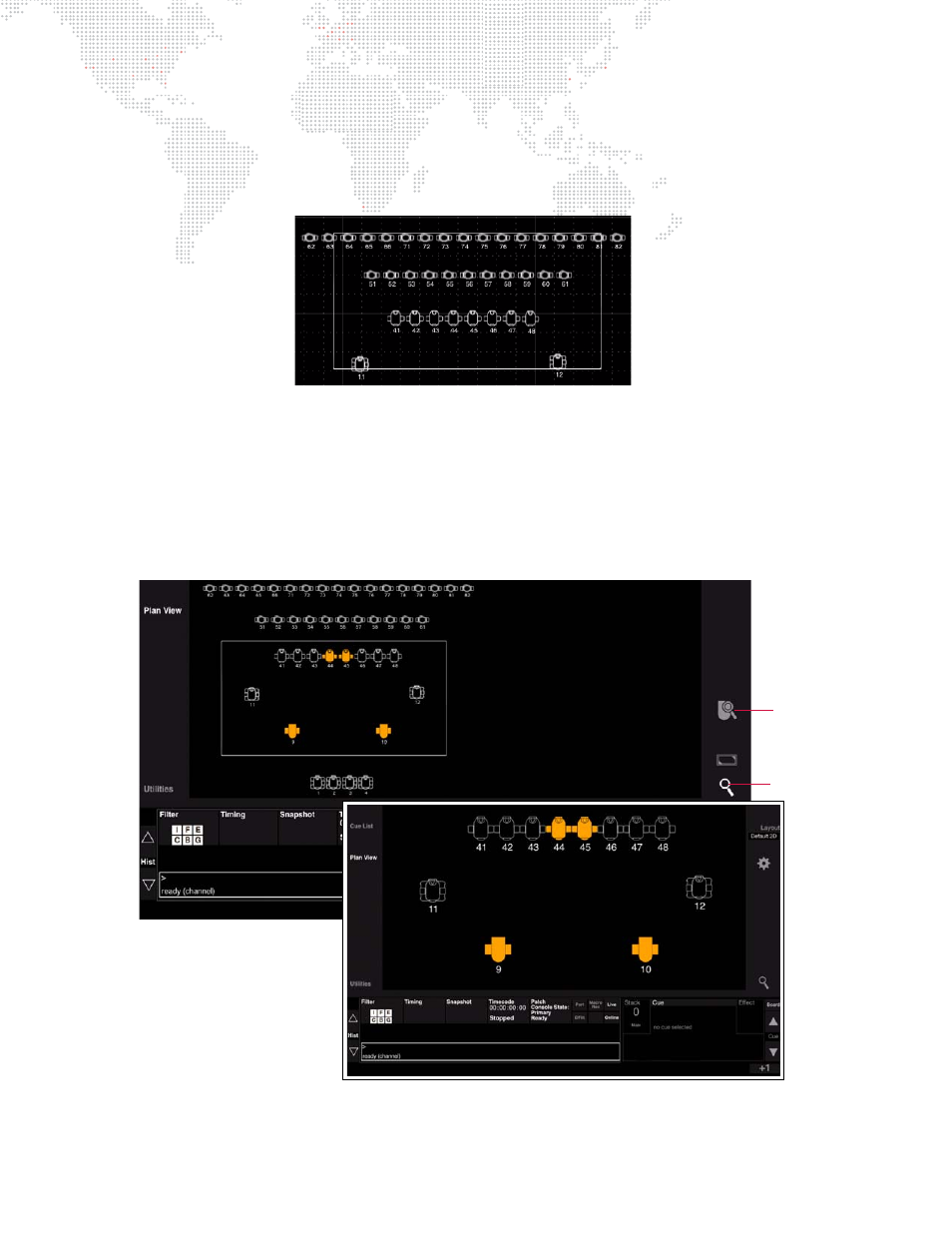

Zoom Box
Zoomed Area
Wide View
Zoomed View
Zoom Icon
Zoom To
Selection
