DISPLAY FILTERS
Loading Filters
Console status windows can be configured to include data from specified channels only.
Once a display filter has been loaded, only data from the specified channels would be
shown in the status windows and only these luminaires would appear in the 3D Graphic
window.
Load a display filter:
Step
1. Select only channels you wish to be displayed in status or 3D Graphic windows.
Step
2. At front panel, press [Display Filter] toggle button (button will flash)
or
at Special
menu, select Load Display Filter.
Step
3. To load a new display filter, repeat steps 1 and 2 for different groups of channels.
Clear a filter:
Step
1. Clear all channel selections.
Step
2. At front panel, press [Display Filter] toggle button
or
at Special menu, select
Load Display Filter.

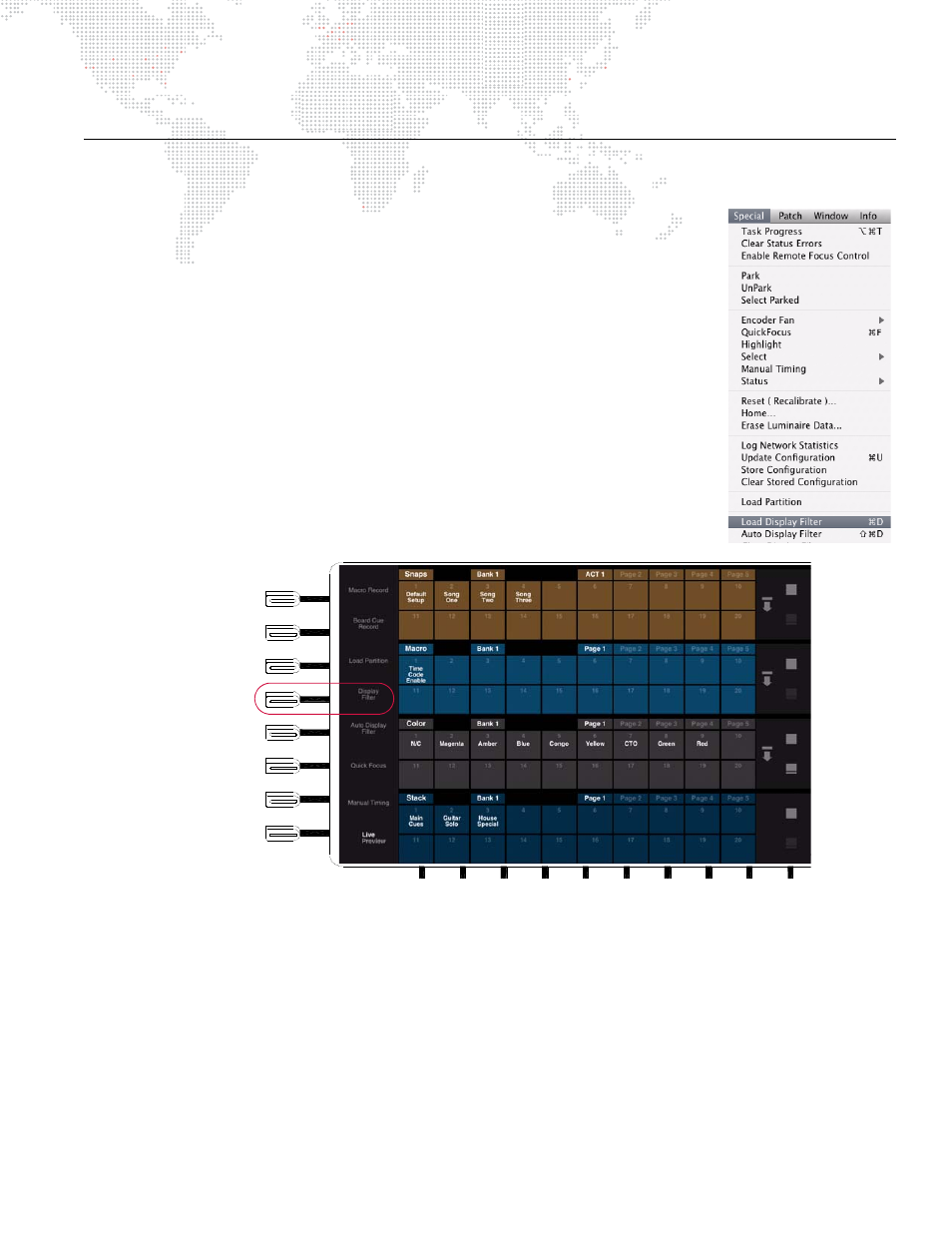

Display Filter
Toggle Button
