Storing snapshots – PRG V676 User Manual 3.5 User Manual
Page 269

V676
®
/ V476
®
CONTROL CONSOLE USER MANUAL
251

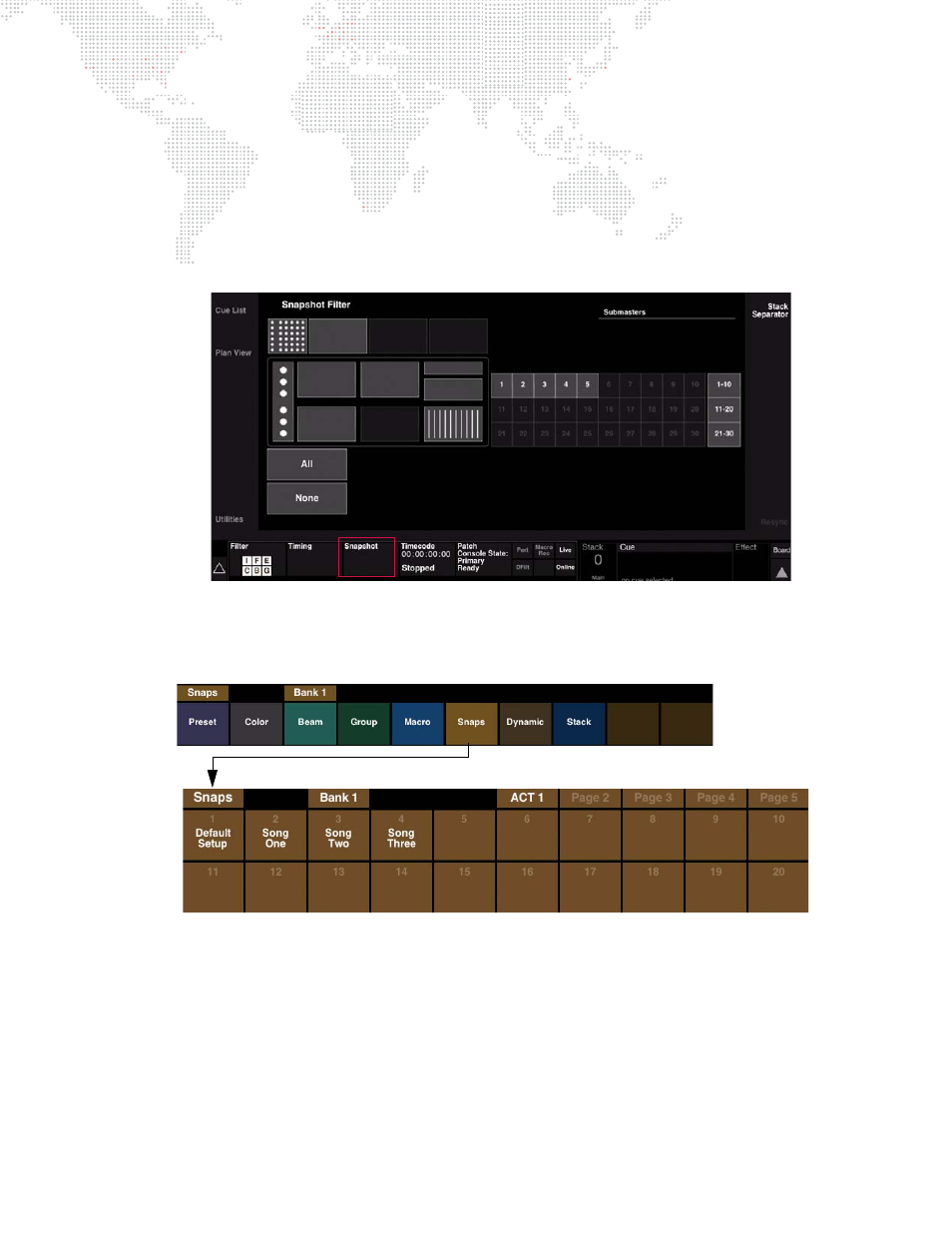

Storing Snapshots
Snapshots are stored in the Snapshots palette banks and can be accessed on any of the palettes just as Presets,
Colors, Beams, Groups, Macros, and Effects or from the keypad. For instructions on using the palettes, refer to the
"Palettes" chapter on page 125
Store a snapshot using the palette:
Step
1. Configure console as required.
Step
2. At central touchscreen, press
Snapshot
button. Snapshot Filter will open.
Step
3. At Snapshot Filter, select console areas to be snapshot. (They will be highlighted in gray.)
Step
4. At palettes, select
Snaps
.
Step
5. Press and hold [Store] while pressing
Snapshot Palette Button
. Snap shot will be stored in the palette.
Snapshot Palette Buttons
