Note: If a standard DVI monitor is to be used instead of the included monitor, refer to
Step
3. At rear of console, install two support arms as shown in Detail B of Figure 1-16.
Step
4. Slide Channel Select panel and monitor down onto support arm quick-release connectors as shown in
Detail A of Figure 1-16.

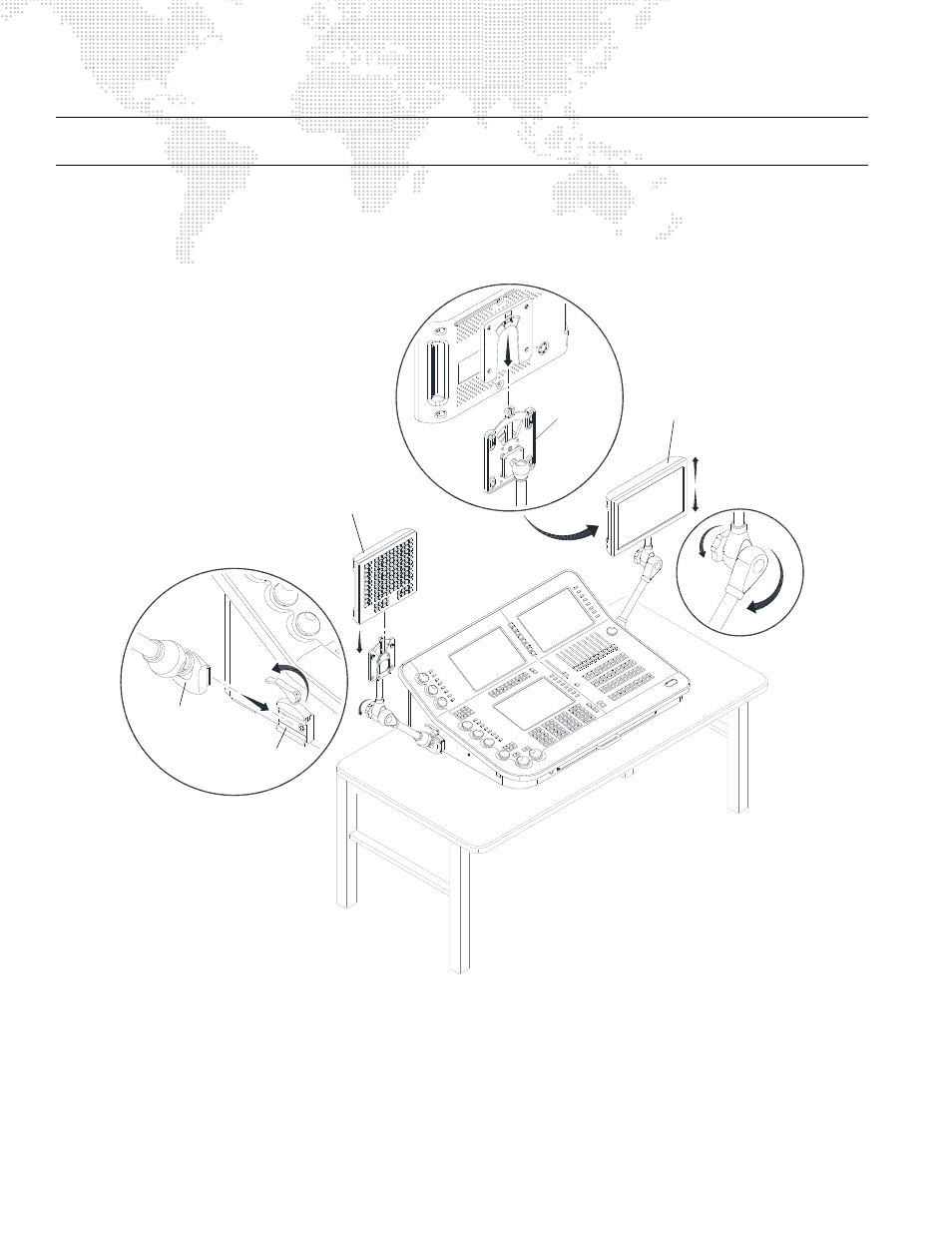

Figure 1-16: Installing V476 Channel Select Panel and Monitor
Support Arm (2)
Monitor
Channel
DETAIL A
Select
DETAIL B
Quick-
Release
Support Arm
Bracket (2)
