24
V676
®
/ V476
®
CONTROL CONSOLE USER MANUAL
Step

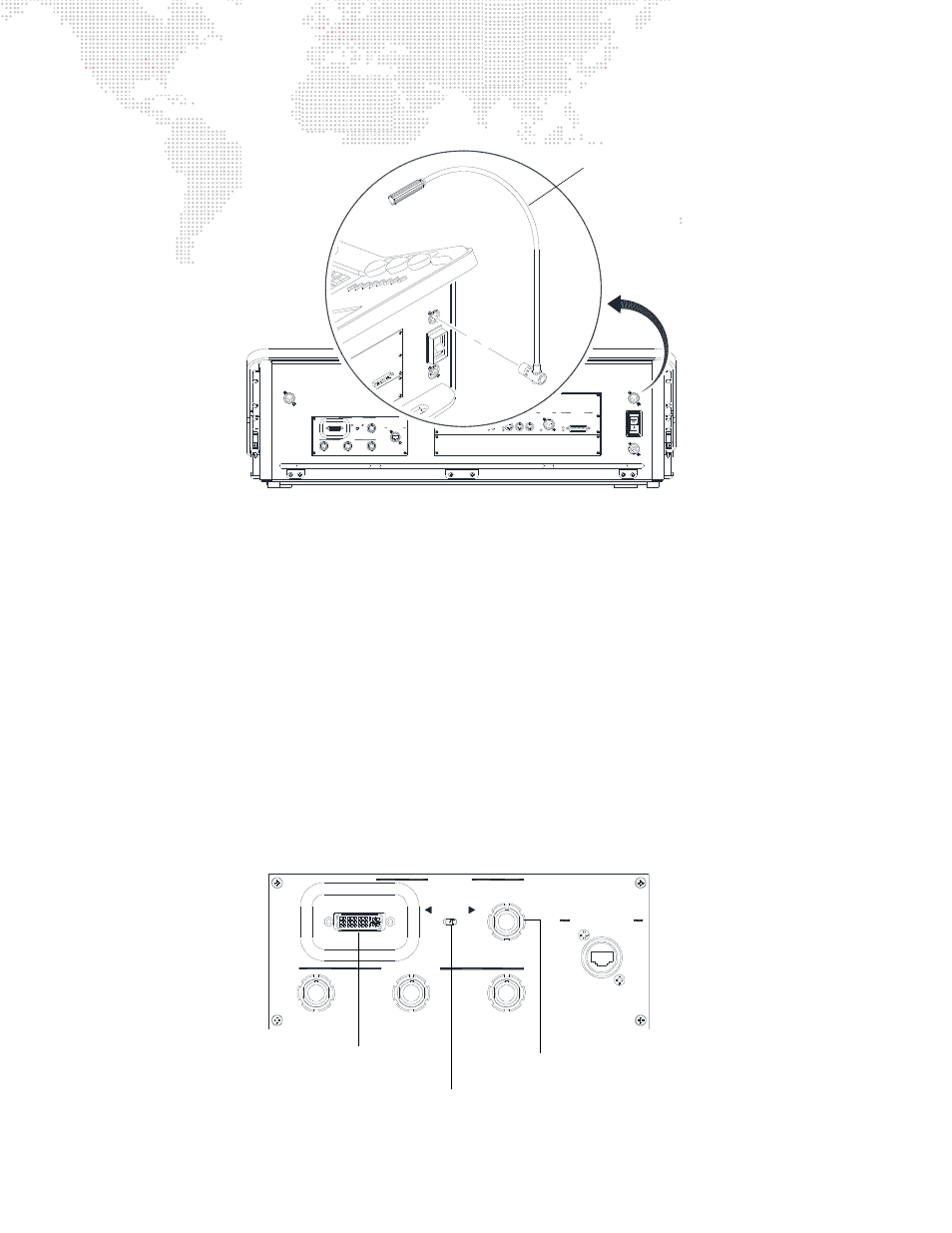

7. At rear of console, install desk lamps (Figure 1-18).
Figure 1-18: Installing V476 Desk Lamps
Display Setup for the V476 Console
For the standard setup, the resolutions and arrangement of the monitors in the display preferences should NOT need
to be changed. Normally, there will be three 1280 x 800 displays and one 1280 x 768 display. If there is an issue at
startup for some reason, 'Detect Displays' should get the correct information.
Using a Standard DVI Monitor with the V476 Console
The V476 console is shipped with one touchscreen monitor. However, it is possible to connect a standard DVI monitor
instead of the included monitor.
Installation Guidelines
:
+
Either the included monitor must be used
or
a user-supplied monitor must be installed in its place.
Only one of the
outputs will be active.
+
Two connection options are available on the console rear panel: DVI or Integrated Cable as shown in Figure 1-19
below. The toggle switch enables the required output.
Figure 1-19: V476 Console Rear Panel Connections
Displays
1
Out
In
Out
In
In
Tx
Rx
Serial Data
SMPTE In
2
Accessories
3
1
Enable
Aux Ethernet
Desk Lamp
Displays
1
2
Accessories
3
1
Enable
Aux Ethernet
Integrated Cable Output
Toggle Switch - Toggles between DVI output or Integrated Cable output
DVI Output
