V676
®
/ V476
®
CONTROL CONSOLE USER MANUAL
23
CAUTION: Power supply plug and/or power switch/circuit breaker shall remain readily operable.
Step
5. Connect components and computer to console using supplied cables (Figure 1-17). Install LEMO style
connectors as shown.
Step
6. Connect console to AC power.

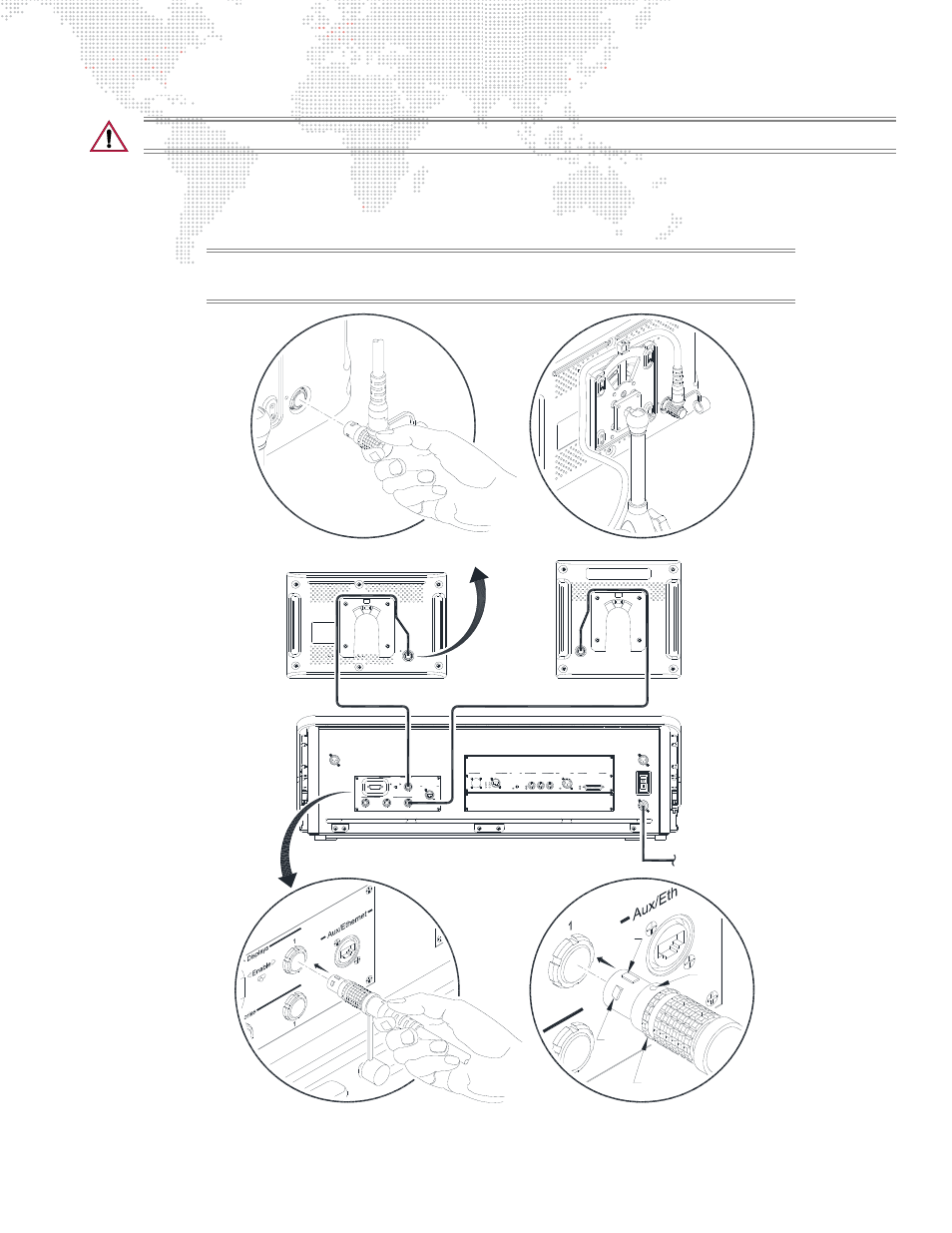

Figure 1-17: Connecting Components and Computer to V476 Console
V476 Console
Channel Select
Displays
Out
Thru
In
In
Out
In
In
Tx
Rx
Trigger
MIDI
Serial Data
SMPTE In
2
Accessories
3
1
Enable
Aux Ethernet
Tx
Rx
Lk
System Comm
External Monitor
To AC Power
Locking
Clips
Red
Dot
Key (Up)
Grip Ring
Power/Data
Power/Data
Video
CAUTION:
Orient right-angle LEMO connector as shown in Details A and B below.
This will ensure that the cable is dressed around the monitor mount and support arm.
DETAIL A
DETAIL B
