12

V676

®

/ V476

®

CONTROL CONSOLE USER MANUAL

Note: If standard DVI monitors are to be used instead of the included monitors, refer to

"Display Setup for the V676

Console"

on page 16.

Step

6. At rear of console, install four support arms as shown in Detail B of Figure 1-6.

Step

7. Slide Channel Select panel and monitors down onto support arm quick-release connectors as shown in

Detail A of Figure 1-6.

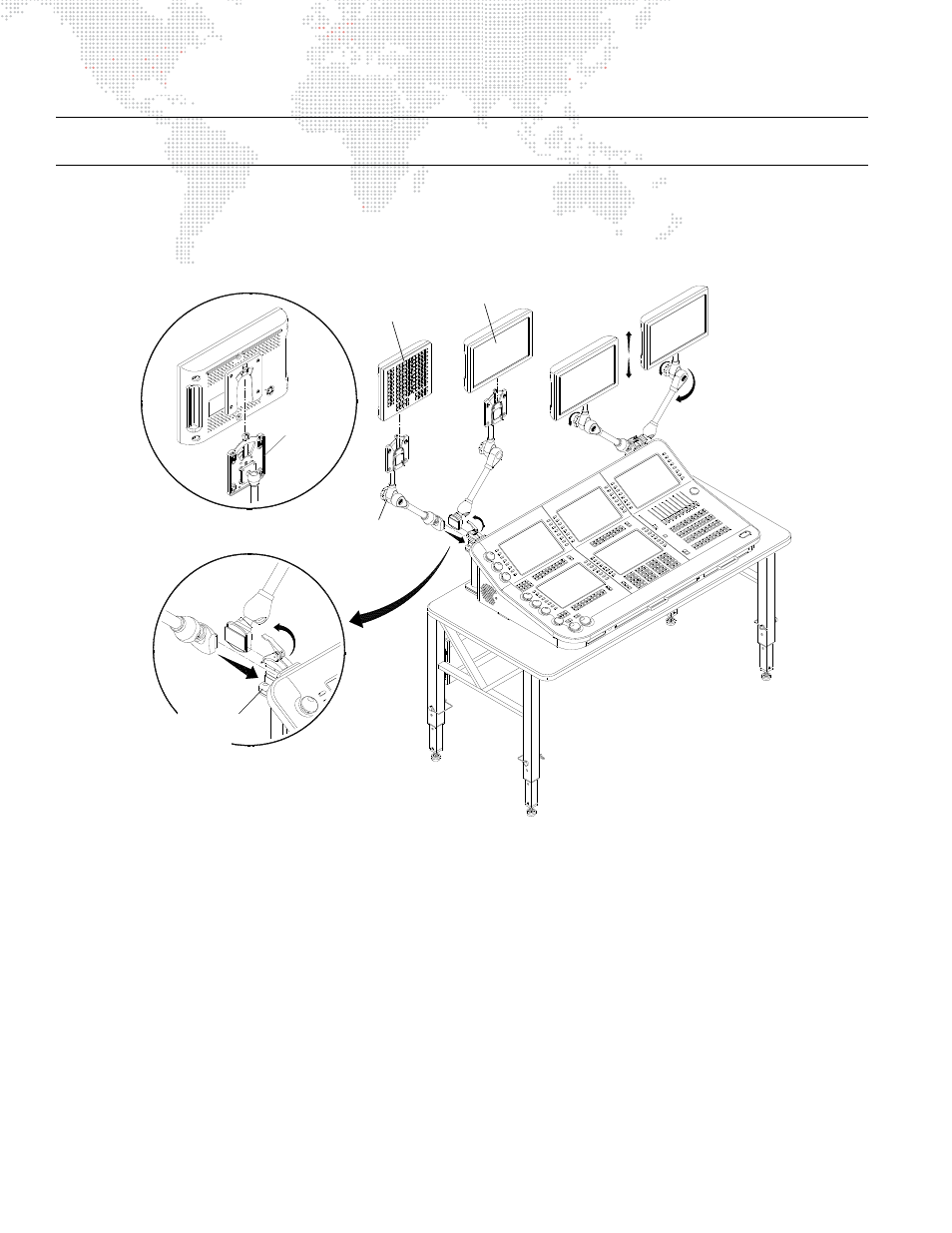

Figure 1-6: Installing V676 Channel Select Panel and Monitors

Support Arm (4)

Monitor (3)

Channel

DETAIL A

Select

DETAIL B

Quick-
Release

Support Arm
Bracket (2)
