V676

®

/ V476

®

CONTROL CONSOLE USER MANUAL

49

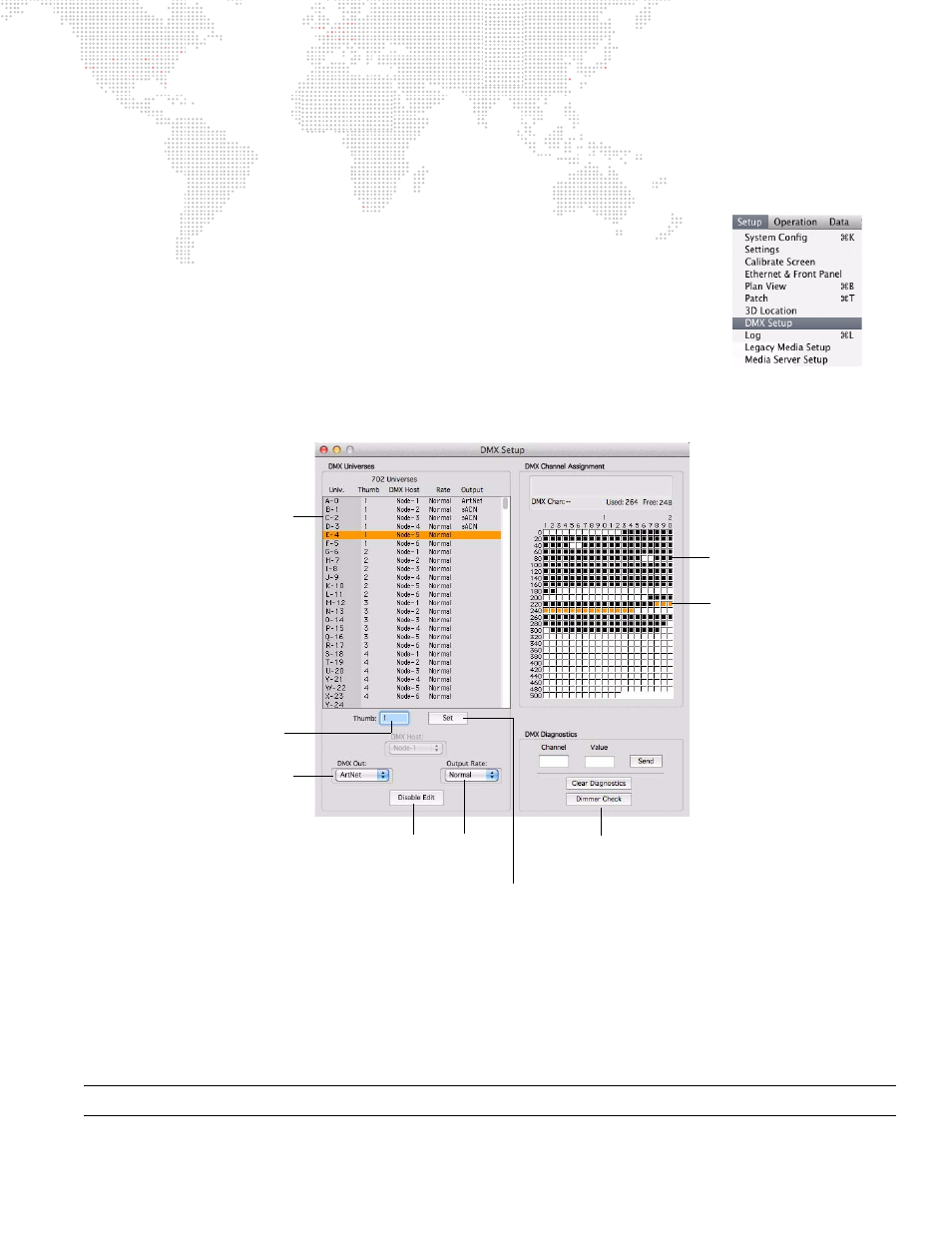

DMX Universes

The console provides for a maximum of 702 universes (labeled A thru ZZ), which are assigned to DMX buses or
"hosts" (hardware outputs within the system). This means that the actual amount of buses available will depend on
your system setup.

To define DMX512 universes:

Step

1. At Setup menu, select DMX Setup.

Step

2. For each required universe, do the following:

a.

Press Edit button to enable window editing.

b.

At DMX Universe list, select universe.

c.

At DMX Host drop-down menu, select Node DMX output as sACN or ArtNet
(see below).

d.

Enter Node address.

e.

Click Set to enter settings and advance to next line.

* For instructions on using DMX diagnostics, refer to

"DMX512 Channel Tests"

on page 370.

Streaming ACN

Each PRG Node Plus output port can be configured to send ANSI E1.31 Streaming ACN (sACN) format packets over
the Ethernet port instead of Art-Net packets. This selection is made by setting the DMX Out option to "sACN" and
clicking the Set button. (The default output type is Art-Net.)

Note: E1.31 does not allow universe 0, so that universe cannot be used with sACN.

For use with DMX
diagnostics feature *

Node Address

Set Button -
Press to enter current settings
and advance to the next line

Enable/Disable

DMX Output of Node

DMX Universe (A-ZZ)
Must be assigned to a
DMX Host (Node, etc.)

DMX512 channel
assignments for
selected universe

Orange highlights
show DMX channel
range for selected
fixtures

Patch Editing

DMX
Output
Rate
