V676 ® / V476 ® CONTROL CONSOLE USER MANUAL 51
Patching DMX Fixtures
The patch setup screens will be slightly different depending on whether a DMX fixture or conventional fixture is being
patched.
To patch a DMX fixture:

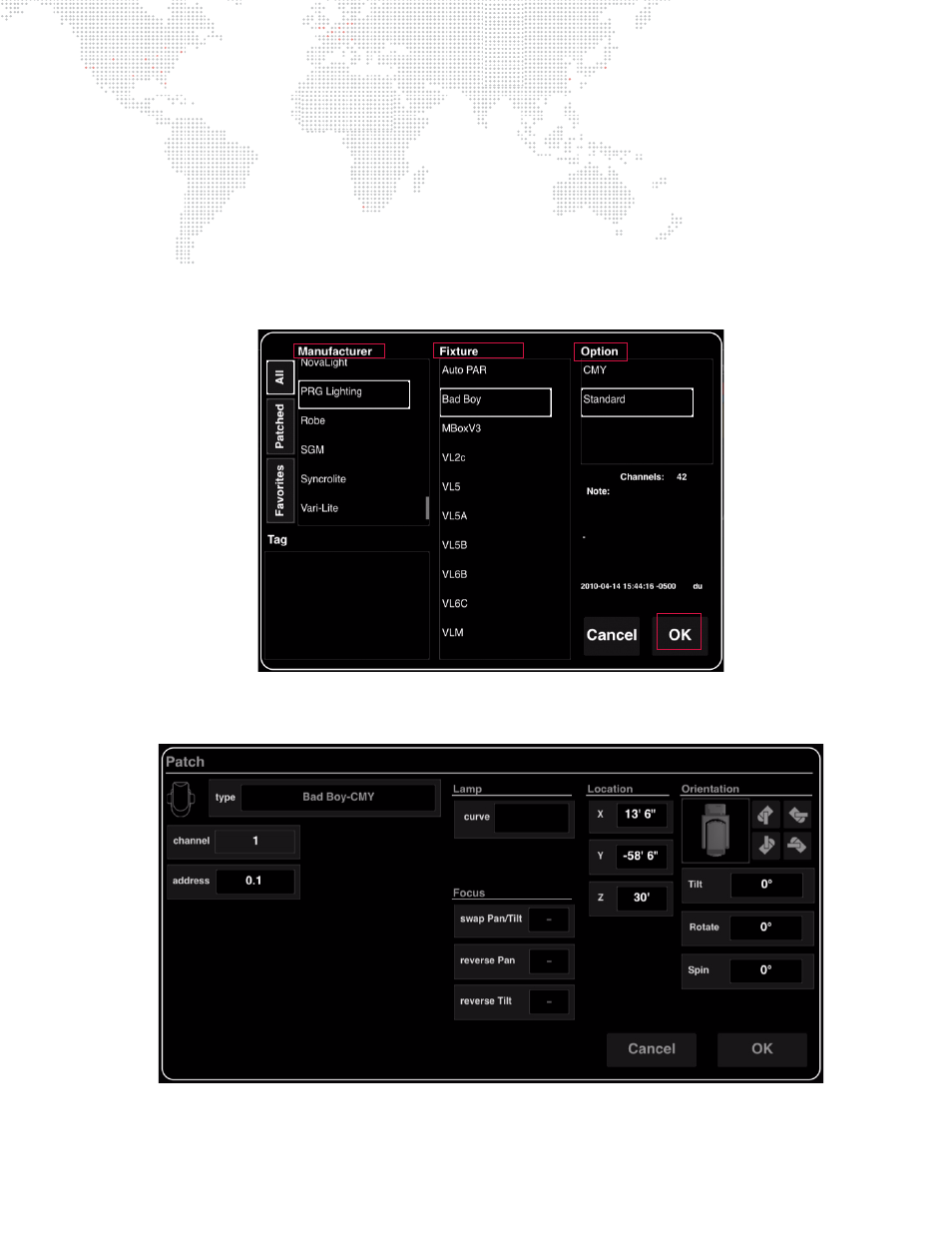

Step 1. At command-line keypad, press [Patch] button. Patch dialog will open in central touchscreen and Patch
Editing mode will be enabled.
Step 2. First select a Manufacturer, then the Fixture type, then an Option (if applicable - not all fixtures will have
options).
Step 3. Press

OK

to go to next setup screen.
Step 4. At fixture Patch screen, set options as required. Touch in field (such as channel number) and use keyboard
to enter values, or use command-line entries.
