Switch Closure Trigger Input
The switch closure trigger port is wired to the Board Control [Go] button. Closing the switch by any compatible device
is the equivalent of pressing this button. The triggering device can be any device that will supply the "short," such as
a hand-held switch, a relay, a footswitch, etc.
The switch closure trigger port will accept a 2-conductor mini mono phone plug which can be purchased from PRG or
other electronics outlets:
PRG Part No. Accessory
52.6616.0780 MINI PHONE .141" MONO SHIELDED 2-COND SOLDER PLUG
Manufacturer Part No. Accessory
Switchcraft 780 MINI PHONE .141" MONO SHIELDED 2-COND SOLDER PLUG
Digi-Key SC1057-ND MINI PHONE .141" MONO SHIELDED 2-COND SOLDER PLUG

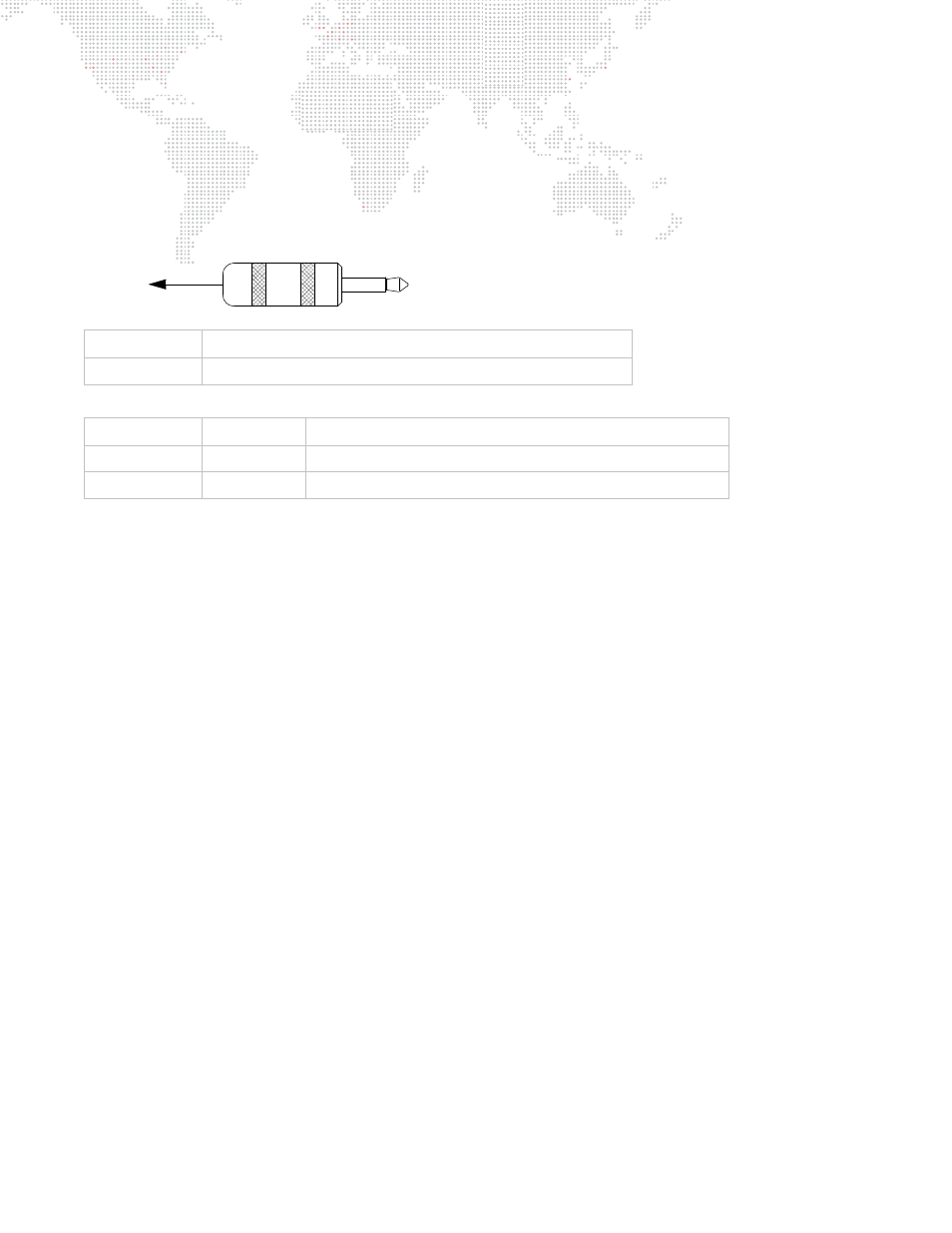

To Switch
