Appendix Page A-7
Shield
Black
Red Red
Green Green
Pin Pin
1 N/C N/C DCD 1
2 TXD RXD 2
3 RXD TXD 3
4 RTS DTR 4
5 CTS GND 5
6 DSR DSR 6
7 GND RTS 7
20 DTR CTS 8
22 Ring N/C N/C Ring 9
RS-232C Communication Cables
▲ ▲ ▲ ▲ ▲ RS-232C Communication Cables
An RS-232C communication cable is used to connect the FieldBook to a computer, printer, or
another FieldBook. Two models are available from Juniper Systems:
- CA-009-9: features one 25 pin D subminiature connector with socket contacts to plug into
the FieldBook's serial port and one 9 pin D subminiature connector with socket contacts to
plug into devices with a 9 pin communication port.
- CA-009: features two 25 pin D subminiature connectors with socket contacts. One
connector plugs into the FieldBook's serial port and the other plugs into devices with a 25
pin communication port.
The cable length for both models is six feet.

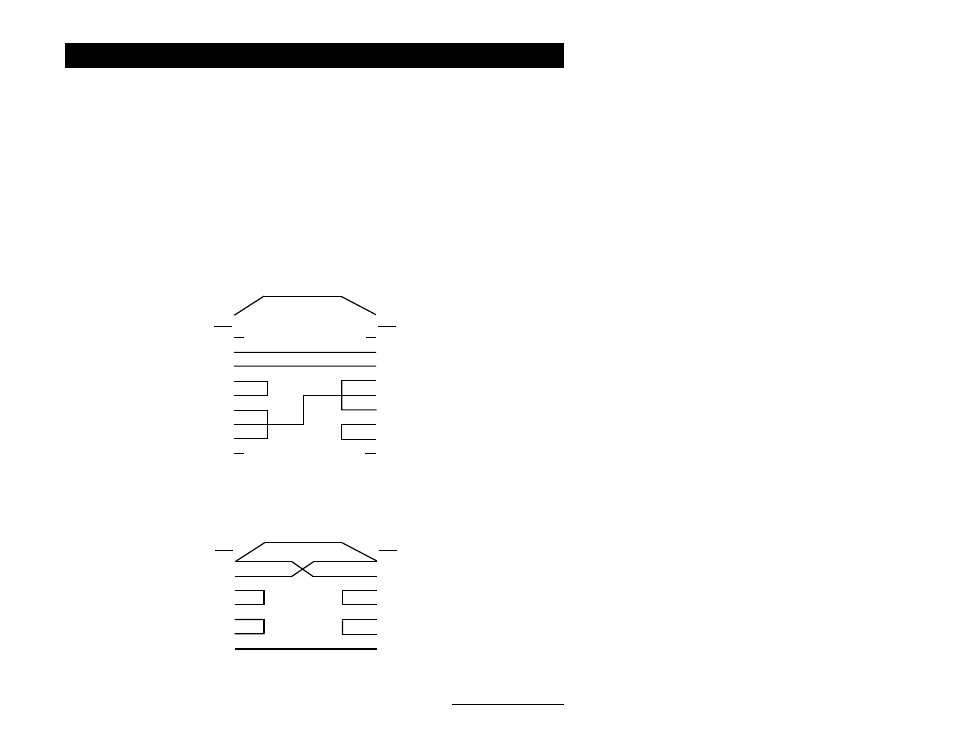

CA-009-9 Wiring Schematic
Female 25 Pin Sub D
Connector, FieldBook End Female 9 Pin Sub D
Connector, PC End
CA-009 Wiring Schematic
Pin Pin
2 TXD TXD 2
3 RXD RXD 3
4 RTS RTS 4
5 CTS CTS 5
6 DSR DSR 6
20 DTR DTR 20
7 GND GND 7
Shield
Red Black
Black Red
Female 25 Pin Sub D
Connector, FieldBook End Female 25 Pin Sub D
Connector, PC End
