SafeCharger Battery Pack Charger

The SafeCharger

is a timed charger with two functions:

❏ Recharging a FieldBook

battery pack over a 12 hour period (overnight charge rate).

❏ Maintaining the charge of the battery pack and backup battery during periods of disuse

(trickle charge mode).

How to Use the SafeCharger

1) Plug the AC charging adaptor into a 110V or 220V AC outlet (depending on which

model you have).

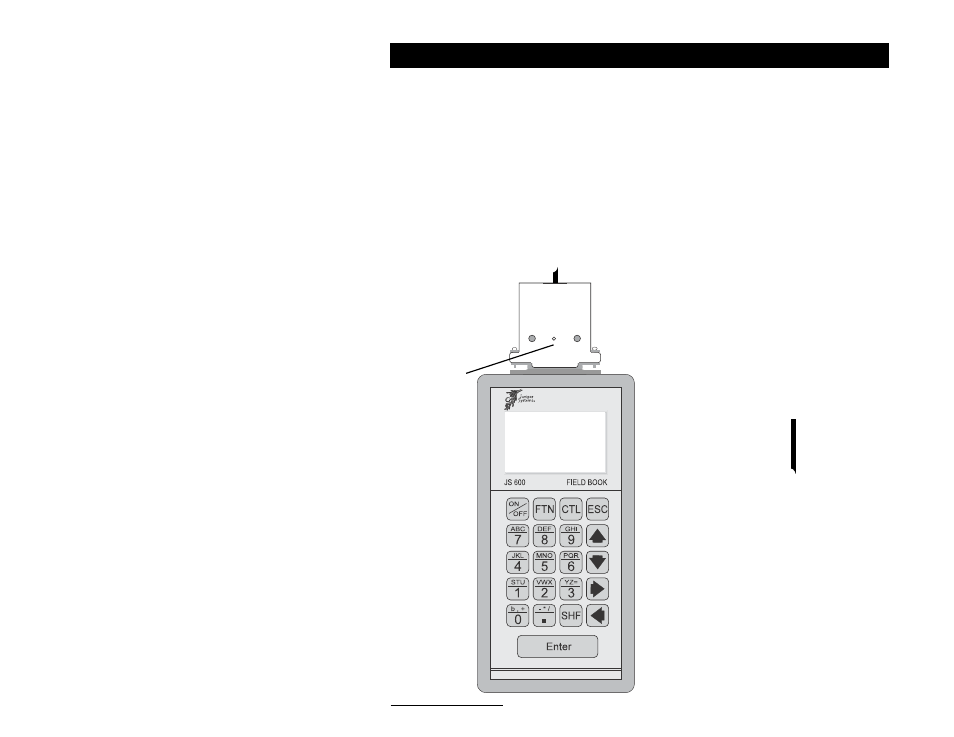

2) Insert the charger’s connector into the serial port on the FieldBook and tighten the

thumbscrews.

Green LED:
Charge
Indicator

Red LED:
Overnight
Rate
Indicator

Manual
Trickle
Charge
Set
Button

>

<
