TOSHIBA
TMP87CM24A/P24A
2.8 8-Bit Timer/Counter 5 (TC5)
2.8.1 Configuration

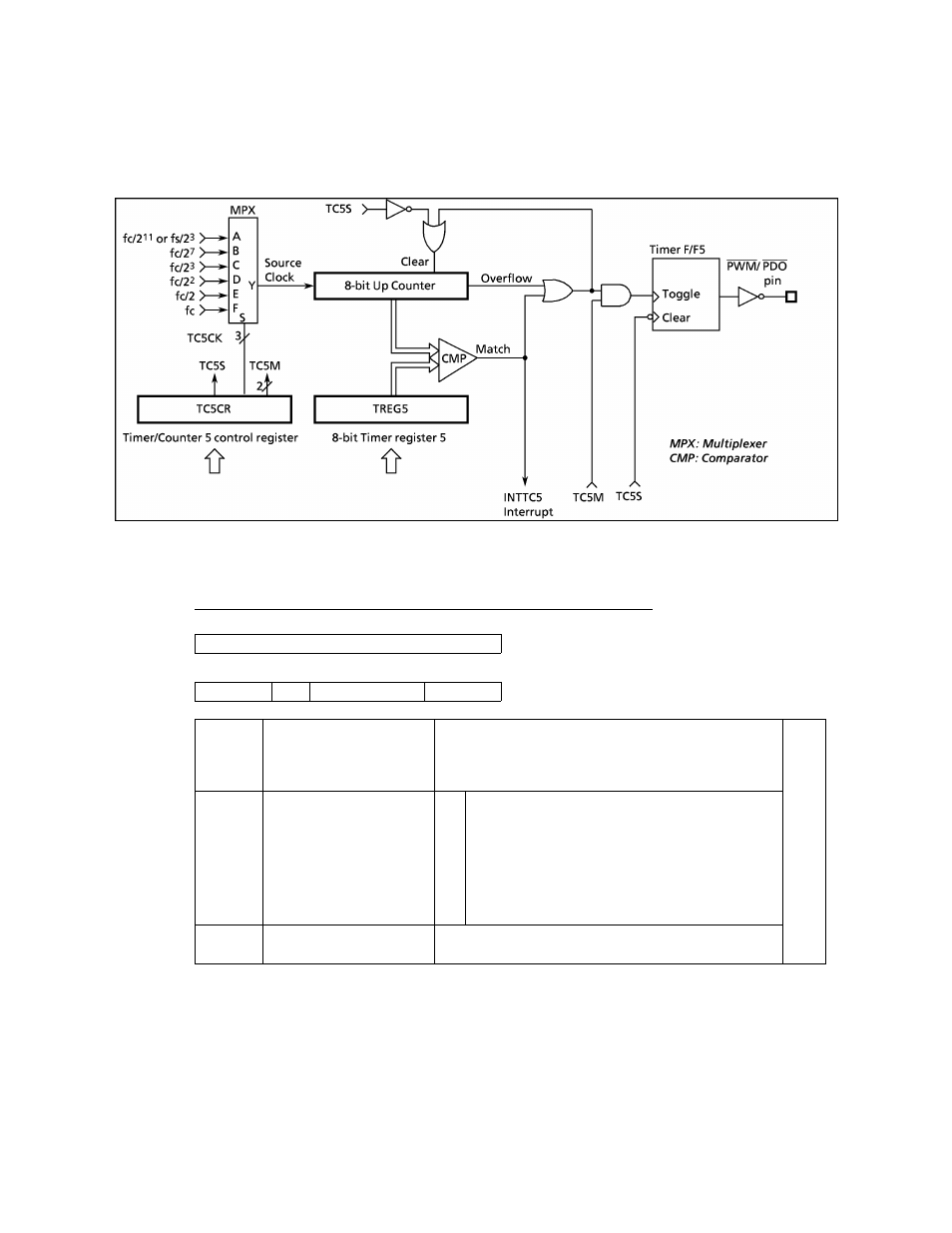

Figure 2-29. Timer/Counter 5 (TC5)
2.8.2 Control
The TC5 is controlled by a timer/counter 5 control register (TC5CR) and an 8 -bit timer register 5 (TREG5).
7 6 5 4 3 2 1 0
Write only
7 6 5 4 3 2 1 0
TC5S TC5CK
_____ 1____ 1____
TC5M
_____ 1____
(Initial **00 0000)
TREG5
(001DH)
TC5CR
(001 EH)
00 Timer mode
TC5M TC5 Operating mode select
01 Reserved
10 Progrmmable divider output (PDO) mode
11 Pulse width modulation (PWM) output mode
000 Reserved
Write
001 Internal clock fc/2ii or fs/23 [Hz]
TC5CK TC5 Source clock select
010
o i l
Internal clock fc/27
Internal clock fc/23
only
100 Internal clock fc/22
101 Internal clock fc/2
110 Internal clock fc
111 Reserved
TC5S TC5 Start control
0 Stop and clear
1 Start
Note 1: fc: High-frequency clock [Hz], fs: Low-frequency clock [Hz], *: Don't care
Note 2: The set value of timer register must satisfy the following conditions.
(a) When in PWM output mode, 5
(b) When in any other mode than PWM output mode, 0< TREG5
Note 3: Source clock fcl22, fcl2, and fc cannot be used except in PWM output mode.
Note 4: Set the operating mode and the source clock selection when timer/counter stops (TC5S = 0).
Figure 2-30. Timer/Counter 5 Timer register. Control register
3
-
24-79 2002
-
10-03
