Carrier 48/50PD05 - Manual (Page 57)

57
Space Temperature Sensor (T--58)
The T--58 space temperature sensor (part no. 33ZCT58SPT) is a
field-installed accessory. The T--58 sensor communicates with the
ComfortLink™ controller, providing space temperature, heating
and cooling set points, and mode operation information.
Refer to the T--58 installation instructions for information on
installing and configuring the T--58 sensor.
Each T--58 sensor must have a unique address on the CCN. Each
T--58 sensor must also be configured with the address of the unit
control it is communicating to.
Space Temperature Sensor Averaging
See Fig. 26 for space temperature averaging with T--55 sensors
only. If the use of one T--56 sensor is required, refer to Fig. 27.
NETWORK
OPTIONS
REMOTE
CCN SITE AUTODIAL
GATEWAY
NON CARRIER
HVAC
EQUIPMENT
TERMINAL
SYSTEM
MANAGER
TCU
ROOFTOP
UNIT DAV AIR
TERMINAL
TCU
TCU
DAV AIR
TERMINAL
AIR DISTRIBUTION-DIGITAL AIR VOLUME CONTROL (DAV)
DAV FAN
POWERED
MIXING
BOX
TO
ADDITIONAL
TERMINALS
HEATING/COOLING UNITS
BUILDING SUPERVISOR
ROOFTOP
UNIT
CL
ROOFTOP
UNIT
CL
ROOFTOP
UNIT
CL
ROOFTOP
UNIT
CL
CCN BUS
CL
COMFORT
CONTROLLER
LEGEND
CCN -- Carrier Comfort Network r
CL -- ComfortLink t Controls
DAV -- Digital Air Volume
HVAC -- Heating, Ventilation, and
Air Conditoning
TCU -- Terminal Control Unit
C07030

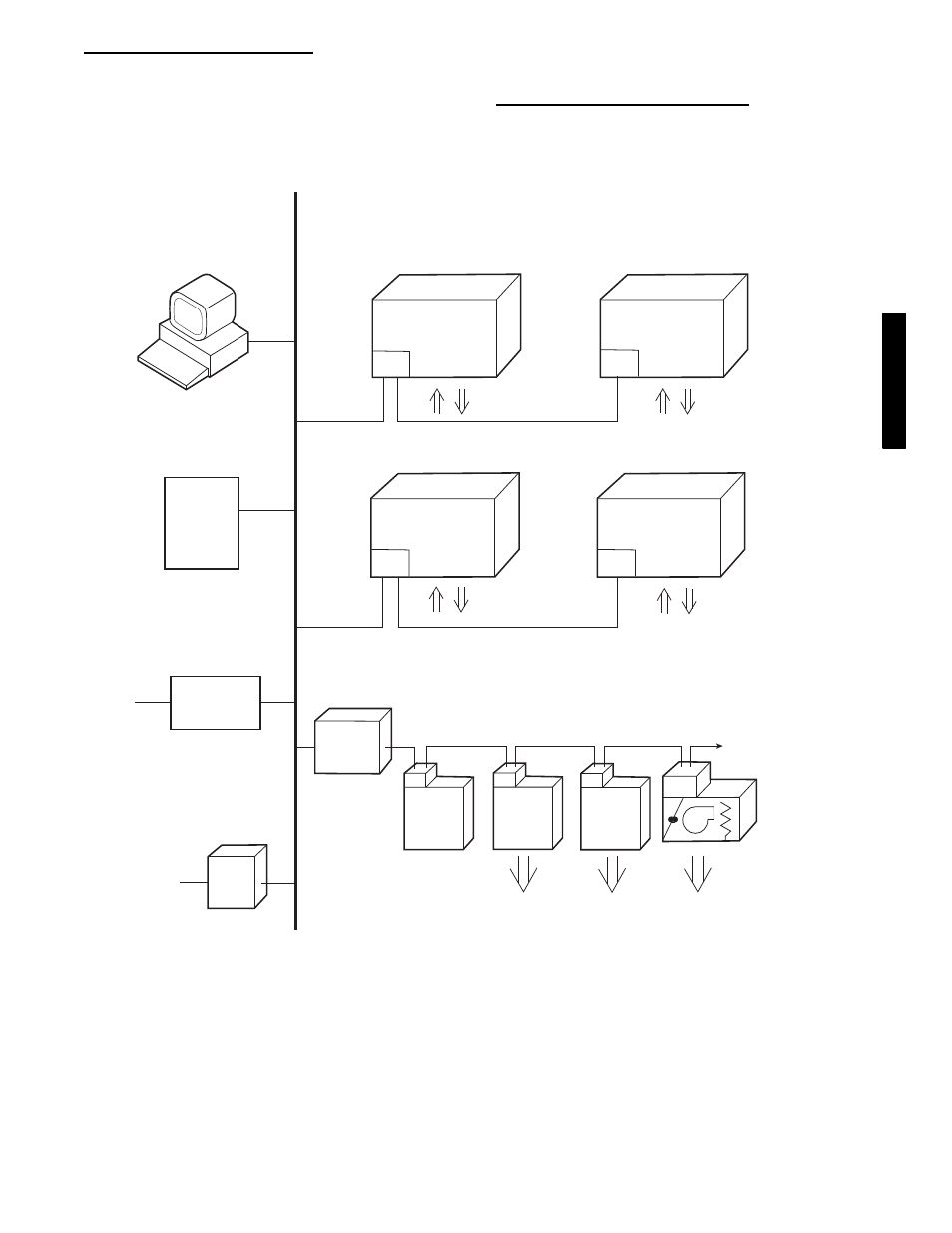

Fig. 25 -- CCN System Architecture
