Page 4 MSI-9850 RF Remote Indicator • User Guide
MSI-9850
HANDHELD RF REMOTE INDICATOR for
C
ELL
S
CALE
®
KEY DESCRIPTIONS
SECTION 1 – INTRODUCTION & ORIENTATION
INTRODUCTION
The Measurement Systems International MSI-9850 RF Remote Indicator is an accessory component of MSI's
CellScale
®
System. Combined with 1 or more CellScales, the 9850 provides complete control over all scale and
data functions. The 9850 serves as a remote terminal for any CellScale and has no internal measurement capabil-
ity. One 9850 can read the output of many CellScales, and 1 CellScale can also provide data to many 9850's. The
backlit, alphanumeric graphic display provides precise, unambiguous indication of operating modes such as Net,
Gross, or Total. The 9850 can calibrate a CellScale remotely and provides a user interface to the advanced features
of the CellScale. The CellScale system is digitally calibrated from either the 3750CS Indicator, the MSI-9850
Advanced Indicator, a 9850 Indicator, or with a terminal program hooked directly to the CellScale model 9000.
The 9850 combined with a CellScale is designed to meet or exceed the requirements of all regulatory agencies.

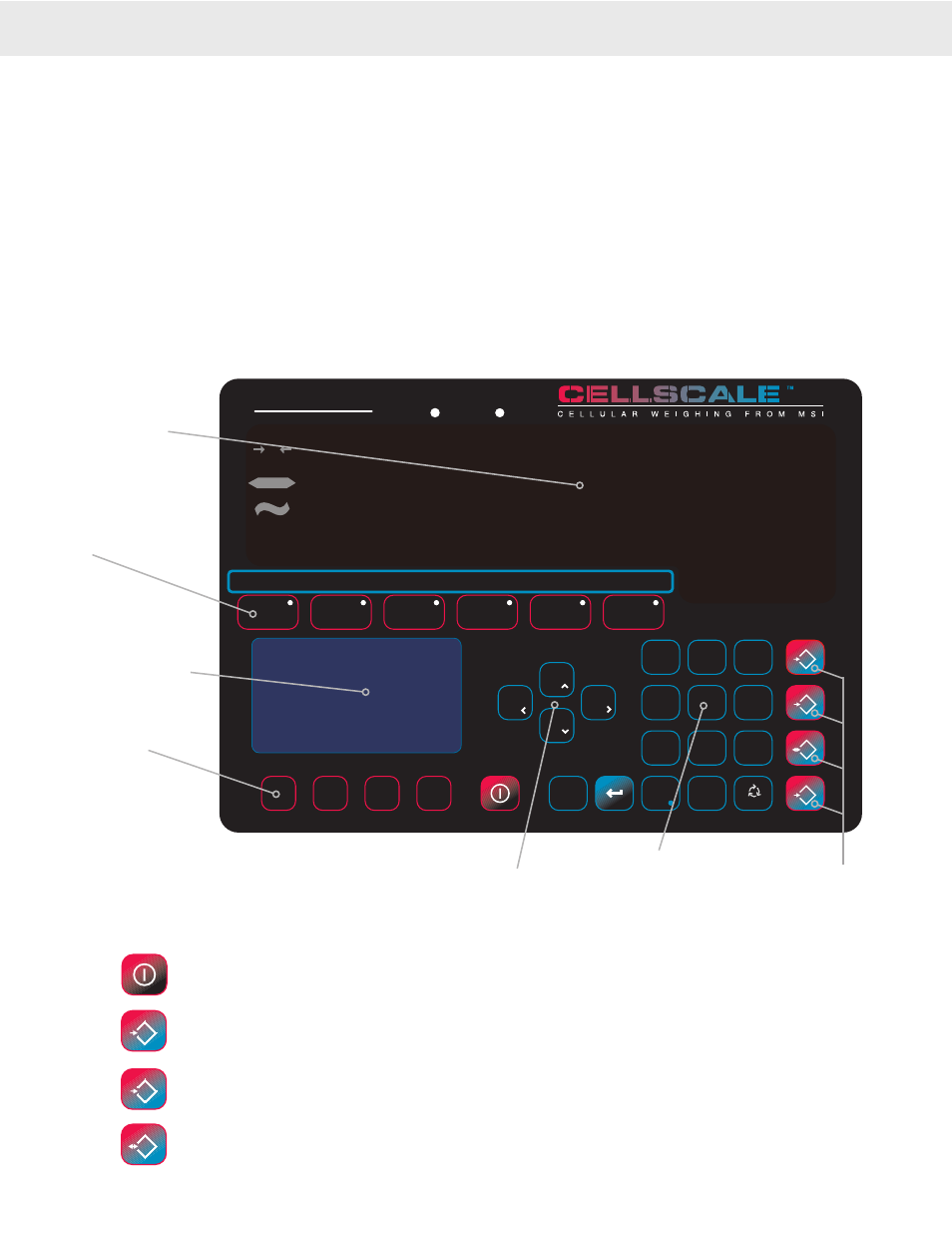

MSI-9850 FRONT PANEL
POWER
ZERO
0
TARE
T
NET/GROSS
B/G
The
POWER
key turns the 9850 On and Off. The
POWER
key must be held for 1 second to ensure startup.
The
ZERO
key is used to zero out residual weight on the scale.
The
TARE
key is used to zero out the weight of containers, trucks, or carriers and to place the scale in the Net weight
mode.
The
NET/GROSS
key allows the operator to alternate the weight display from Net (Tared) weight to Gross weight. In
some Legal-for-trade jurisdictions, the Gross weight display is limited to 3 seconds.
�����������������������������������������������������������������������
�������������������������������������
�������������������������
�
9850
Measurement Systems International
Seattle, Washington
U.S.A.
��������
TARE
ZERO
SETUP
NET/GROSS
�
ABC
�
DEF
�
GHI
�
PQR
ESC
!
T
B/G
0
A
a
1
�
SPACE
EXIT
�
STU
�
VWX
�
@YZ
�
MNO
�
JKL
POWER
ID
CHANNEL
CLEAR
�
ENTER
F7
F8
F9
F10
DATA 1
DATA 2
DATA 3
RF ADDR
SEND / PRINT
TOTAL
VIEW TOTAL
DISPLAY
�����
������
���
�����
����
���
���
���
F1
F2
F3
F4
F5
F6
LO BATT
AW502433 Rev A.
2/2/2005
FH10
Six User Programmable
Illuminated Function
Keys
6 Digit 1.2” High Bright-
ness LED Display
8 Line x 21 Character
Information Display
4 User Progammable
Function Keys
Cursor Keys
Scale Control Keys
Data Entry Alpha-
numeric Keypad
