Page 20 MSI-9850 RF Remote Indicator • User Guide
MSI-9850
HANDHELD RF REMOTE INDICATOR for
C
ELL
S
CALE
®

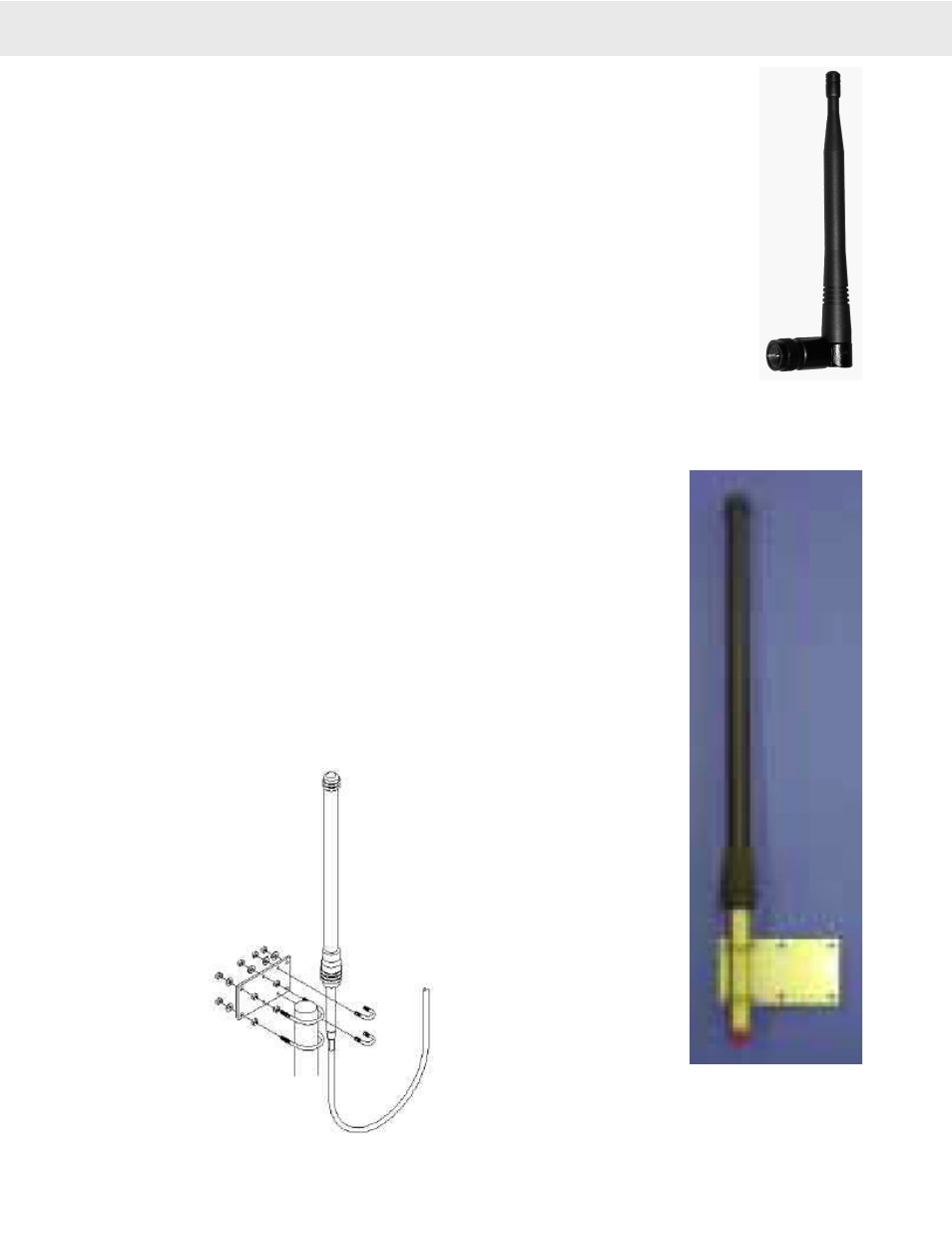

STANDARD ANTENNA
The Standard Antenna (pictured here) is an articulated 1/2 wave 2dBi gain design with a standard TNC
connector. This antenna and Coax connector, though resistant to water, is not water-proof. Seal the
TNC base with an adhesive heat shrink boot if this antenna is exposed to water. This Antenna should
be vertically oriented.
LONG RANGE OMNI 9dBi ANTENNA W/ PIPE MOUNT
The Long Range Omnidirectional antenna (MSI P/N 12147) is pole
mounted (up to 2” diameter) and extends the range of CellScale transmis-
sions. MSI supplies this antenna with a 10’ (3m) coax cable pre attached.
This antenna must be vertically mounted. The vertical Beamwidth (-3dB
point) is 14 degrees. Also available with an N connector (MSI P/N 12037)
for applications requiring longer coax cable lengths.
