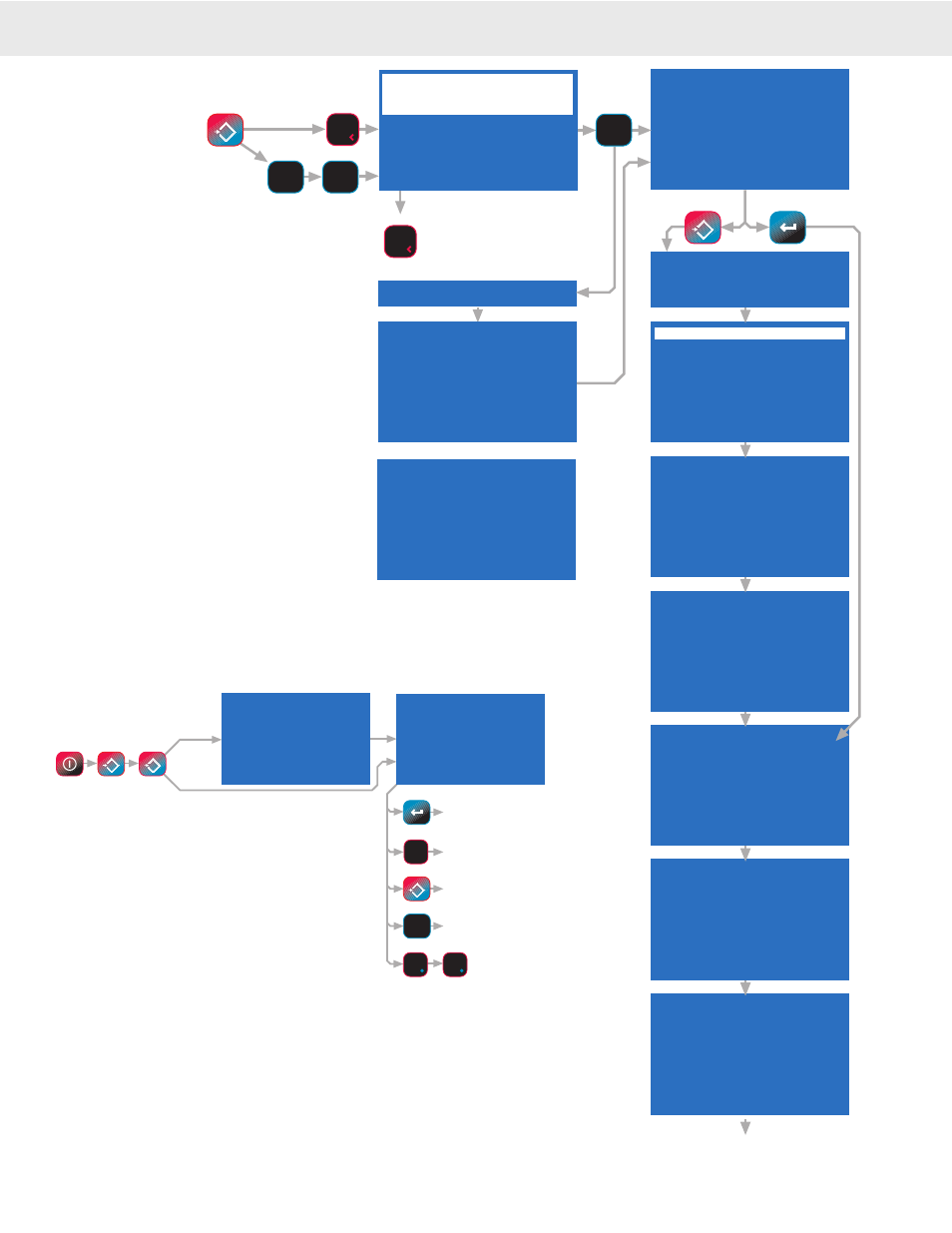

Page 108 MSI-9850 RF Remote Indicator • User Guide
MSI-9850
HANDHELD RF REMOTE INDICATOR for
C
ELL
S
CALE
®
CALIBRATION
ENTER CAPACITY
ESC exits no change
ENTER saves value
0-9 replaces value
17
min = 2, max =999999
^ incs, v decs value
CHANNEL / CALIBRATION
--Channel Name--
--Chn-- --Index--
1 Channel is ACTIVE
2 Filter LOW
3 Calibrate Settings
4 Start Calibration
5 Zero RUSure Msg ON
ENTER to
Recalibrate
CLR to Reset Cal
ESC to Exit Cal
CALIBRATION UNITS
1 Pounds
2 Kilograms
3 Tons (US Short)
4 Metric Tons
5 DekaNewtons
6 Ounces
7 Grams
Changes to the
next Channel
available
SCALE DIVISIONS (d)
-Pounds-
1 1 7 0.1
2 2 8 0.05
3 5 9 0.02
4 10 0 0.01
5 0.5 F3 0.005
6 0.2
ZERO CALIBRATION
Unload scale. Press
ENTER when stable.
ESCape ends Cal.
SPAN CALIBRATION 1
Scale = -XXXXXXX-
Cal Wt 1 = -XXXXXXX-
0-9 New Cal Weight
When loaded & stable
press ENTER to Cal
ESCape to end Cal
SPAN CALIBRATION -2-
Scale = -XXXXXXX-
Cal Wt 2 = -XXXXXXX-
0-9 New Cal Weight
When loaded & stable
press ENTER to Cal
ESCape to end Cal
RESETING
CALIBRATION
Up to 9 Span Points
Shortcut
4 CalibrationDisabled
CALIBRATION
DISABLED, CYCLE
CELLSCALE POWER
TO CONTINUE
OR
CALIBRATION UNITS
CHANNEL / CALIBRATION
--Channel Name--
--Chn-- --Index--
CALIBRATION LOCK
PRESS SEALSWITCH
ON CELLSCALE TO
CONTINUE
If Disabled (Sealed)
ESC
!
SETUP
F2
CHANNEL
1
ABC
7
STU
F2
CHANNEL
ZERO
CLR
0
ENTER
4
JKL
To return to the
startup screen
To return to the
weight display
To Clear All Setups
back to defaults
To cancel the
Clear to defaults
To Reset the RF Modem
back to defaults
Len 0 F4 Menu
Max 14 ENT Save
Pos 1
ENTER PASSWORD
ARE YOU
SURE
POWER
Any Key
If a
Password
is Set
No
Password
ENTER to
Clear All
SEND to
Reset RF
ESC
!
SETUP ZERO
CLR
0
ESC
!
SETUP
DISPLAY
EXIT
IN
F3
SEND/PRINT
ENTER
DISPLAY
EXIT
RESET ALL OR RESET RF MODEM
Go to Index
