In the example, the

Now turn right

Now turn right

announcement is made 150 ft. before the

change of direction.
The display is split into two halves, as in the

announcement phase.
Once the change of direction is completed,

COMAND automatically switches back to full-

screen display.

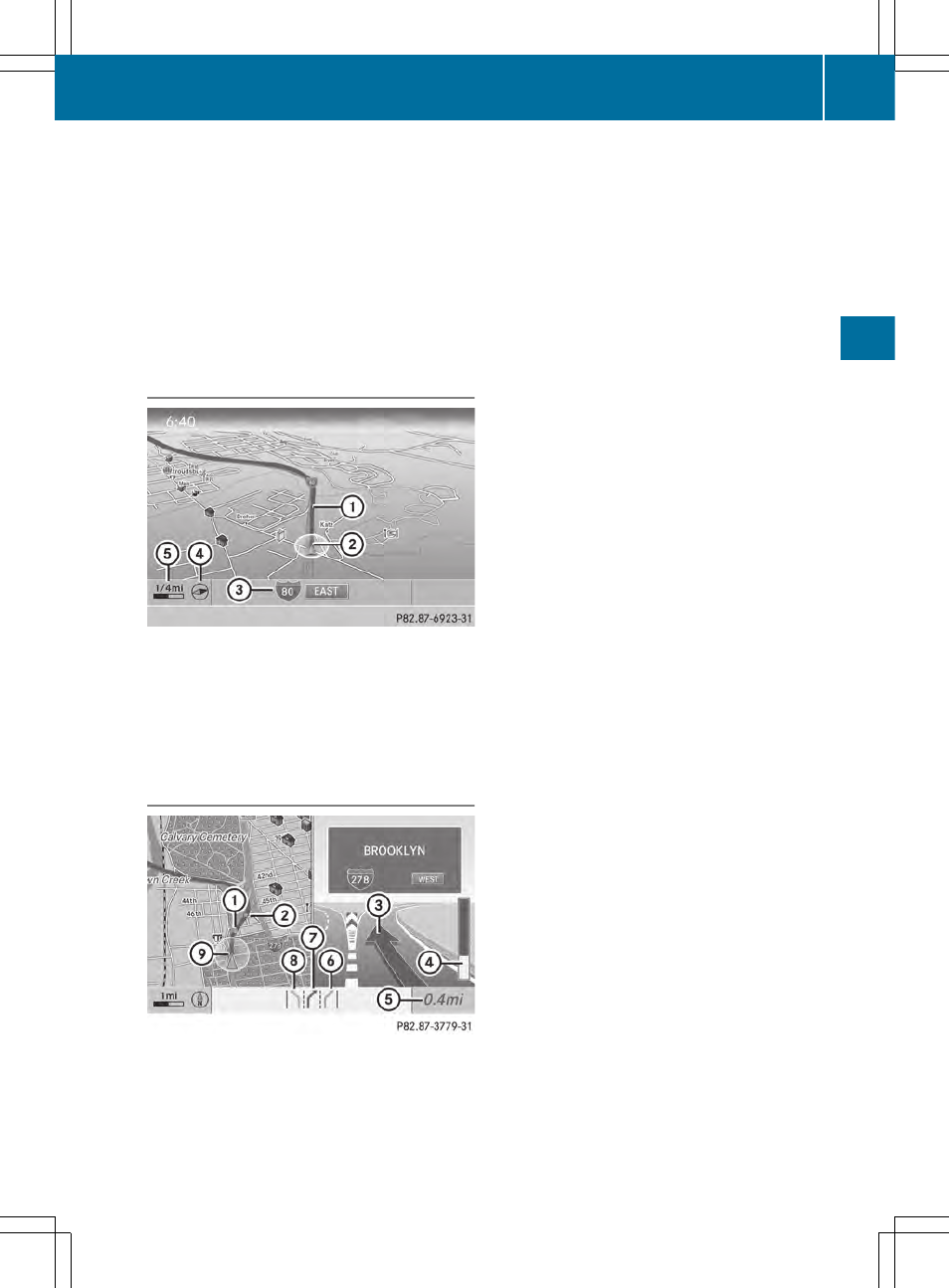

Example of a display without changes

of direction

:

Route (highlighted in blue)

;

Current vehicle position

=

Current road

?

Map orientation selected

A

Map scale selected

Lane recommendations

Example: lane recommendations
:

Point of the next change of direction

;

Point of the change of direction after next

=

Next change of direction (in this case, turn

off to the right)

?

Graphic representation of the distance to

the next change of direction

A

Distance to the next change of direction

B

Possible lane (light blue)

C

Recommended lane (dark blue)

D

Lane not recommended (gray)

E

Current vehicle position: the tip of the

triangle indicates the vehicle’s direction

of travel

On multi-lane roads, COMAND can display

lane recommendations for the next change of

direction. The corresponding data must be

available in the digital map.
COMAND displays lane recommendation C,

based on the next two changes of direction.

The number of lanes applies to the point at

which the next change of direction is

required.

i

The multifunction display also shows lane

recommendations.
Only the recommended lanes are displayed

here, see the separate vehicle Operator's

Manual.
