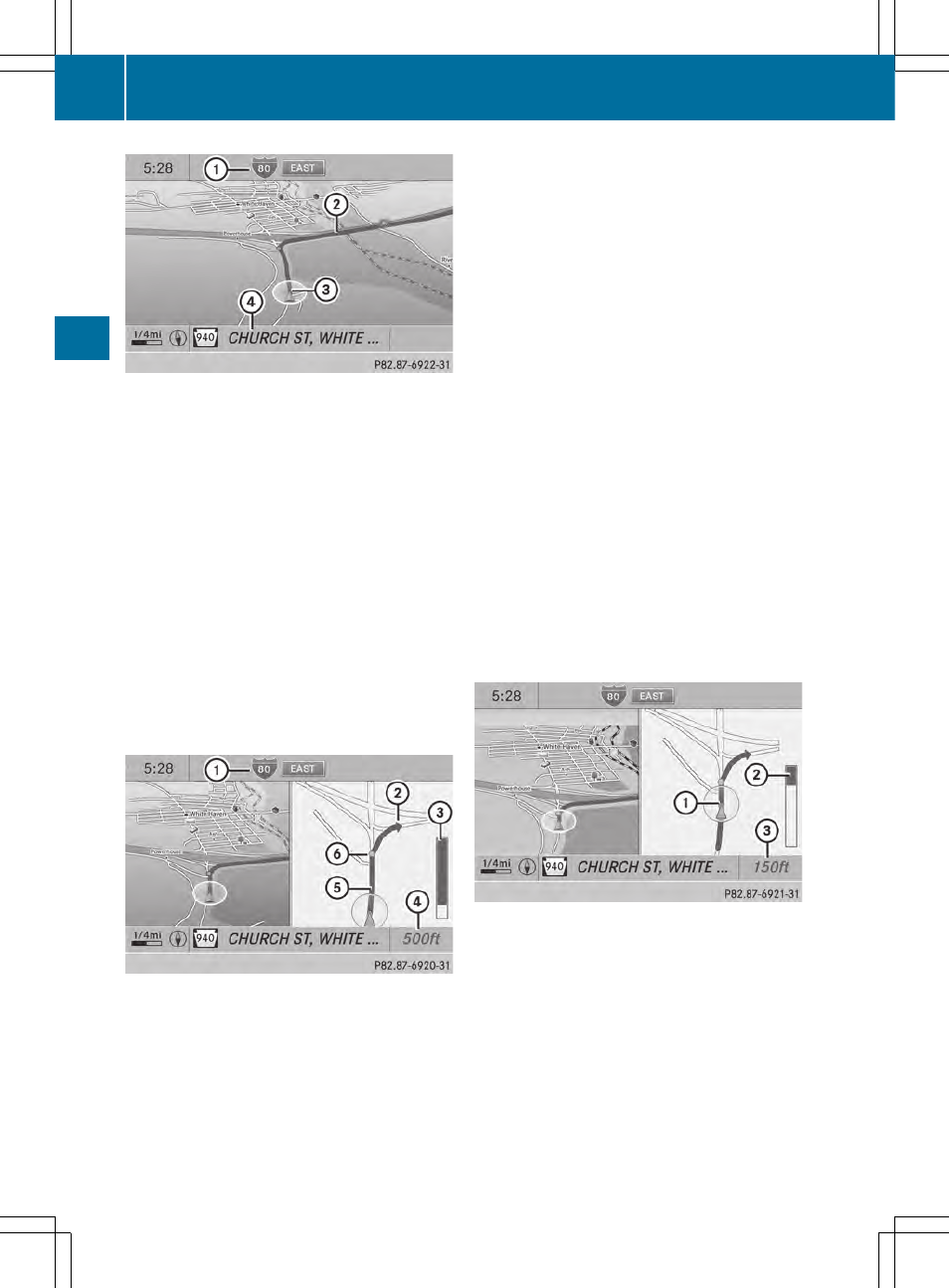

Example: preparation phase
:

Next road

;

Point at which the change of direction

takes place (light blue dot)

=

Current vehicle position (the tip of the

triangle indicates the vehicle’s direction

of travel)

?

Current road

Display ? depends on the setting selected

for "Map information in the display"

(

Y

page 106).

COMAND prepares you for the upcoming

change of direction. Based on the example

display below, the change of direction is

announced by the

Prepare to turn

Prepare to turn

right

right

message. You see the full-screen map.

Example: announcement phase
:

Next road

;

Change of direction (turn right here)

=

Graphic representation of the distance to

the next change of direction

?

Distance to the next change of direction

A

Route (highlighted in blue, shown in both

the left and right displays)

B

Point at which the change of direction

takes place (light blue dot, shown in both

the left and right displays)

i

The filled-in section of visual display for

distance = gets shorter the nearer you get

to the announced change of direction.

COMAND announces the imminent change of

direction. Based on the example display

below, the change of direction is announced

beforehand by the message:

Please turn

Please turn

right in 500 ft. and follow the

right in 500 ft. and follow the

.

The distance announced before the next

change of direction depends on the type of

road and its permissible maximum speed.
The display is now split into two sectors. In

the left half, you see the normal map view.

The right half shows an enlarged section of

the area around the intersection (Crossing

Zoom) or a 3D image of the road's course with

the route indicating the next maneuver.

Example: change-of-direction phase
:

Current vehicle position (the tip of the

triangle indicates the vehicle’s direction

of travel)

;

Graphic representation of the distance to

the next change of direction

=

Distance to the next change of direction

COMAND announces the imminent change of

direction.
