Configuration and Activation 6-43

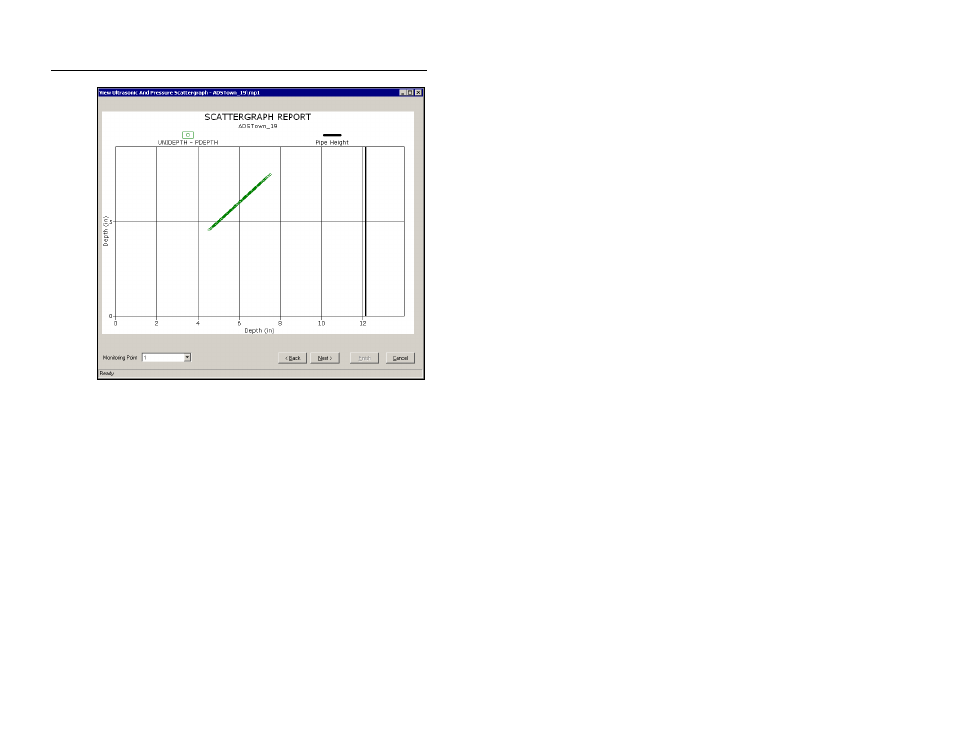

View Ultrasonic and Pressure Scattergraph – [location name] dialog
9. Review the data on the scattergraph, and then click on the Next
button. A properly performing pressure depth sensor should
display a one-to-one relationship with the UNIDEPTH data.
The Site DR Analysis – [location name] dialog displays the results
of the site data review analysis of the collected data and any
recommendations for resolving identified issues.
