6-42
ADS FlowShark Manual

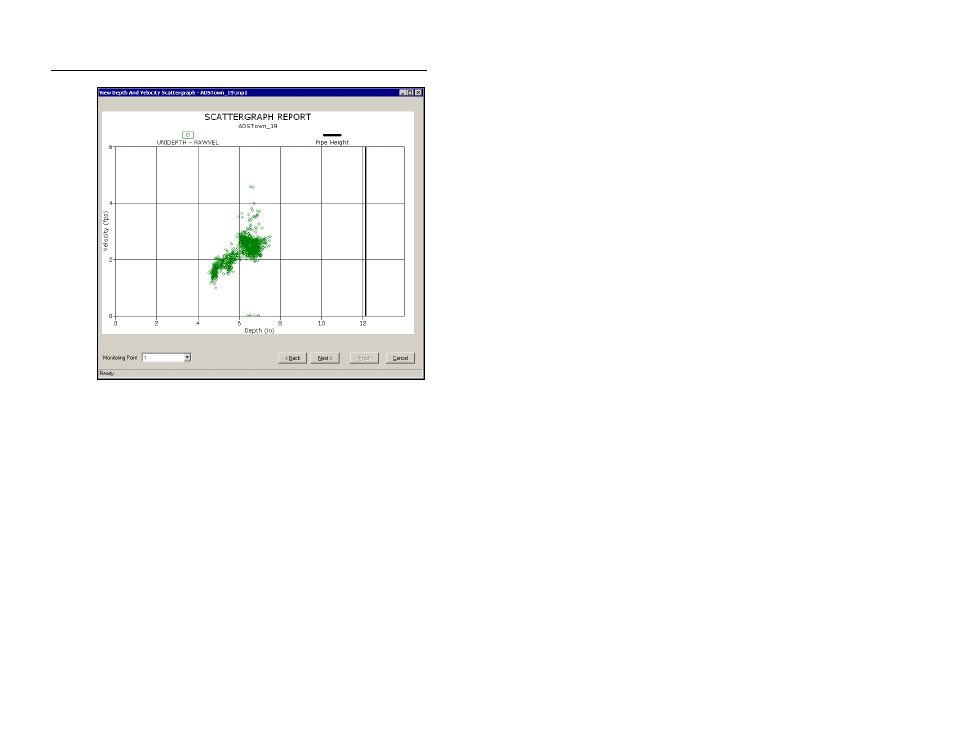

View Depth and Velocity Scattergraph – [location name] dialog
8. Review the data on the scattergraph, and then click on the Next
button. Under optimal conditions, the data on the graph should
reveal velocity increasing with depth.
The View Ultrasonic and Pressure Scattergraph – [location name]
dialog displays the collected ultrasonic and pressure depth data in
scattergraph format.
