Communication 4-27
 Run the antenna cable through the hole from the top of the
bracket until the antenna rests flat on the bracket.
 Secure the antenna to the bracket using two cable ties, and
then secure the cable down a vertical portion of the bracket
using cable ties.

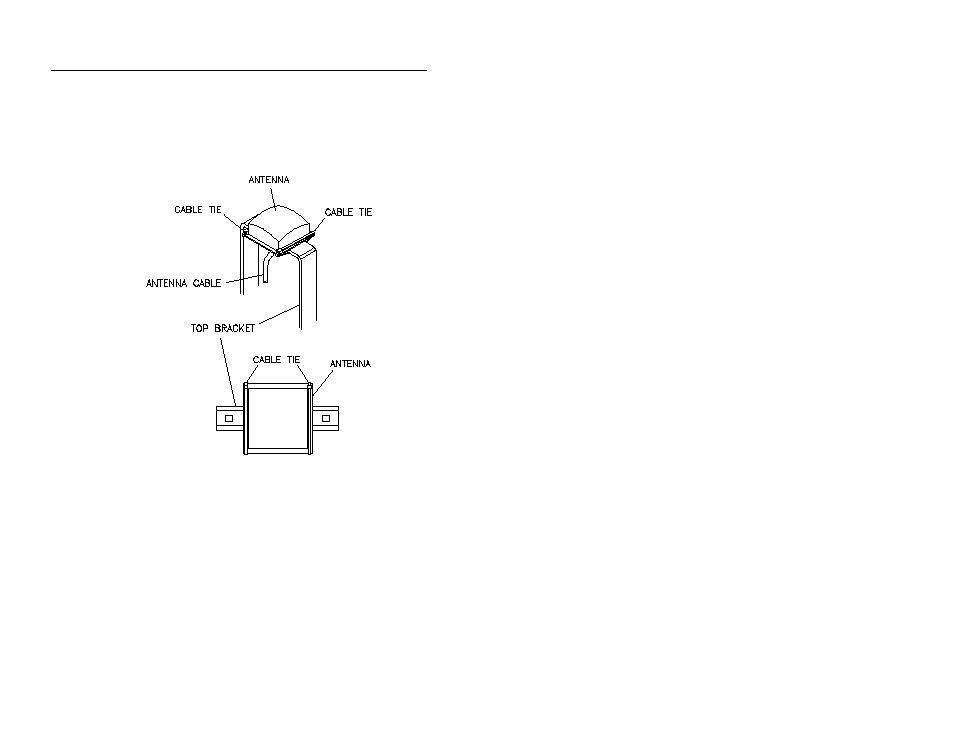

Using cable ties to secure antenna and cables to bracket assembly
 Tape up the connector on the end of the antenna cable with
the rubber stretch tape to protect it from damage and debris
during installation.
3. Determine the appropriate location to install the pedestal based
on the following factors:
 Locate the pedestal between 3 to 10 feet from the manhole
in which the monitor is installed.
 Evaluate the most suitable location for the service pedestal
and the most appropriate route for running the cable.
Pedestal location and cable route evaluation criteria may
