Connecting the VoiceSupport Unit to the Telephone System
The Port Card
2-2 VoiceSupport LX System Guide
Chapter 2 Installation and Setup
Connecting the VoiceSupport Unit to the Telephone
System
The Port Card The port card used in the VoiceSupport LX unit is the Dialogic D/4PCIUF card
containing four ports of Voice, Fax, and Speech processing. If the Fax option was
installed at the factory, at least one port will already be configured as a Fax port.
The ports consist of RJ11 connectors that will accept standard modular telephone
cables.

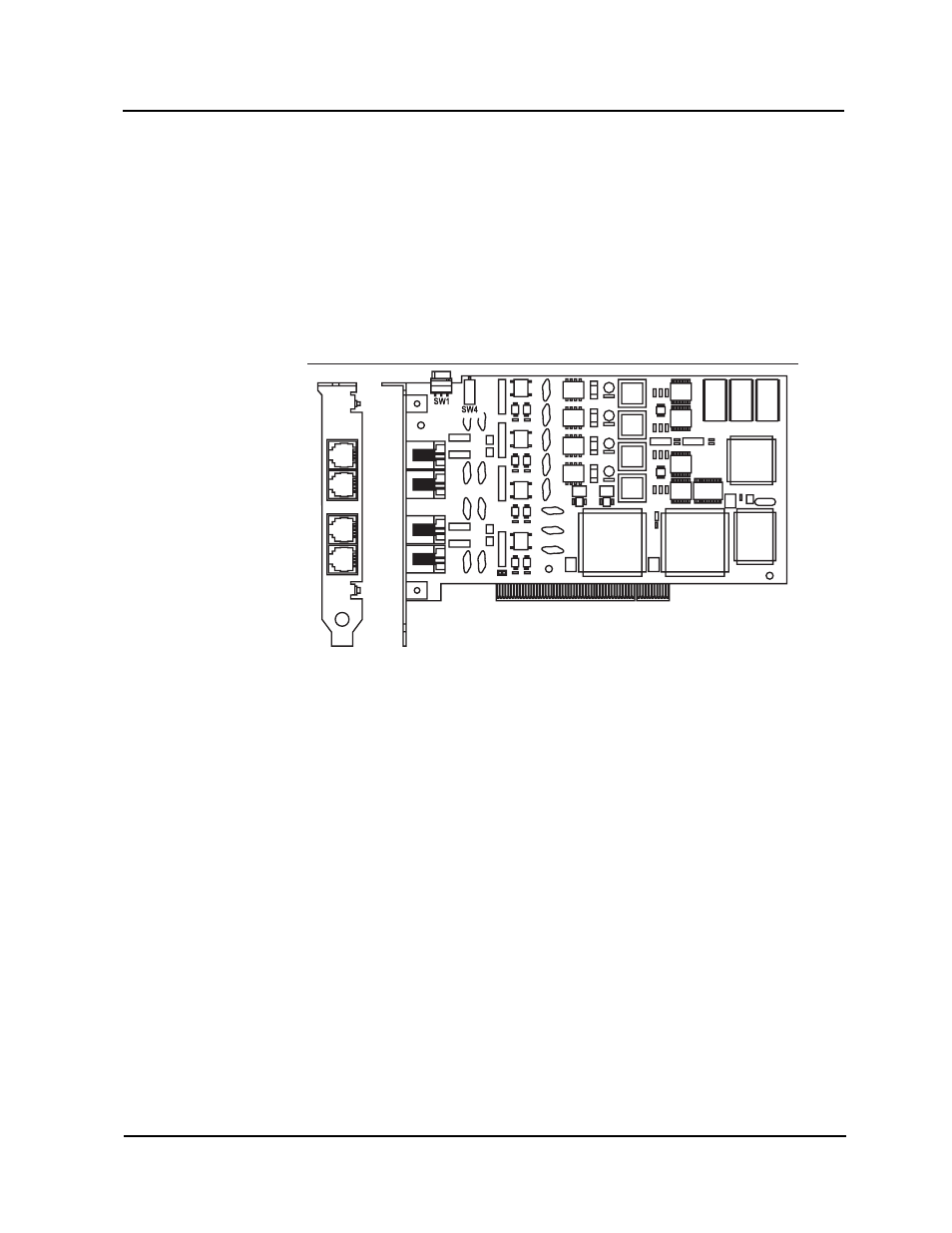

Figure 2-1: D/4PCIUF Port Card
Connect a modular cable from the VoiceSupport unit’s port card to the telephone
system interface starting with Port 1 (top).
Phone
System
Integration
The VoiceSupport is designed to operate with many different phone systems. The
VoiceSupport unit must be integrated with the specific system that it will be working
with. See the Phone System Integration Guide for a list of the required parameters
that must be set. Also refer to the documentation that came with your Phone
System.
