7-8 DeviceNet Communications Module
7.5 ControlLogix Example
Data Format for a Read and Write Parameter
The data in this example is for an MD65 drive at node address 1.
Refer to section 7.2 for a description of the content in each box.
Configuration Value Description Refer to . . .
Service Code
Object Type
Object ID
Object Attribute e (hex)
f (hex)
39 (dec)
1 (hex) Get_Attribute_Single
Parameter Object
Parameter Address
Parameter Value Page C-10
Page C-8
Page C-9

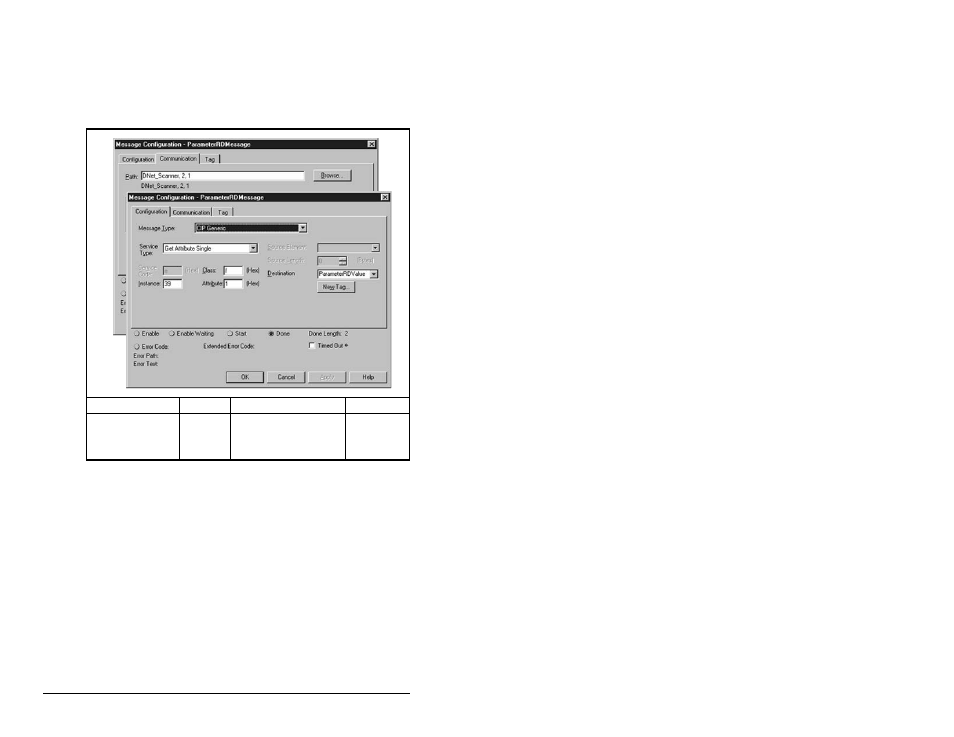

Figure 7.5 – Data Format for a Read and Write Parameter (1 of 2)
