4-6 DeviceNet Communications Module
4.3.4 Accessing and Editing Parameters
Parameters in the drive and module can be edited with RSNetWorx
using the procedure in table 4.5. The module parameters are
appended to the list of drive parameters.
Table 4.5 – Procedure to Access and Edit Parameters Using RSNetWorx
Step Action Icon
1. After creating an EDS file, right-click on the
icon for the MD65 drive and module and
select Properties. The MD65 Drive dialog
box appears.
2. Click the Parameters tab (figure 4.5). If an
EDS Editor message appears, click Upload
to load the parameter values in the drive to
the computer.
Parameters are displayed in numerical order
under Parameter. You can either scroll
through the list or select a specific group of
parameters in the Groups box. The available
groups and the numbers of the module
parameters will vary based on the type of
drive that is connected to the module.
3. In the Current Value column, double-click a
value to edit it.
4. Click Apply to save changes to the device.

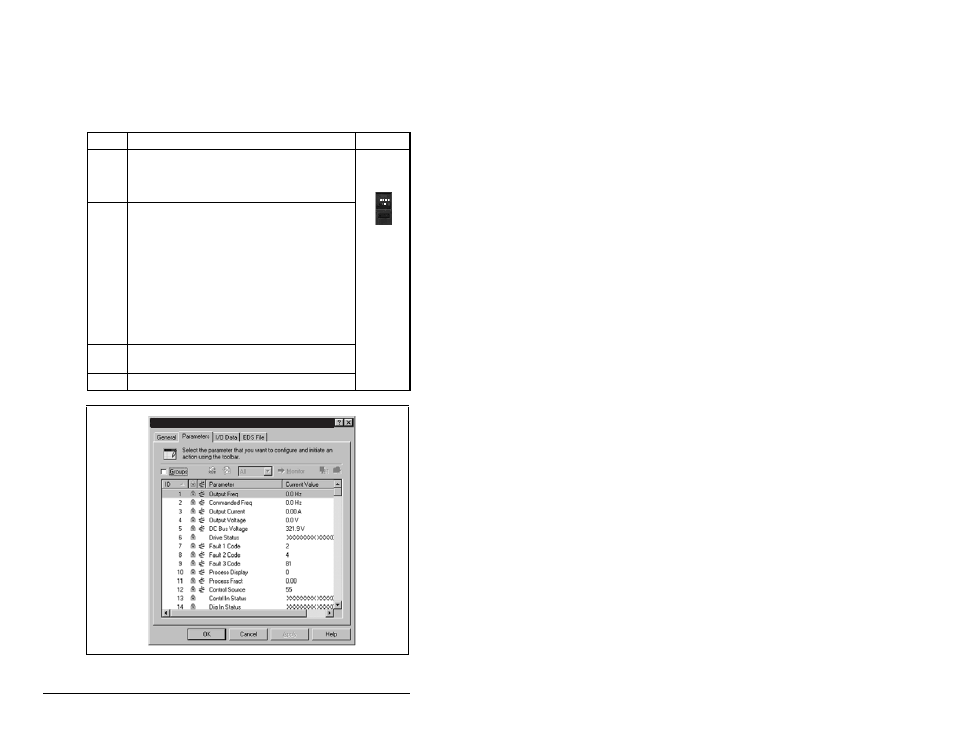

Figure 4.5 – Sample MD65 Drive Dialog Box (Drive Parameters Tab)
MD65
AC Drive
MD65 1P 110V 1.5HP
