Page 70
Chapter 4 Analyzing FactoryTalk Historian Classic Data
TIP
If you want to use the Configuration Console to chart a
calculation that is unique to your process, see "Customizing
RSBizWare Charts and Tables (page 87)".

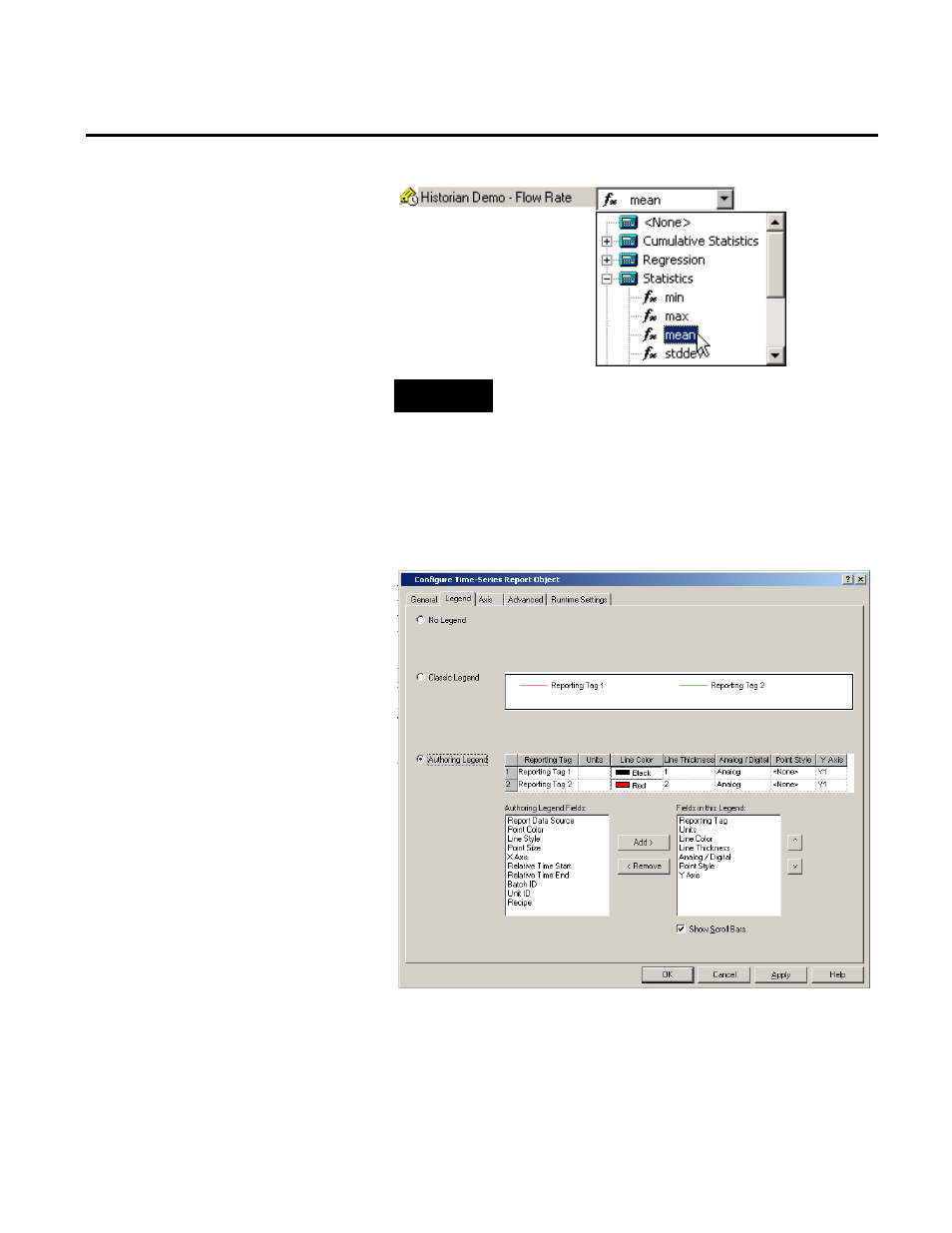

1. Click the Legend tab. This tab enables you to specify the type
of legend that will be shown on the time-series chart. For this
tutorial, accept the default Authoring Legend option.
The Classic Legend is the traditional legend with a color
sample and display name for each reporting tag or analysis tool
that is shown on the chart. If you use the classic legend, report
Step 5: Customize the Chart
Legend
70
Rockwell Automation Publication HIST-UM001K-EN-E-June 2014
