Rockwell Automation FactoryTalk Historian Classic User Guide User Manual
Page 28
Chapter 3 Collecting FactoryTalk Historian Classic Data

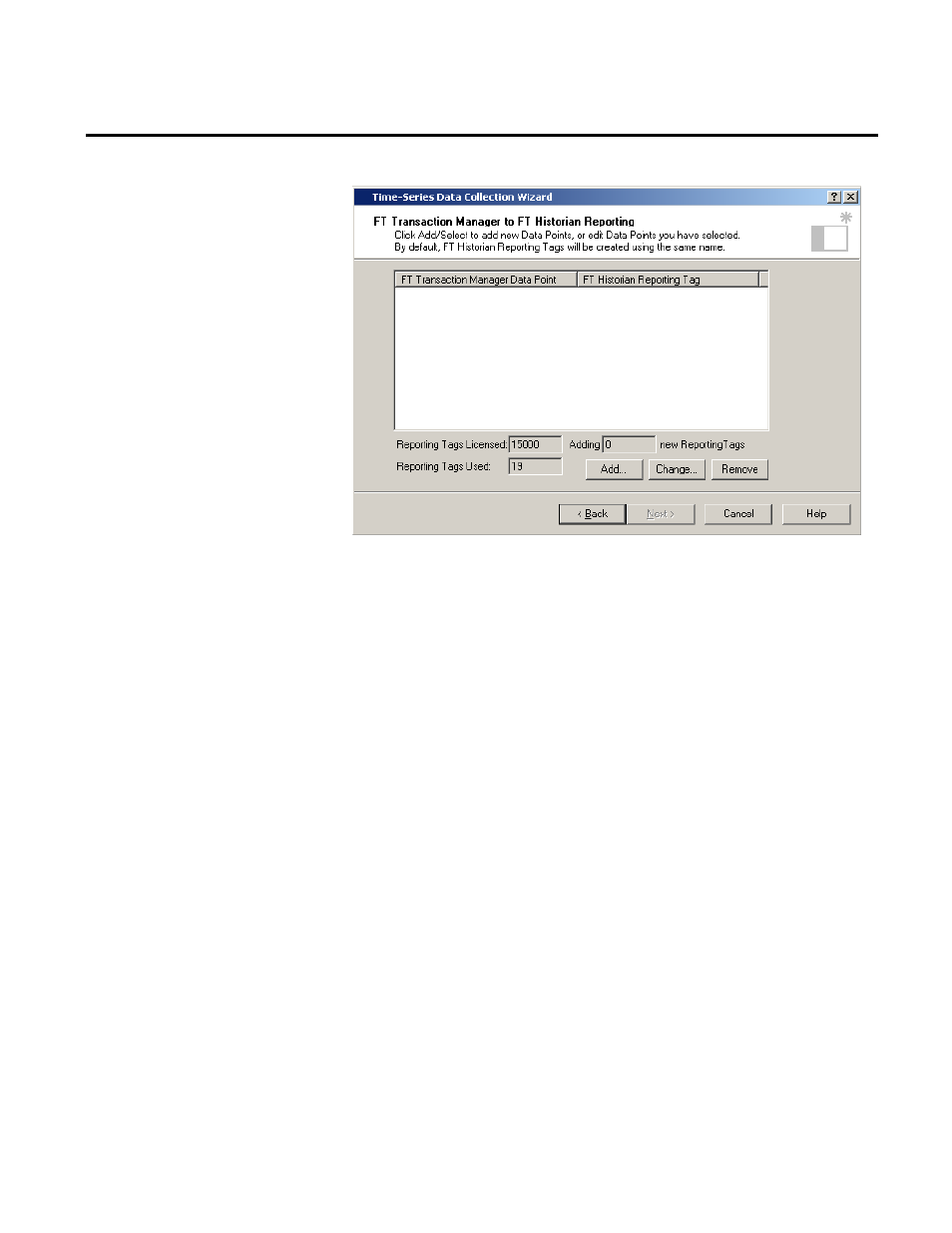

1. To select the data points from which data will be collected,
click the Add button. The Select FactoryTalk Transaction
Manager Data Points dialog that is displayed lists the data
points that exist in the FactoryTalk Transaction Manager
configuration. The top of the dialog is simply a set of tools that
you can use to filter the data point list.
28
Rockwell Automation Publication HIST-UM001K-EN-E-June 2014
