Page 119
Advanced Reporting Topics Chapter 6

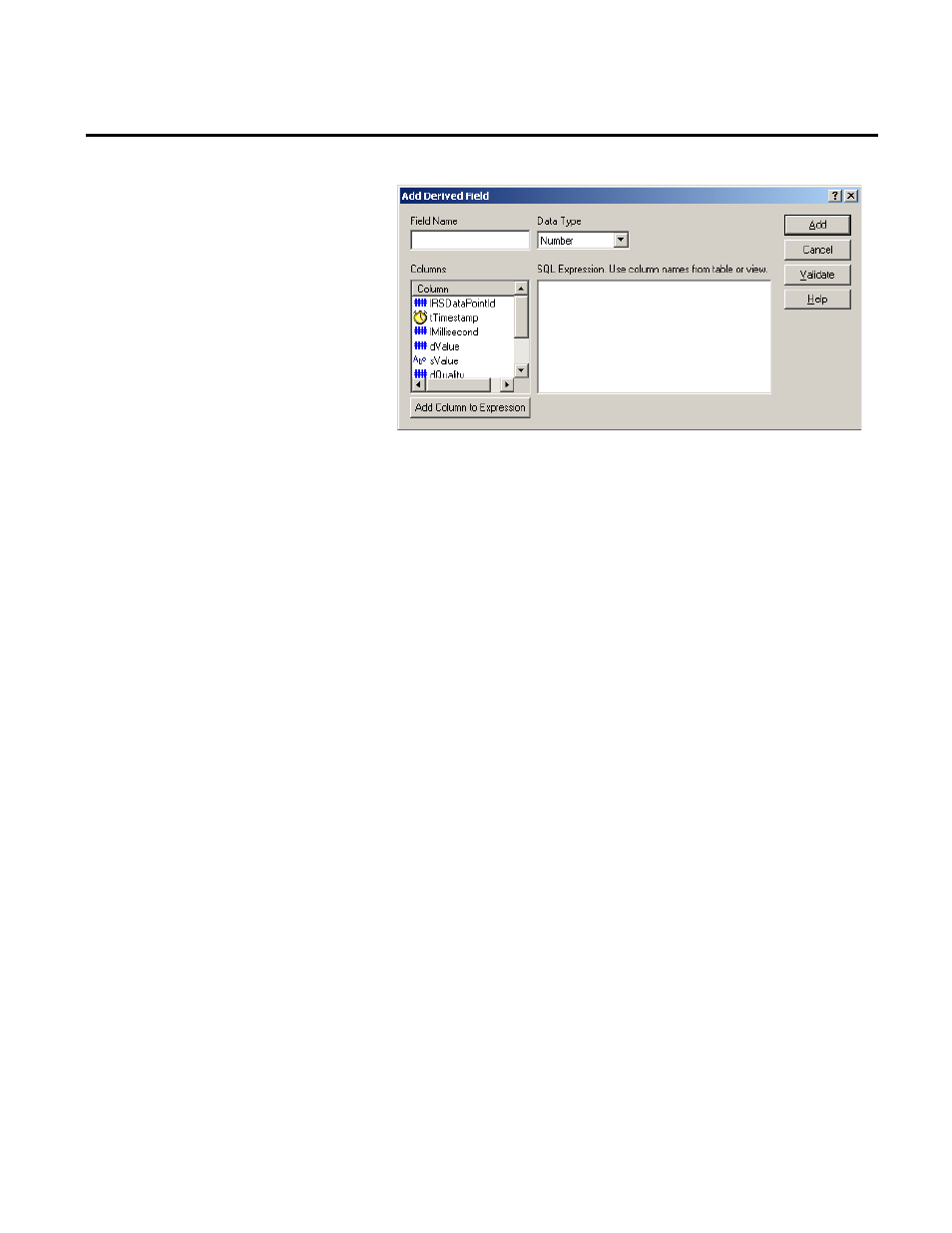

4. Enter a name for your new field and type the expression or
SQL statement that will be evaluated to produce the derived
field.
5. Click the Validate button to check for errors.
6. Click Add to return to the Report Data Source wizard. Your
derived field will be displayed in the Columns in Report Data
Source list.
7. Click Next to continue.
This step of the wizard allows you to pick the field from the Time
Selection Toolbar page that will be used to restrict the data in the
report object by date and time.
Step 5: Enable the Time
Selection Toolbar
Rockwell Automation Publication HIST-UM001K-EN-E-June 2014
119
