Chapter 4 Analyzing FactoryTalk Historian Classic Data

TimeStamp, and Value fields and then click

to add the

selected fields to the Fields in report list.
Each field that you add to the list will be a column in your text
report object.

3. Click Next.

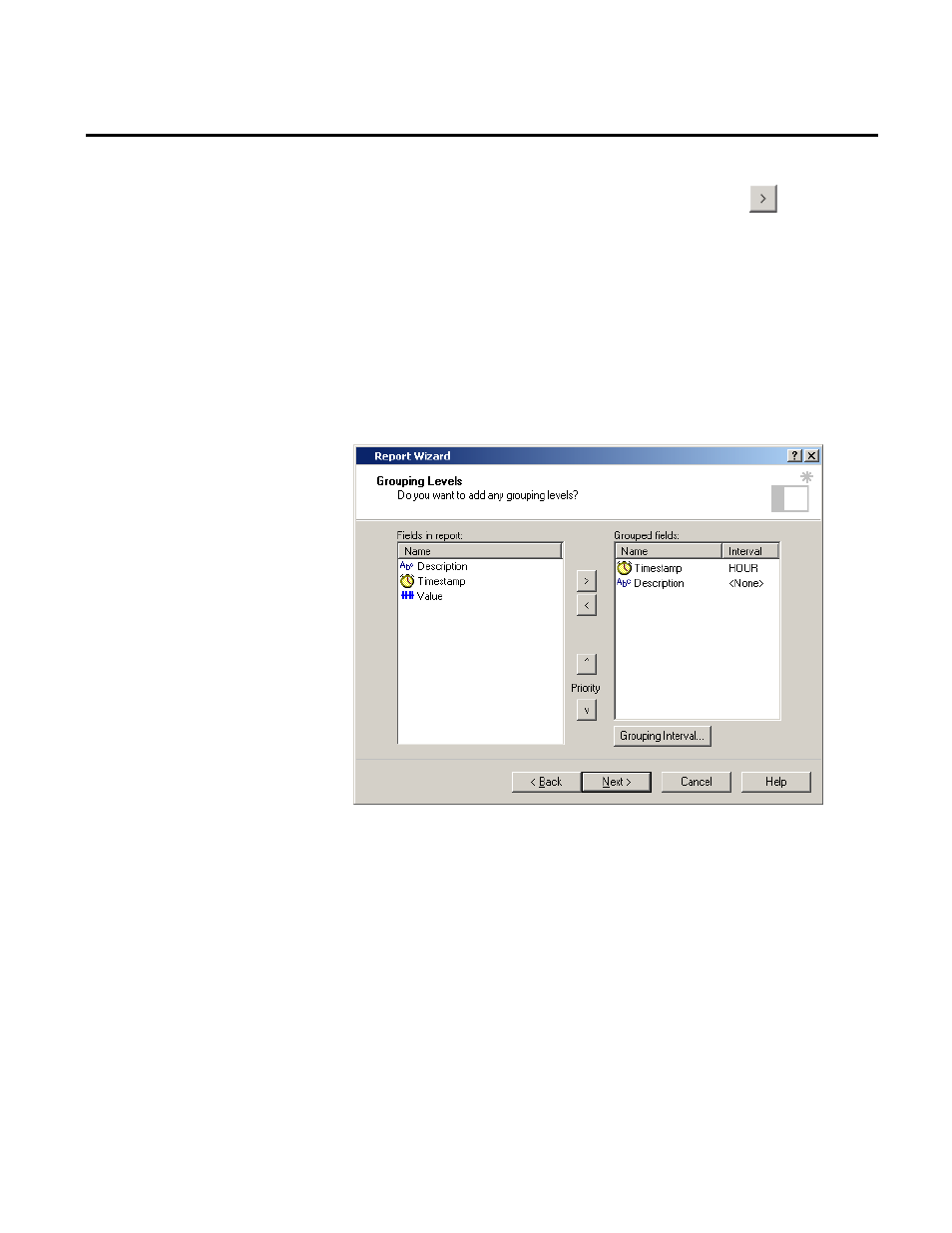

The Grouping Levels dialog box allows you to specify how your
table will be grouped.

1. The fields that we added to the table are listed in the box on

the left side of the dialog box. We can group by any of these
fields. For this tutorial, let’s group the records by TimeStamp
and data point. Select the TimeStamp and Description fields

and click the right arrow button (>) to add fields to the
Grouped fields list on the right side of the dialog box.

2. We want to force the report to group the records by Part first,

so let’s make sure the TimeStamp field is at the top of the
Grouped fields list. If it is not, select TimeStamp and click
the up arrow Priority button (^) until TimeStamp is at the
top of the list.

Step 3: Group the Records
