Chapter 3 Collecting FactoryTalk Historian Classic Data

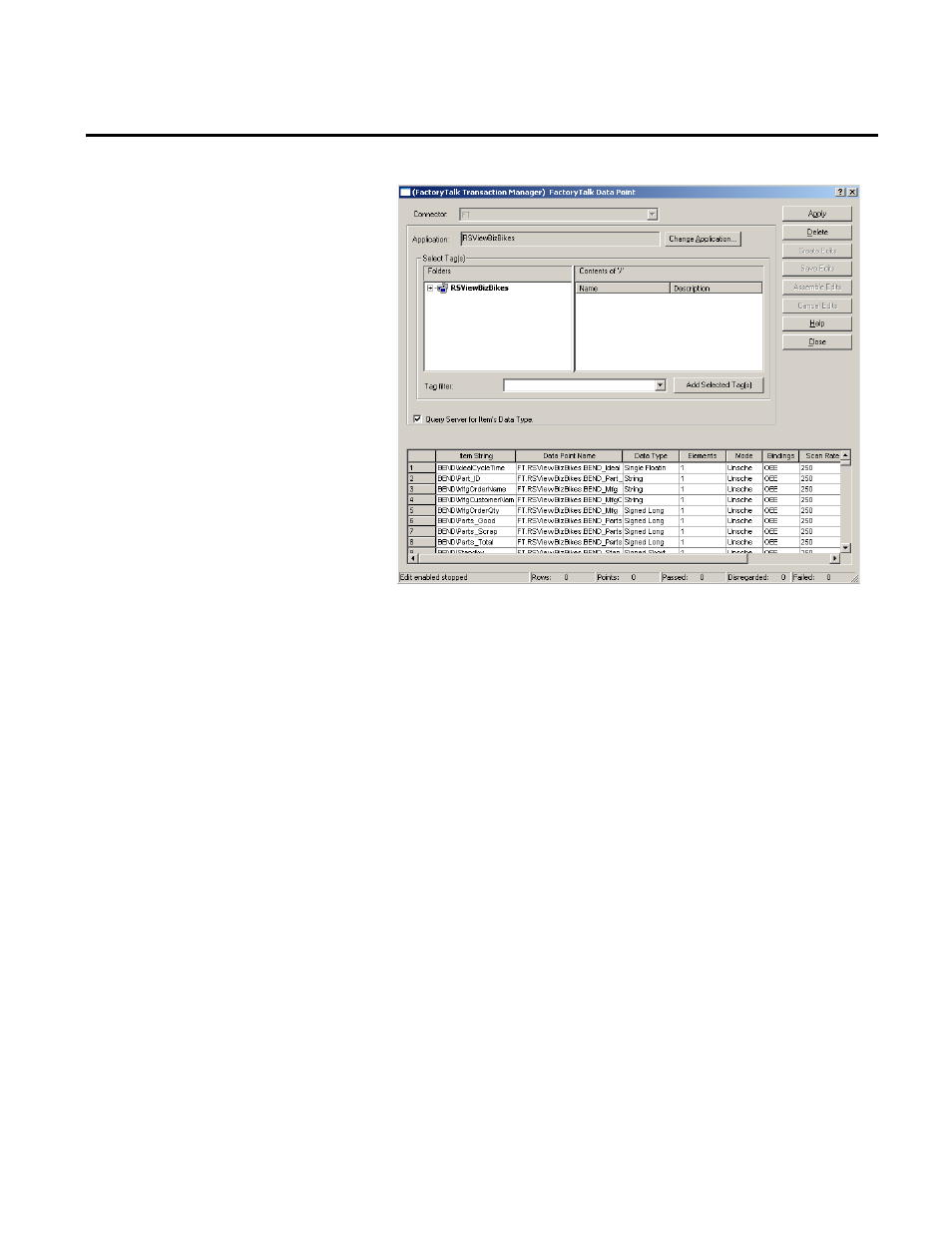

This dialog may look different depending on the type of
control connector that you selected. This dialog allows you to
add data points to the Control Connector and set their
properties.
3. If you were creating new tags from a running FactoryTalk
Transaction Manager configuration, you would select them by
selecting a category of tags from the Folders tree, selecting the
actual tags from the Contents of ‘/” list, clicking the Add
Selected Tag(s) button, and clicking the Apply button. For
now, click Close to exit the dialog and return to the Select
FactoryTalk Transaction Manager Data Points dialog.
4. Highlight the data points for which you want to collect data.
For this tutorial, select the BEND_Breakdown data point
(unscheduled) and the BEND_BreakdownCode data point
(scheduled). Click Select to return to the From FactoryTalk
Transaction Manager to FactoryTalk Historian Classic
Reporting Tags step of the Time-Series Data Collection
Wizard.
