Publication 8720MC-IN002A-EN-P — December 2002
Commissioning Your 8720MC SERCOS Interface Drive 1-3
Locating 8720MC
Connectors and Indicators 8720MC connectors and indicators are located as shown in figures 1.1
and 1.2 below. You must remove the front cover to gain access to the
control board.
Note: Only drives with the enclosure option (-AA) have a front cover.

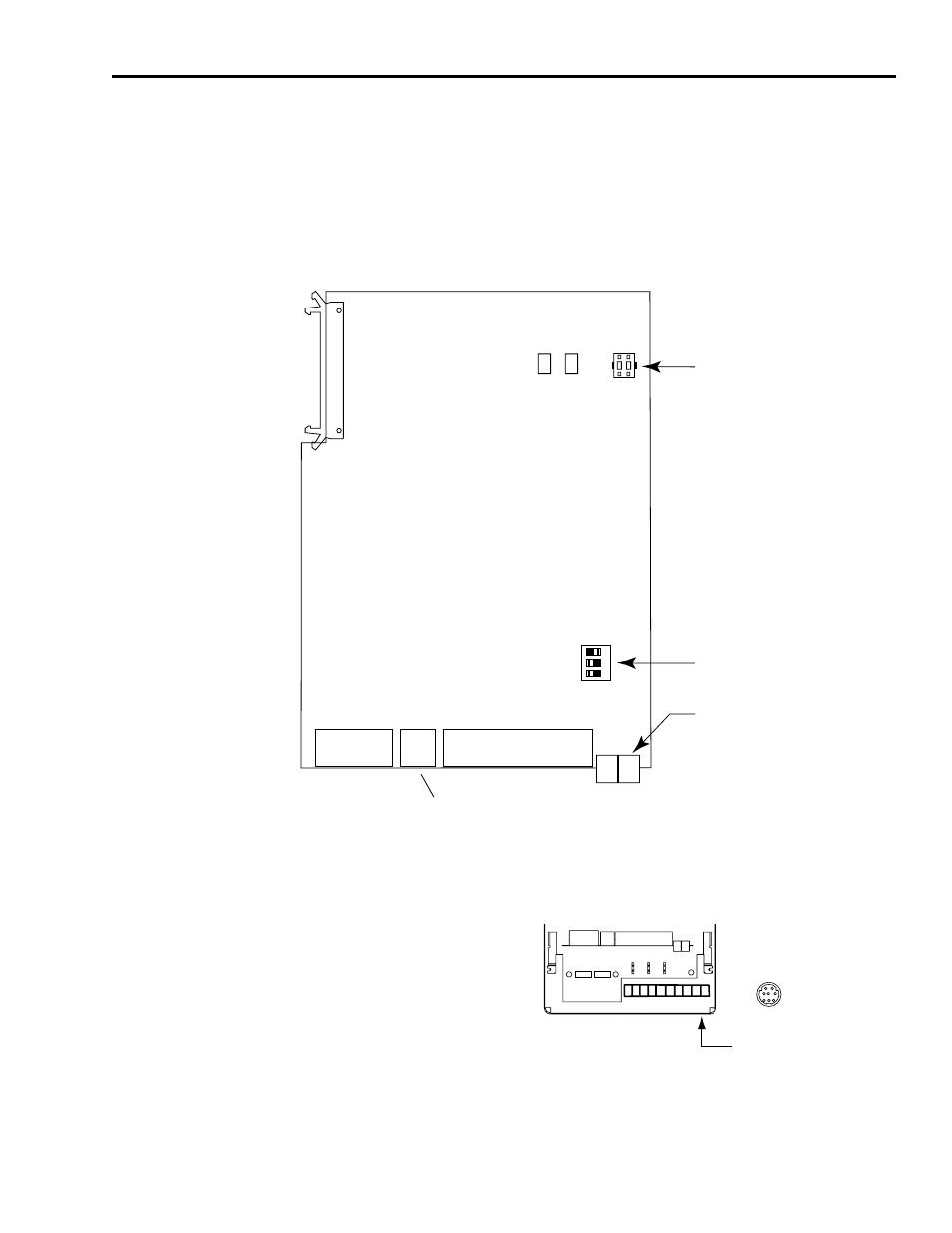

Figure 1.1
8720MC-xxxx Control Board Switches and Connectors
Figure 1.2
8720MC-xxxx DPI/SCANport
™ Connector
Note: Refer to the 8720MC Regenerative Power Supply User Manual
(publication 8720MC-RM001x-US-P) for 8720MC-RPS connector
and indicator locations.
TX RX
P1 P4 P5
1 2 3
ON OFF
Power Structure
Ribbon Connector
Drive Status
LED
SERCOS Network
Status LED
SERCOS Node
Address Switch
SERCOS Baud Rate
and Optical Power Switches
SERCOS Fiber-Optic
Connectors
Discrete I/O
Analog Outputs
and Registration Inputs
Motor/Aux Feedback and
Analog Commands
8720MC Control Board
P1 P4 P5
TB1
B-Frame Chassis
Shield
Clamps
DPI/SCANport
Connector
(facing down)
