Commissioning the Drive Chapter 5

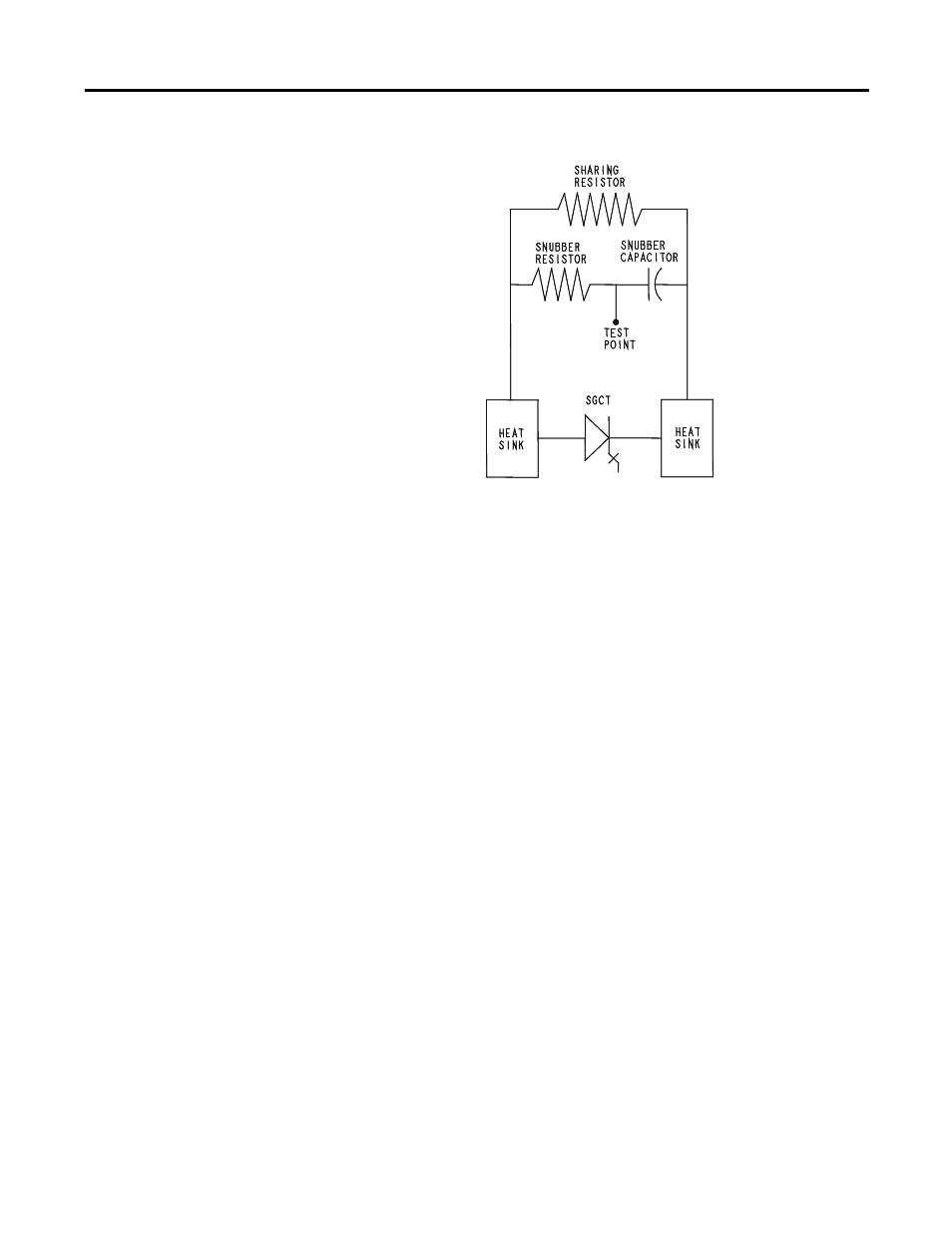

Figure 32 - SGCT Snubber Circuit Connections
If a device or snubber component is damaged, replace it following the detailed
procedures in the PowerFlex 7000 ‘B’ Frame User Manual’s “Component
Definition and Maintenance” section.
SGCT Anode-to-Cathode Resistance
Performing an Anode-to-Cathode resistance test not only tests the integrity of
the SGCT but also the integrity of the sharing resistor. An abnormal device
resistance measurement will indicate either a shorted device or damaged sharing
resistor.
