Rockwell Automation Publication 7000-IN006B-EN-P - May 2013 127
Printing and Uploading Drive Data Appendix B
Figure 71 - Selecting filename and directory
4. Once you create the empty file, close the Notepad program.
5. Run the HyperTerminal program.
6. On the ‘Connection Description’ window, enter a name (for instance,
Parameters) for the new connection as shown below, then click OK.

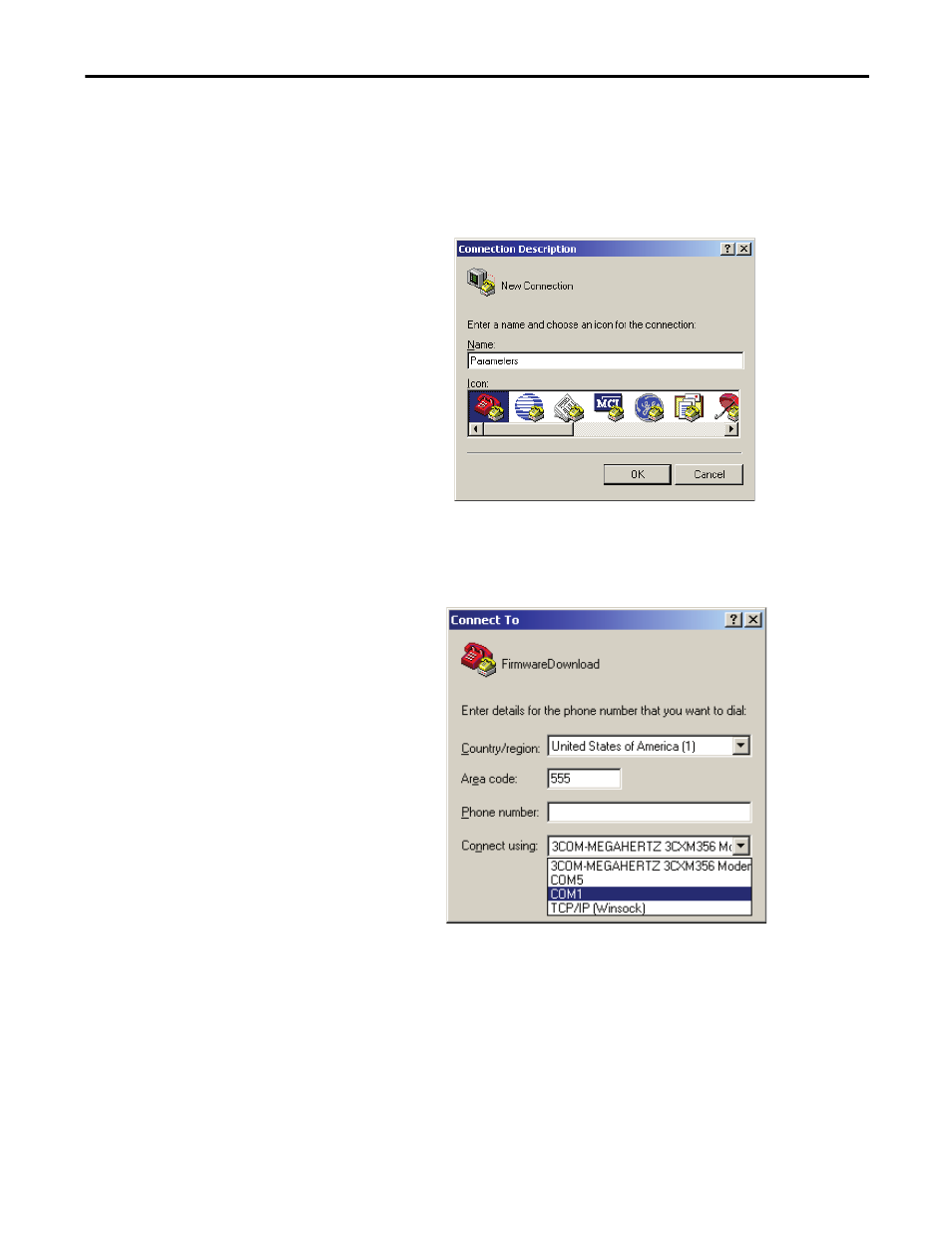

Figure 72 - HyperTerminal Connection Description window
7. In the ‘Connect to’ window, select COM1 from the drop list next to
‘Connect Using,’ then click OK.
Figure 73 - HyperTerminal connections, cont’d.
