28

Rockwell Automation Publication 7000-IN006B-EN-P - May 2013

Chapter 3 Initial Operator Interface Configuration

Top-Level Menu

This screen (

Figure 15

) provides menu access to all other operations. To select an

operation, press the corresponding softkey.

The menu screen identifies the drive and its overall operative state. Four digital
meters track selected drive parameters. A Hobbs meter displays the drive’s current
up-time.

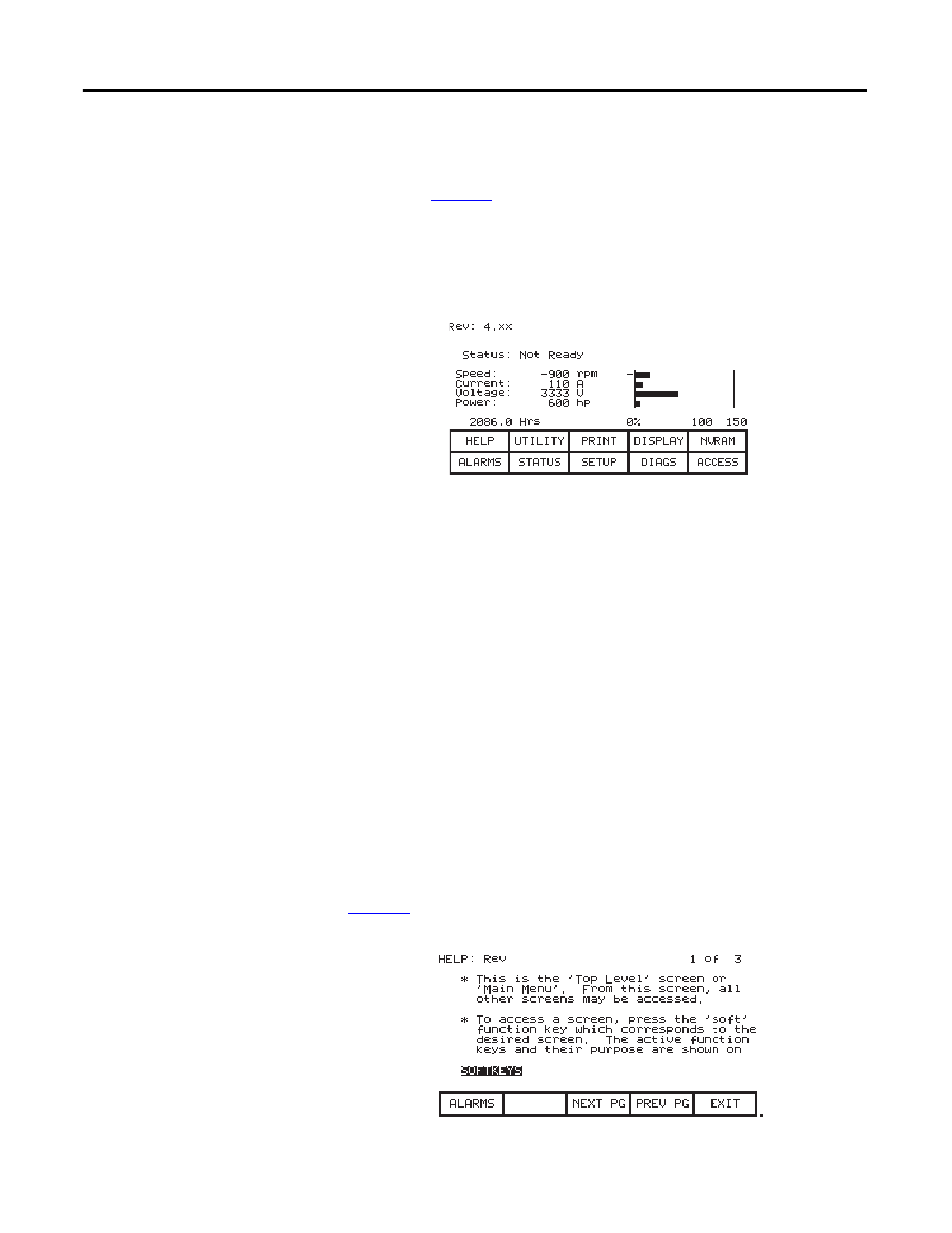

Figure 15 - Top-level menu

Status indicates one of the following:

• NOT READY—drive is not ready to start
• READY—drive will start on command
• FORWARD RN—drive is running in the forward direction
• REVERSE RN—drive is running in the reverse direction
• WARNING — drive has a warning
• FAULTED—the drive is faulted
• DISCHARGING—waiting for the input filter capacitor to discharge on

an Active Front End drive before re-start

Accessing the Help Function

Access the Help from any screen by pressing [F1]. After the screen name is the
name of the screen from which you called the Help function; in sample show in

Figure 15

, the Help call originated from the “REV” screen. If the Help screen

contains multiple pages, use [F8]and [F9] to navigate between the pages.
