Rockwell Automation Publication 7000-IN006B-EN-P - May 2013 135
Printing and Uploading Drive Data Appendix B

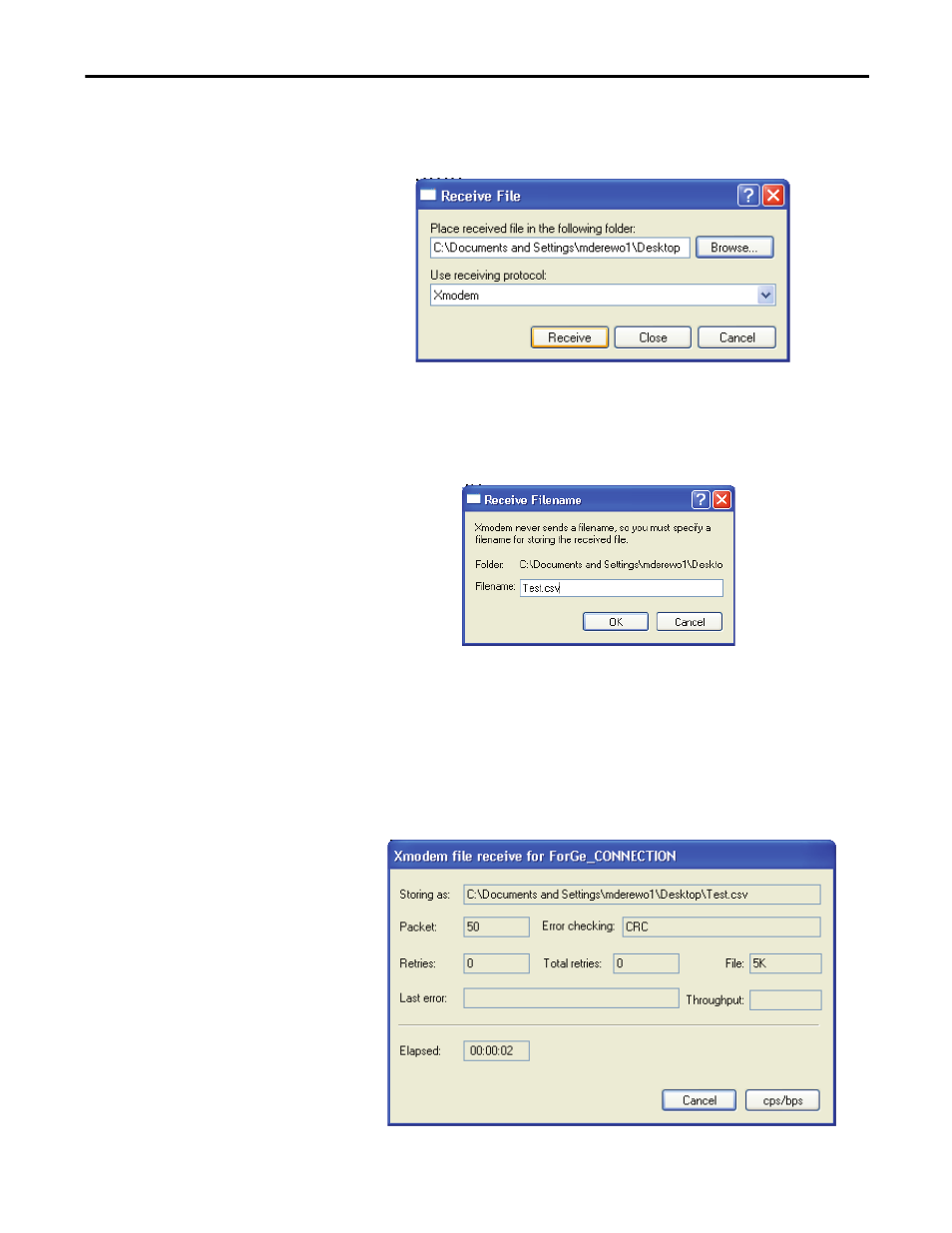

11. In the Receive File window, click Browse and select the directory to which
you want to save the data file. Ensure you set the Receiving Protocol to
Xmodem, then click Receive.
Figure 87 - HyperTerminal — Receive file transfer protocols
12. In the Receive Filename dialog, enter the file name, using the correct
extension as given in the options menu. For Control Data use “.bin”; for all
other data use “.csv”. Click OK.
Figure 88 - HyperTerminal — Receive file name/extension
HyperTerminal provides a dialog box to track the the file transfer progress. When
the data transfer is complete, the above dialog box closes automatically. Once you
have printed all the data files, close the HyperTerminal program and unplug the
null-modem cable from the DPM board.
