30

Rockwell Automation Publication 7000-IN006B-EN-P - May 2013

Chapter 3 Initial Operator Interface Configuration

• viewing the revision levels of all software in the drive line-up.
• transferring data between the operator interface ‘flash’ memory, ‘flash’

memory card and the drive.

• loading a new language module.

Access the Utility mode from the top-level menu by pressing [F2].

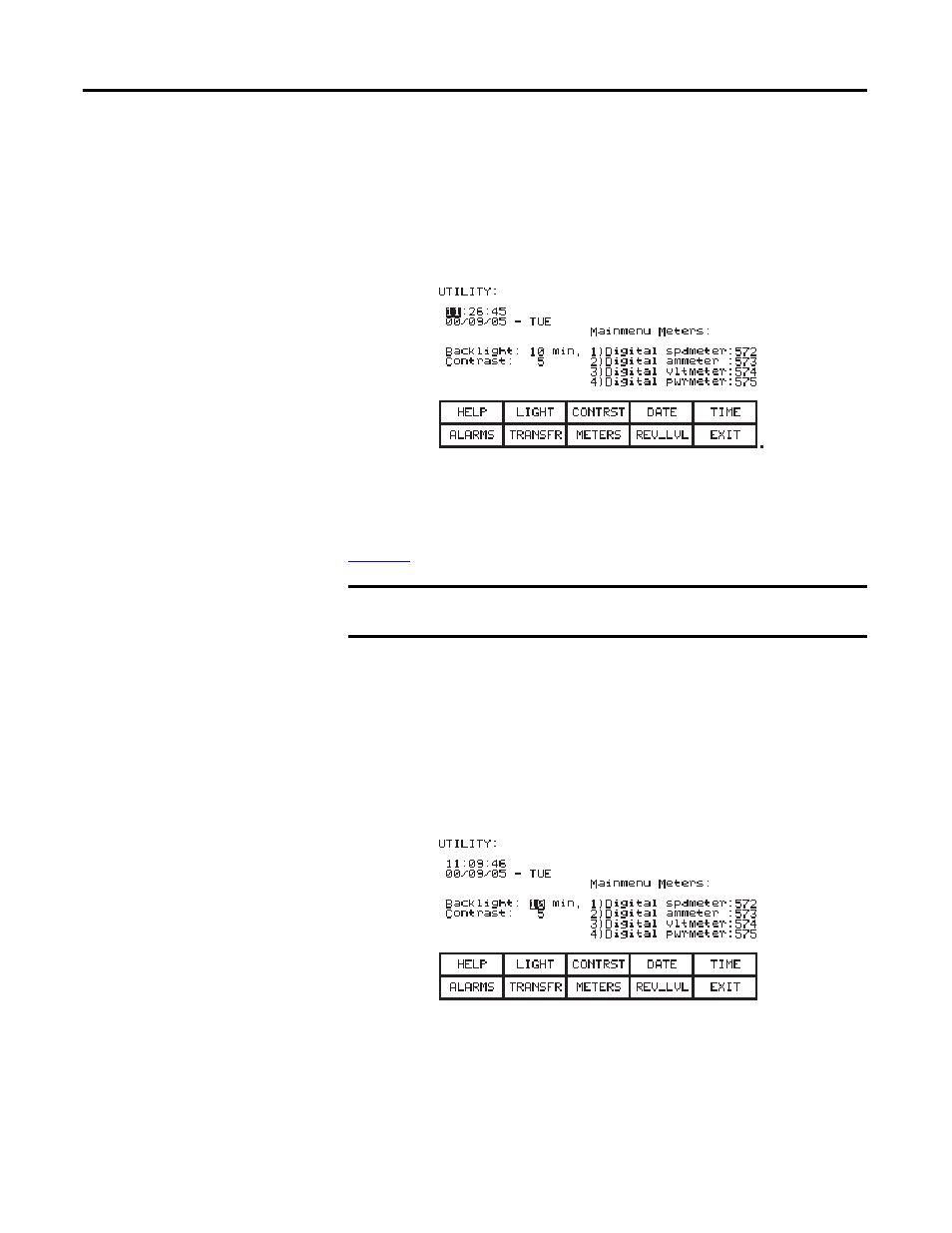

Figure 18 - Utility Operation (configuration) screen

During configuration, the selected value appears highlighted as shown in

Figure 18

. Select a value to edit it.

Changing Backlight Delay

The interface display is backlit. To preserve the life of the lamp, backlighting
automatically shuts off after a period of inactivity on the keypad. Restore the
backlight by pressing any key, which has no other affect on the interface when
pressed with the backlight off.

Figure 19 - Configuring display backlight

IMPORTANT

You can abort configuration from any screen by pressing any of the assigned
function keys (other than F1).
