Rockwell Automation 7000 PowerFlex Medium Voltage (B Frame) Commissioning - ForGe (PanelView 550) User Manual
Page 132
128
Rockwell Automation Publication 7000-IN006B-EN-P - May 2013
Appendix B
Printing and Uploading Drive Data

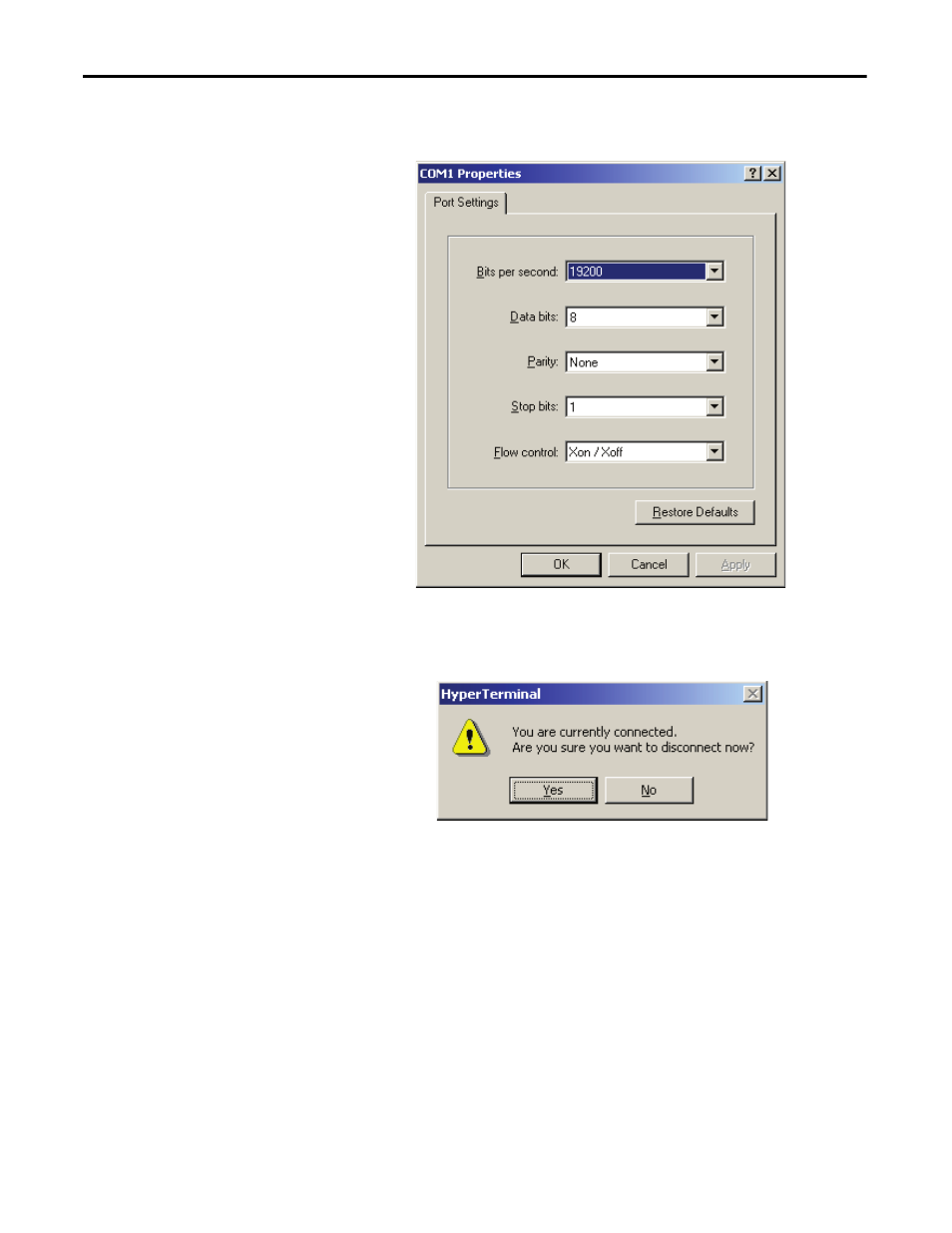

8. In the ‘COM1 Properties’ window, specify the port settings as shown
below, then click OK.
Figure 74 - HyperTerminal COM1 properties
Click OK to close the HyperTerminal program. Following message appears.
Figure 75 - Hyper Terminal disconnection prompt
