Rockwell Automation Publication 7000-IN006B-EN-P - May 2013

129

Printing and Uploading Drive Data

Appendix B

9. Click Yes, and at the prompt, click Yes again to save the session and close

the program.

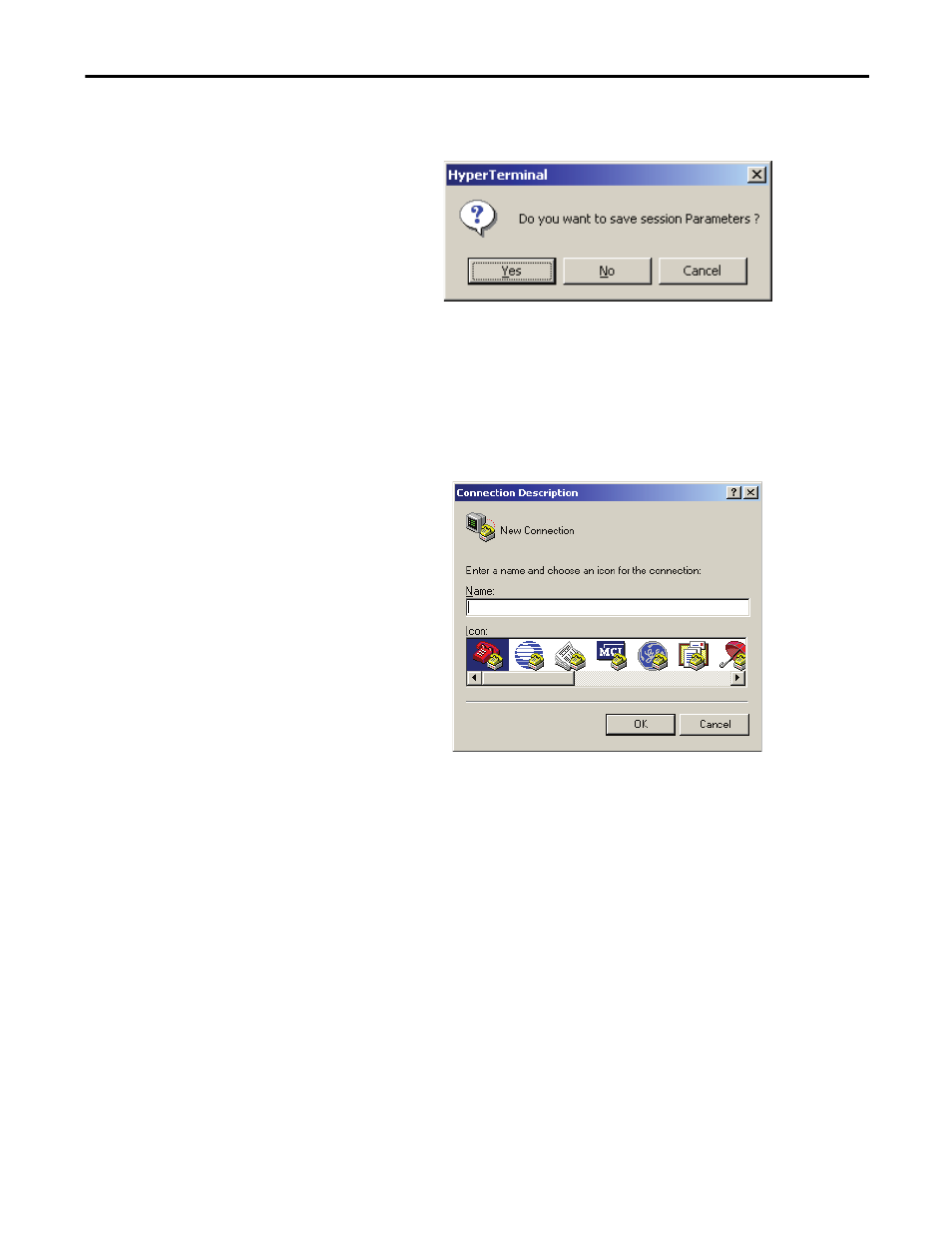

Figure 76 - HyperTerminal — save session data

10. To upload data from the drive, connect a null-modem cable between your

computer’s serial port and the serial port ‘J11’ on the Analog Control
Board (ACB).

11. Restart the HyperTerminal program. On the ‘Connection Description’

window click Cancel.

Figure 77 - Reopening HyperTerminal
