Rockwell Automation 7000 PowerFlex Medium Voltage (B Frame) Commissioning - ForGe (PanelView 550) User Manual
Page 138
134
Rockwell Automation Publication 7000-IN006B-EN-P - May 2013
Appendix B
Printing and Uploading Drive Data
7. From the File menu, select Open. Locate the HyperTerminal connection
that you just created (ForGe_CONNECTION in this example), and click
Open.
If you have not already connected the null-modem cable betweent eh
laptop and DPM board, do so now.
8. Press the ENTER keyto open the following options menu in the
HyperTerminal window.

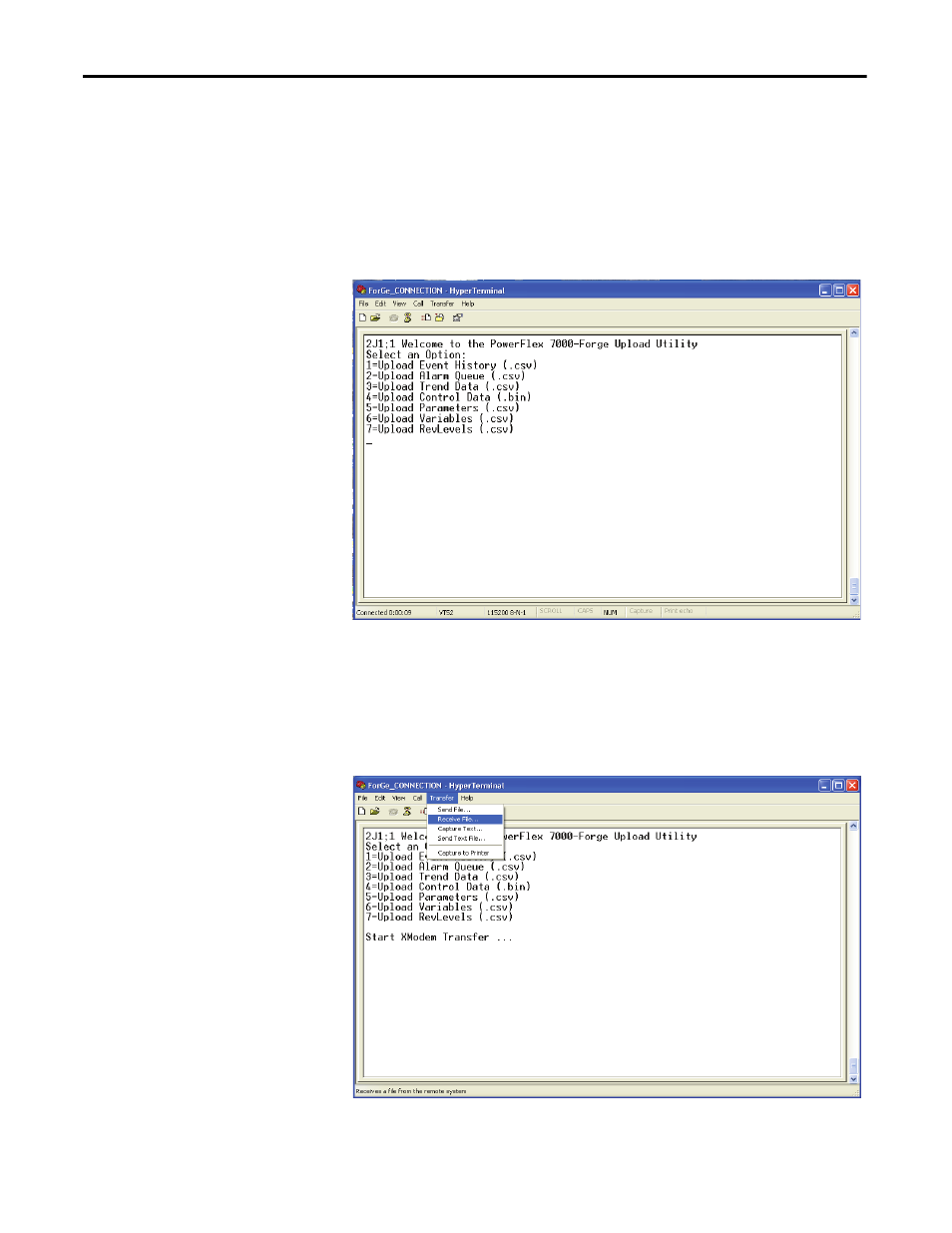

Figure 85 - HyperTerminal — Upload utility main menu
9. From the Options menu, choose an option by pressing the corresponding
number to upload the data. To upload Control Data, select option 4.
10. Start the transfer by selecting Receive File … from the Transfer menu as
shown below.
Figure 86 - HyperTerminal — Transfer menu options
