34

Rockwell Automation Publication 7000-IN006B-EN-P - May 2013

Chapter 3 Initial Operator Interface Configuration

The cursor highlights the first character position of the string as shown in

Figure 25

. Refer to the section entitled “Edit Text”.

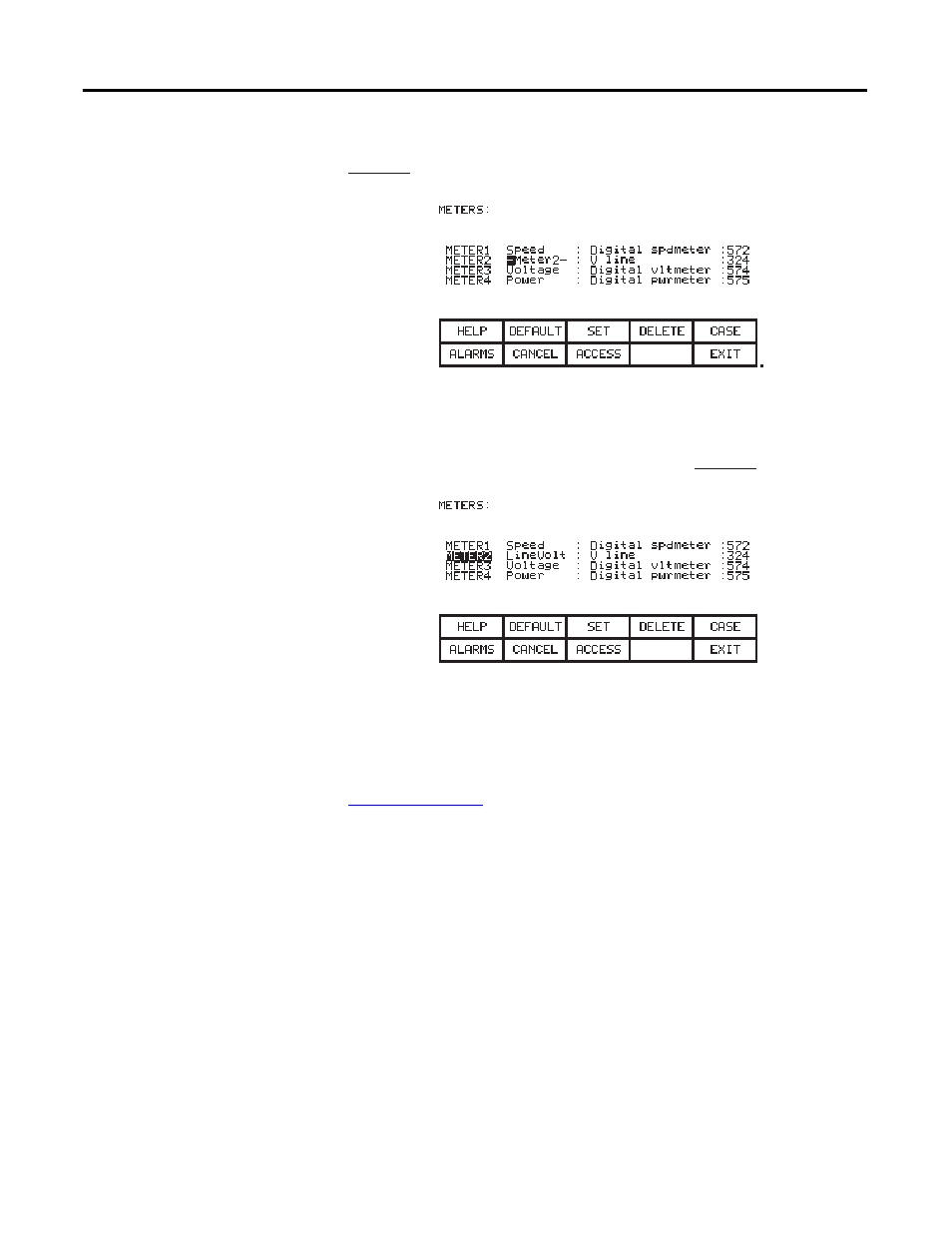

Figure 25 - Editing text

When editing is complete, the screen will appear as in

Figure 26

.

Figure 26 - Editing complete

The operator interface contains a default set of meters. Select the default set by
pressing [F2] from the 'Meters' screen to view default text and tags as shown in

Figure 23 on page 33

.

Edits do not take affect until you press [F10] and exit the screen. Cancel any edits
prior to exiting the screen by pressing [F7].
