UDC OS

included

w/ Executive

software

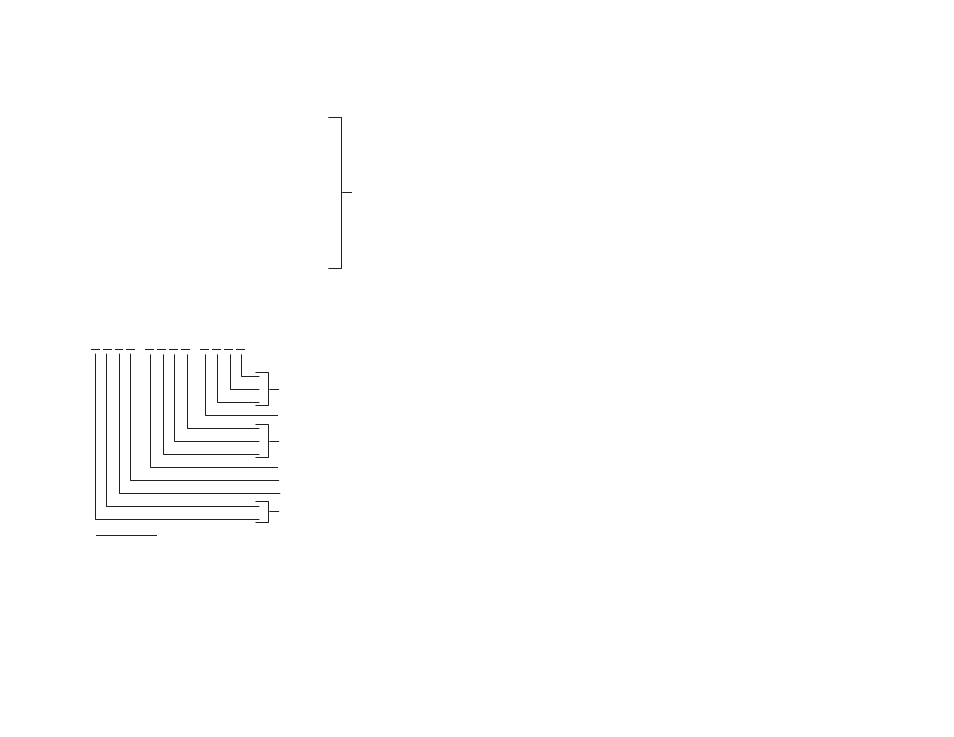

N N A N Ć N N N N Ć N N N N

PMI OS Version (001Ć999)

UDC OS Version (1Ć99)

PMI OS Type (see below)

PMI OS Version (001Ć999)

UDC OS (0Ć9; 0=not beta)

UDC OS Revision Level (AĆZ)

PMI OS Type (see below)

PMI OS Types
0=SD3000

1=SF3000

2=SA3000 Vector

3=SA500 Brushless DC

4=VZ3000

5=SB3000

6=Medium Voltage

7=SA3000 Constant Power

8=SA500 Speed Loop

9=SA3000 V/Hz

A=SA3100 Constant Power

B=SA3100 V/Hz

MĆ1

Appendix M

Part Numbers of

UDC Operating System Versions

422544Ć034BĆ00

SD3000 + SF3000

V3.4C

422544Ć134CĆ00

SA3000 + SA500

V3.4C

422544Ć234CĆ00

SD3000 + SA3000

V3.4C

422544Ć334BĆ00

SD3000 + SA500

V3.4C

422544Ć034DĆ00

SD3000 + SF3000

V3.4D

422544Ć134DĆ00

SA3000 + SA500

V3.4D

422544Ć234DĆ00

SD3000 + SA3000

V3.4D

422544Ć334DĆ00

SD3000 + SA500

V3.4D

422544Ć034EĆ00

SD3000 + SF3000

V3.4E

422544Ć134DĆ00

SA3000 + SA500

V3.4E

422544Ć234EĆ00

SD3000 + SA3000

V3.4E

422544Ć334EĆ00

SD3000 + SA500

V3.4E

Beginning with AutoMax Executive Version 3.5, the UDC operating systems are

not included with the Executive software. Instead, they are included in the

separate DPS options software. The example that follows shows how to

determine the UDC and PMI operating system numbers that are displayed on the

Info/Log UDC Information screen.
