Placeholder format Ć If the substitute string = "L\2Q\1S",
then the first placeholder '\2' identifies the location where
substring "G", representing the second wildcard group, is
to be placed, and '\1' identifies where substring "BCDE",
representing the first wildcard group, is to be placed.
Range Ć Enter the slot numbers of the first and last slot in
the rack for which the variable substitution will be
performed.
Confirm Each Substitute Ć Check this box if you want to
confirm each substitution before it is made.
Step 3. Select Substitute to make the variable name substitutions,
or Exit to return to the Rack Configurator without changing
variable names.

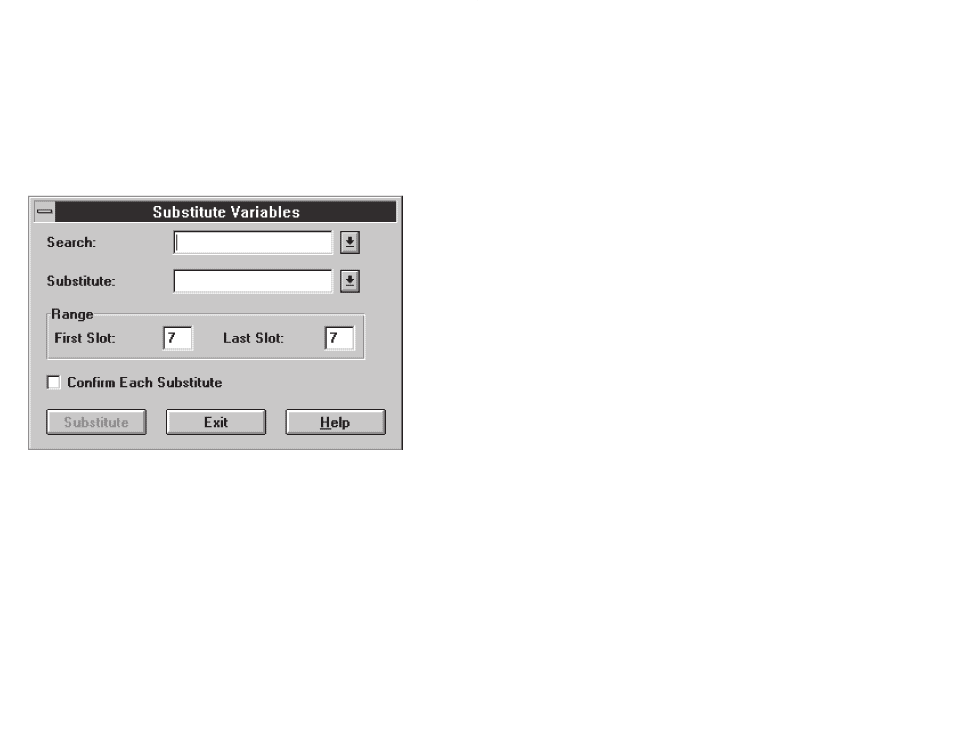

Figure 6.7 Ć Substitute Variables Dialog Box
6.14 Substituting Variable Descriptions
Select Substitute Descriptions from the Commands menu in the Rack
Configurator to substitute variable descriptions from within the Rack
Configurator. This command brings up the Substitute Descriptions
dialog box. It then performs all of the requested substitutions and
returns to the Substitute Descriptions dialog box until you choose
Exit. Use the following procedure to substitute variable descriptions.
Step 1.
Select Substitute Descriptions from the Commands menu.
The Substitute Descriptions dialog box is displayed (see
figure 6.8).
Step 2. Enter information for the following fields:
Search Ć The variable description search string specifies
the criteria which are used to locate variable descriptions.
This field can contain from 1 to 16 characters, and can
