Preface ControlGuardian User’s Guide
10-12
Printing Reports

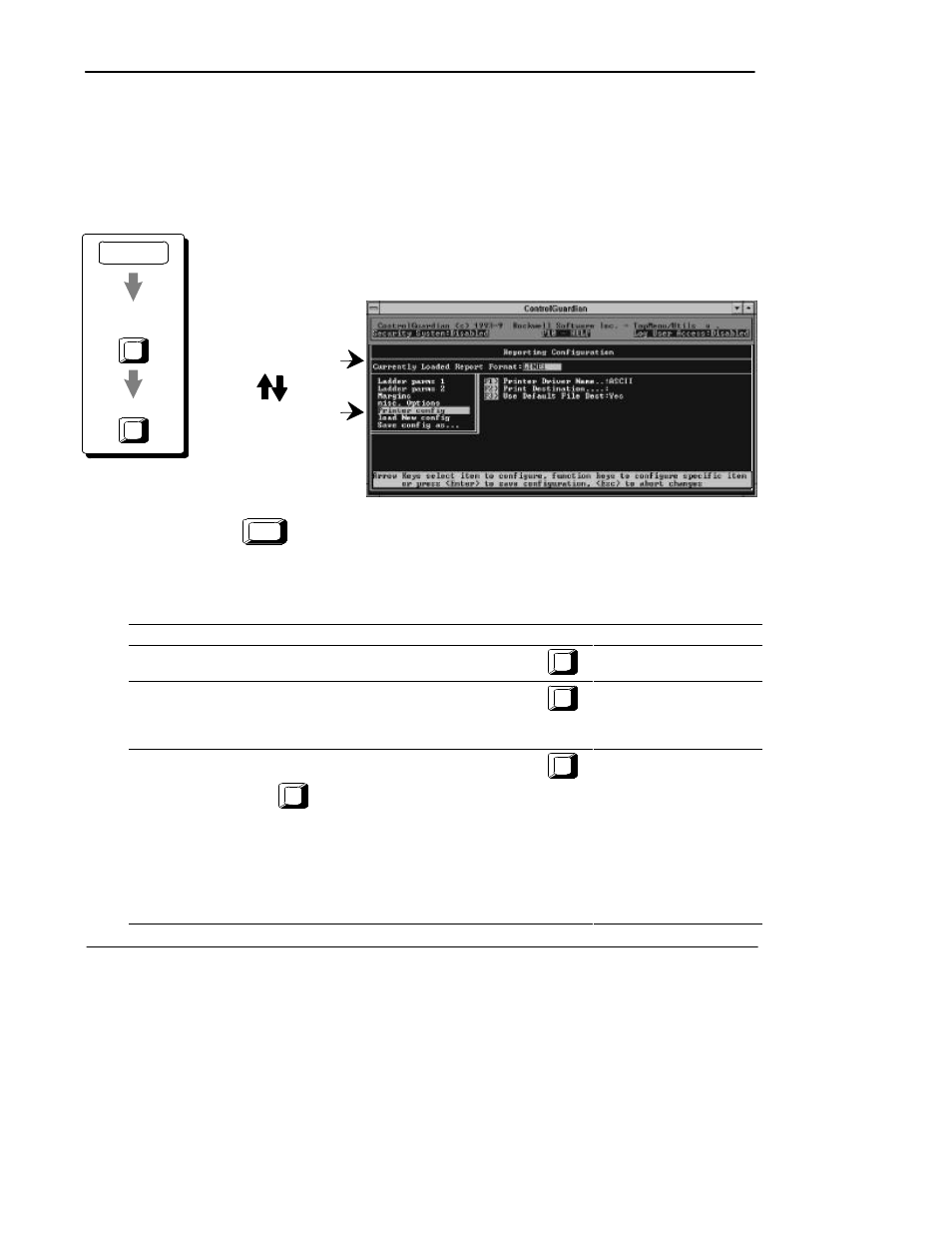

You can select a printer template as the your printer configuration or you can specify
a file name for the report to so that you can print or view the report at a later time.
ControlGuardian is initially configured to print reports to a printer using the LPT1
communications port. To select a printer template, do the following:
to exit and save
Use the keys to select
Printer Configuration.
Use function keys to
configure printing parameters.
Press
F2
Configure Program
F8
Configure Report
Main Menu
Parameters
your report to the currently
loaded report format name.
Identifies currently
loaded report format
¬
-
®
6 2 0
Enter
Table 10.H
Printer Configuration Function Key Descriptions
If you want to: Press this key:
Select a printer driver template. You can also modify, create, or delete
printer template files.
F1
Printer Driver Name
Select where the printout will be sent. LPT1 is standard for most printer
configurations. Other options are LPT2, COM1, COM2, or a disk file.
You can print the report to a disk file to save for later reference or printing.
You must specify a valid DOS drive and path.
F2
Print Destination
Select the Default File Destination. Toggle between yes and no.
Selecting no prints the compare report to the
F2
Selecting yes creates a comparison report file with the same name as
the processor file:
C:\AUTO\MASTER\FILE NAME.TXT
For example: If the master name is MACHINE1, the compare report
is named MACHINE1.TXT.
For example:
C:\AUTO\REPORT\LINE1.TXT
destination specified in the option.
F3
Use Default File Des
