The Numeric Input Cursor Point object allows the operator to select
from an array of numbers. Each Numeric Cursor Point has an
associated Keypad Numeric Input control that communicates the
value to the PLC. At the terminal, the keypad’s arrow and Home
keys are used to select a cursor point. The keypad’s Select button
enables the arrow and Home keys while Cancel disables them.
Numeric Input Cursor Point
Refer to the section “Cursor Point Default Operation” in the chapter
on Control Selectors.
Note: Numeric Input Cursor Points can be used with Set Bit Cursor
Points on the same application screen.
Using the Numeric Input Cursor Point on the PanelView Terminal
When the application is running, the operator can use the following
keys to control the Numeric Input Cursor Point:
This key Does this
Select Enables cursor point operation and activates the arrow and
Home keys.
Arrow keys Move the cursor to the desired Numeric Input or Set Bit Cursor
Point in the screen.
Home Moves the cursor to the Home position (the top left Numeric
Input or Set Bit Cursor Point) in the screen.
Cancel Turns off the Numeric Input Cursor Point feature and disables
the keys.

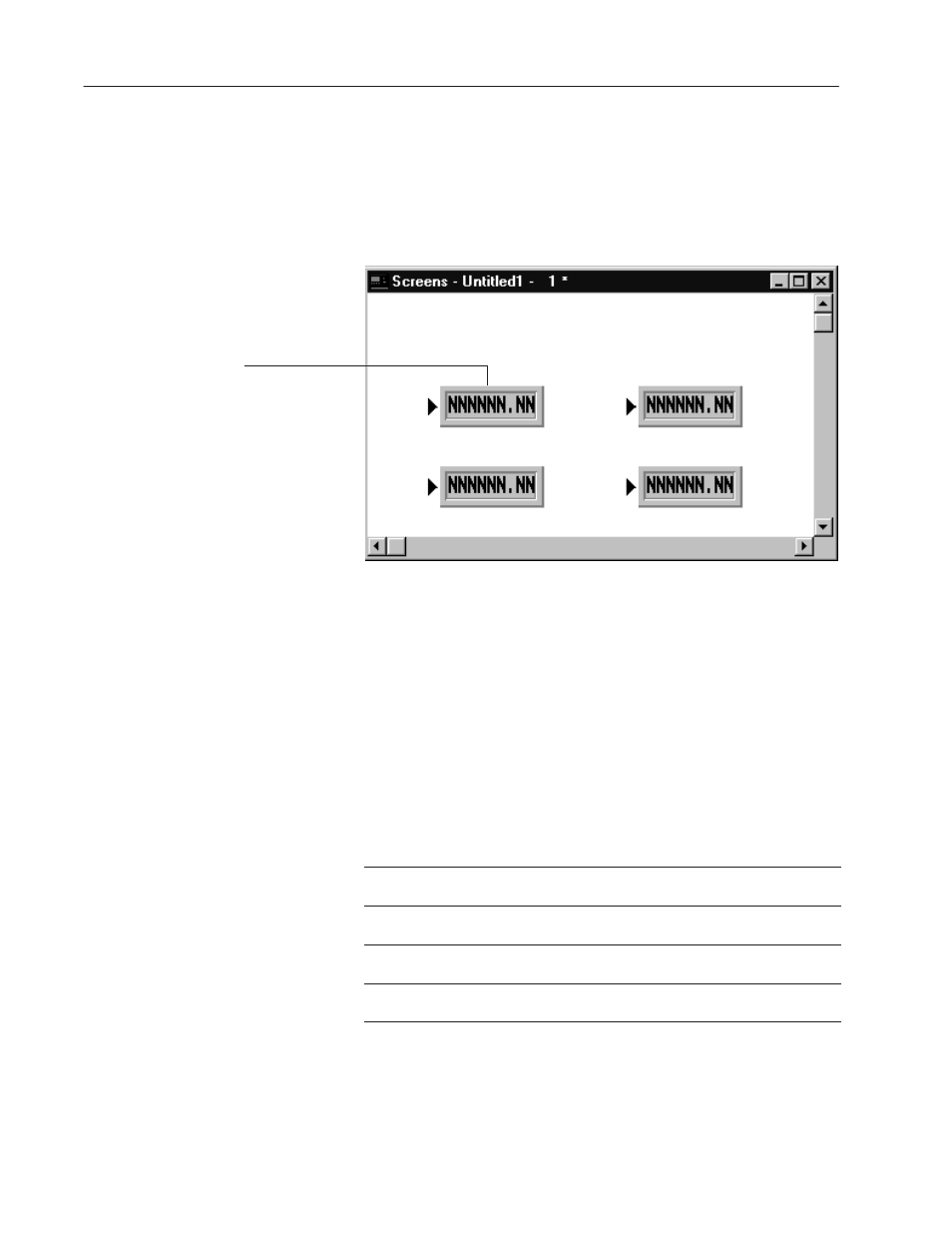

Numeric Input Cursor
Point (Keypad Terminals
Only)
"
