Rockwell Automation 2711E-ND1 PanelBuilder 1400E Reference Manual User Manual
Page 17
6
ASCII Inputs
Publication 2711E-820 – January 1998
Important:
In Remote I/O applications, depending on how the
Application Startup screen is configured, the PanelView
terminal retains the current value of the ASCII Input
control even after the terminal is turned off.
In DH+ applications the value is not retained.
ASCII Input Object Displays

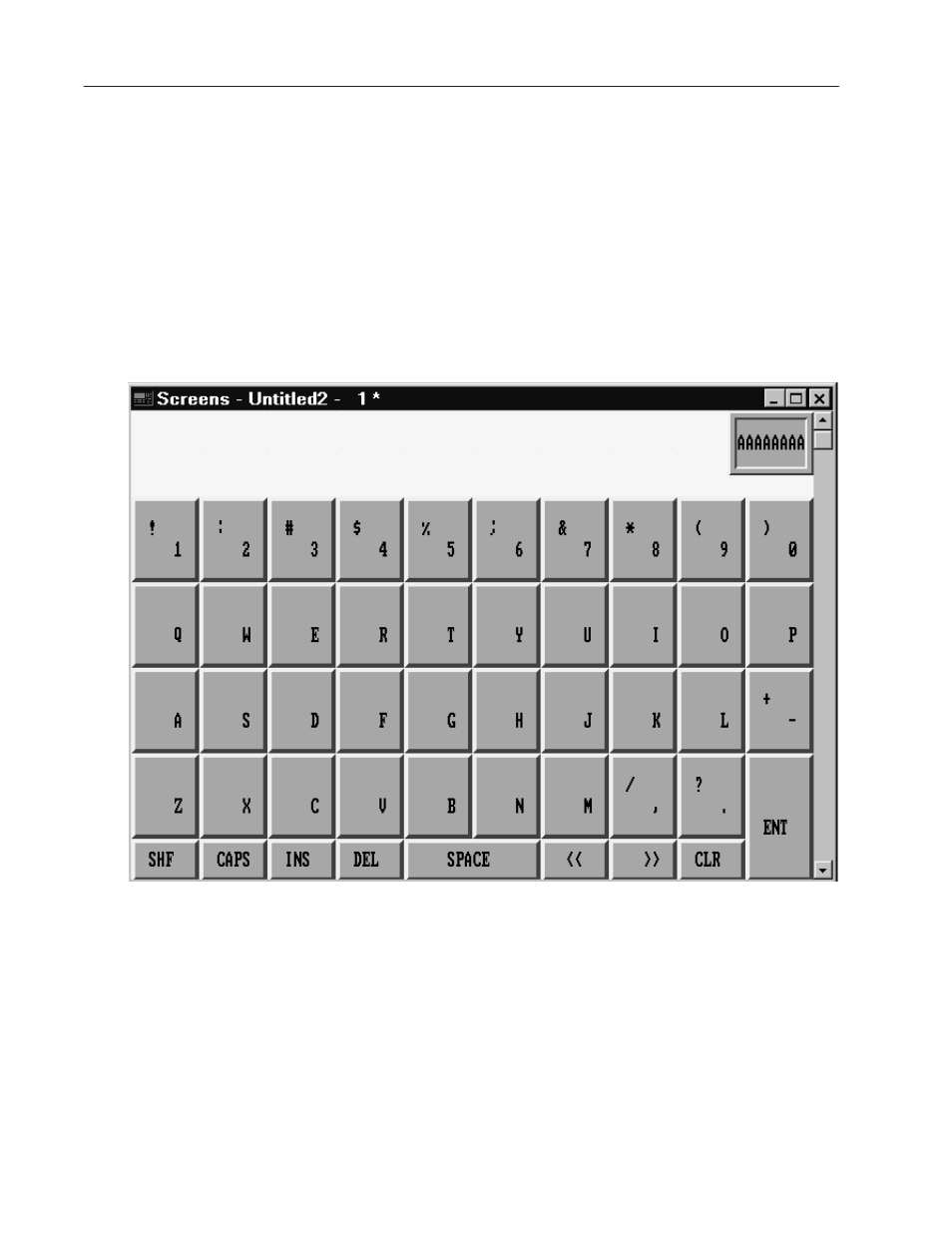

The following illustration shows the Large ASCII Input object for a
touch screen terminal.
RIO
DH+
