Rockwell Automation 1785-Lx0C15 ControlNet PLC-5 Programmable Controllers User Manual - Manual (Page 70)

1785-UM022C-EN-P - February 2008
2-32 Planning to Use Your ControlNet PLC-5 Processor
Personal computer
with 1784-KTCX15 card
(ISA-based) and
your HMI or
programming software
Personal computer or
other serial device
and your HMI or
programming software
Laptop computer with
1784-PCC card (PCMCIA-based)
and your HMI or
programming software
Serial connection
1770-KFC15
Interface
PLC-5/40C
ControlNet Network
1794-ACNR15
Flex I/O Adapter
1771-ACNR15
Adapter
Data Highway Plus link
Remote I/O link
PLC-5/40C
1784-PCC1 to PLC-5 (NAP
port or any other NAP port)*

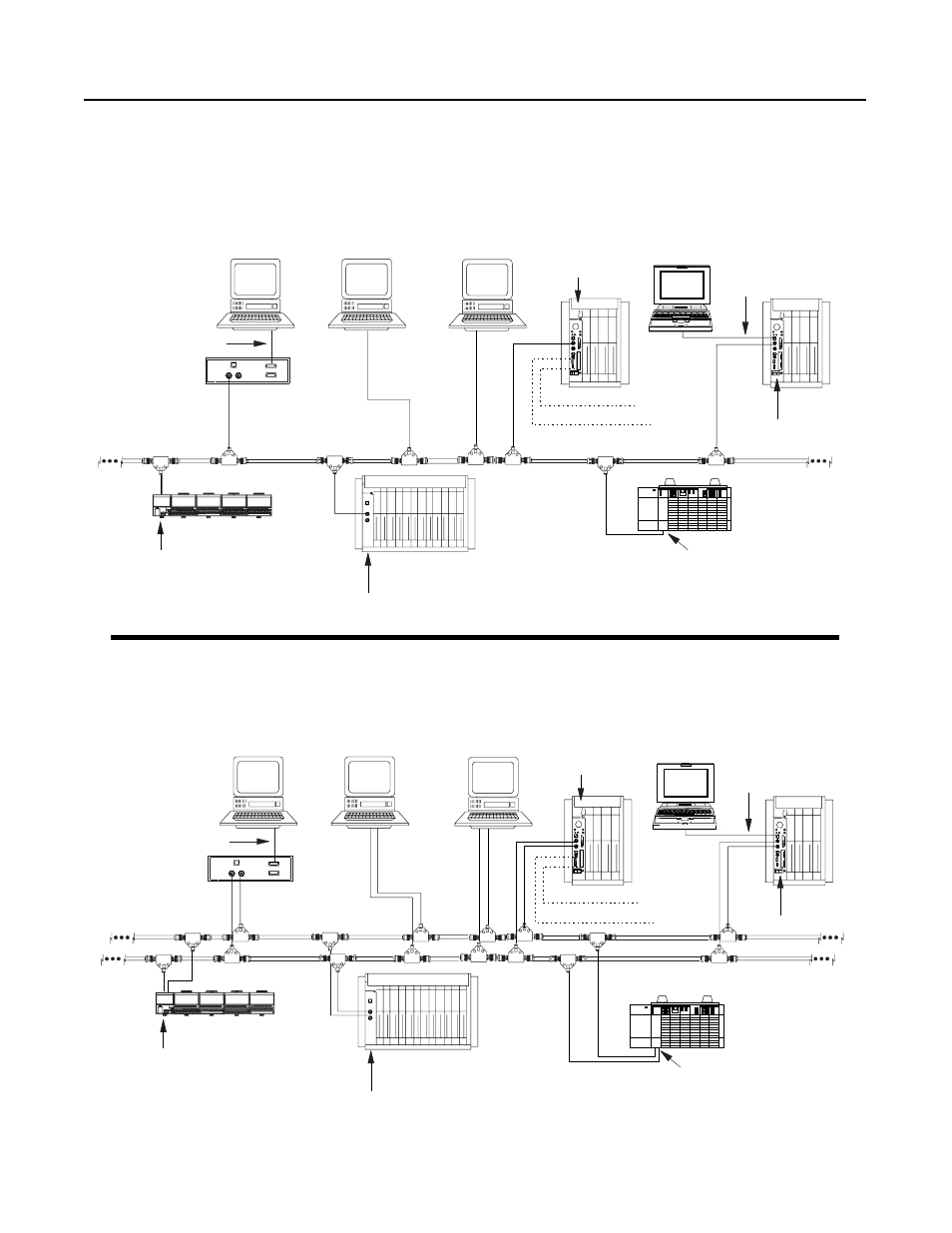

Example of a ControlNet Network without Redundant Media
Personal computer
with PCIC card (PCI-based)
and your HMI
or programming software
Tap (4 choices)
1786-TPR
Tap (4 choices)
1786-TPR
Tap (4 choices)
1786-TPR
1747-ACNR15
Adapter
Personal computer or
other serial device
and your HMI or
programming software
Serial connection
1770-KFC15
Interface
ControlNet Network
1794-ACNR15
Flex I/O Adapter
1771-ACNR15
Adapter
Data Highway Plus link
Remote I/O link
PLC-5/40C
Example of a ControlNet Network with Redundant Media
Personal computer
with 1784-KTCX15 card
(ISA-based) and
your HMI or
programming software
Laptop computer with
1784-PCC card (PCMCIA-based)
and your HMI or
programming software
PLC-5/40C
Personal computer
with PCIC card (PCI-based)
and your HMI
or programming software
Tap (4 choices)
1786-TPR
1747-ACNR15
Adapter
Tap (4 choices)
1786-TPR
Tap (4 choices)
1786-TPR
1784-PCC1 to PLC-5 (NAP
port or any other NAP port)*
