1785-UM022C-EN-P - February 2008
Installing Your ControlNet PLC-5 Processor 1-3
Identifying ControlNet PLC-5
Processor Components Figure 1.1 and Figure 1.2 show the front panels of the ControlNet
PLC-5 processors.

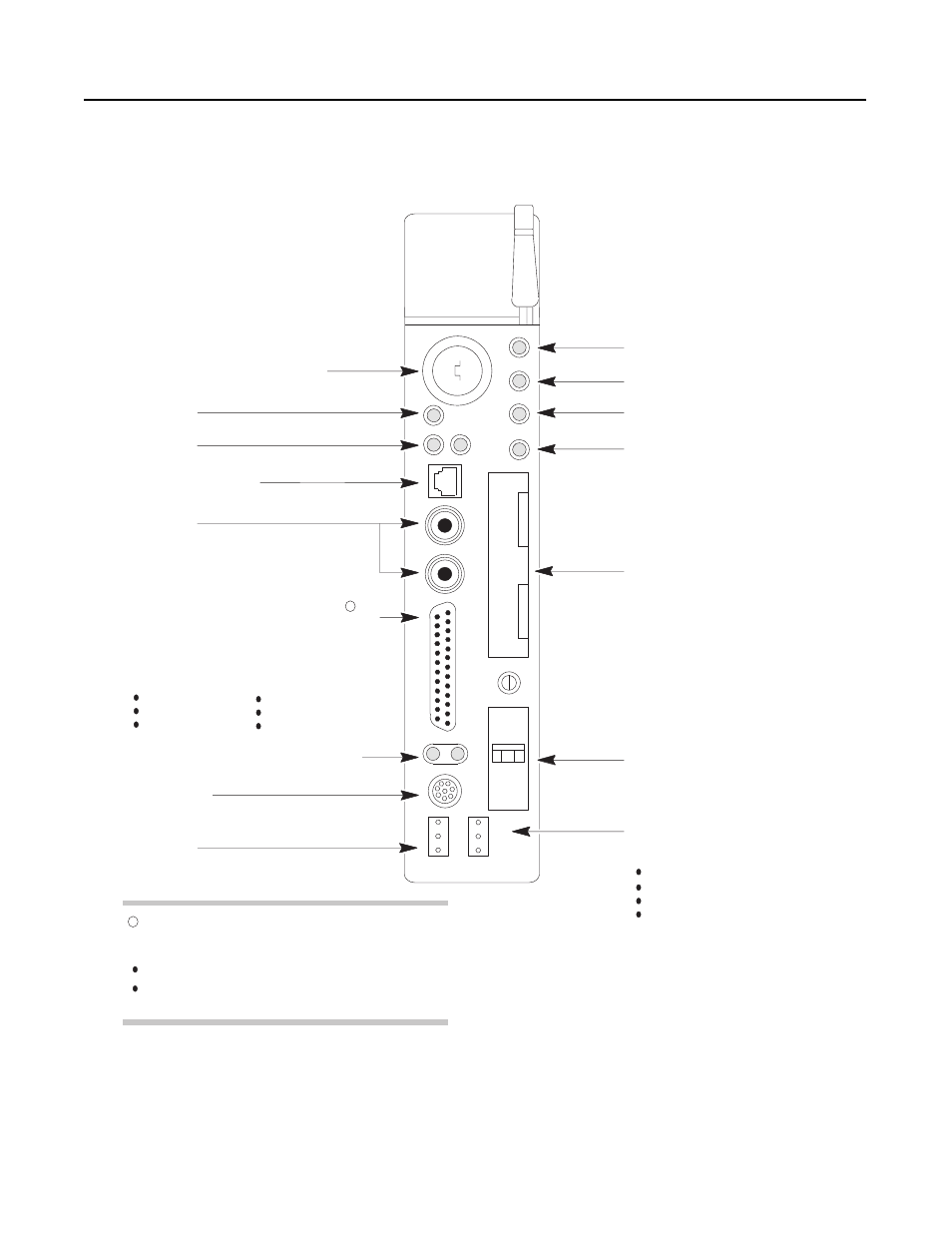

Figure 1.1 PLC-5/20C Processor Front Panel
Battery Status Indicator
(Red)
Processor RUN/FAULT Status Indicator
(Green/Red)
Force Status Indicator
(Amber)
Channel 0 Communication ACTIVE/
FAULT Status Indicator
(Green/Red)
Memory Module Space
Battery Compartment
Use this port with ASCII or DF1 full-duplex,
half-duplex master, and half-duplex slave
protocols. The port's default configuration supports
processor programming:
Keyswitch-selects processor mode
Channel 0
Serial Port-25-pin D-shell; supports standard EIA
RS-232C and RS-423; is RS-422A compatible
DH+ Programming Terminal Connection
to Channel 1A
8-pin mini-DIN, parallel with 3-pin
connectors of Channel 1A
one stop-bit
BCC error check
no handshaking DF1 point-to-point
2400 bit/s
no parity
Channel 2 ControlNet Status Indicators
(Green/Red)
Channel 2
ControlNet Redundant Media
Ports BNC; dedicated
Channel 0 is optically coupled (provides high electrical
noise immunity) and can be used with most RS-422A
equipment as long as:
termination resistors are not used
the distance and transmission rate are reduced to
comply with RS-423 requirements
ControlNet I/O Status Indicator
(Green/Red)
ControlNet Network Access Port
(NAP)-RJ45 connector
Channel 1 Status Indicators (Green/Red)
Channel 1A
3 pin; dedicated DH+
Channel 1B
3 pin; default is remote I/O scanner;
configurable for:
remote I/O scanner
remote I/O adapter
DH+ communication
unused
