Rockwell Automation 1785-Lx0C15 ControlNet PLC-5 Programmable Controllers User Manual User Manual
Page 32
1785-UM022C-EN-P - February 2008
1-20
Installing Your ControlNet PLC-5 Processor
Serial Channel

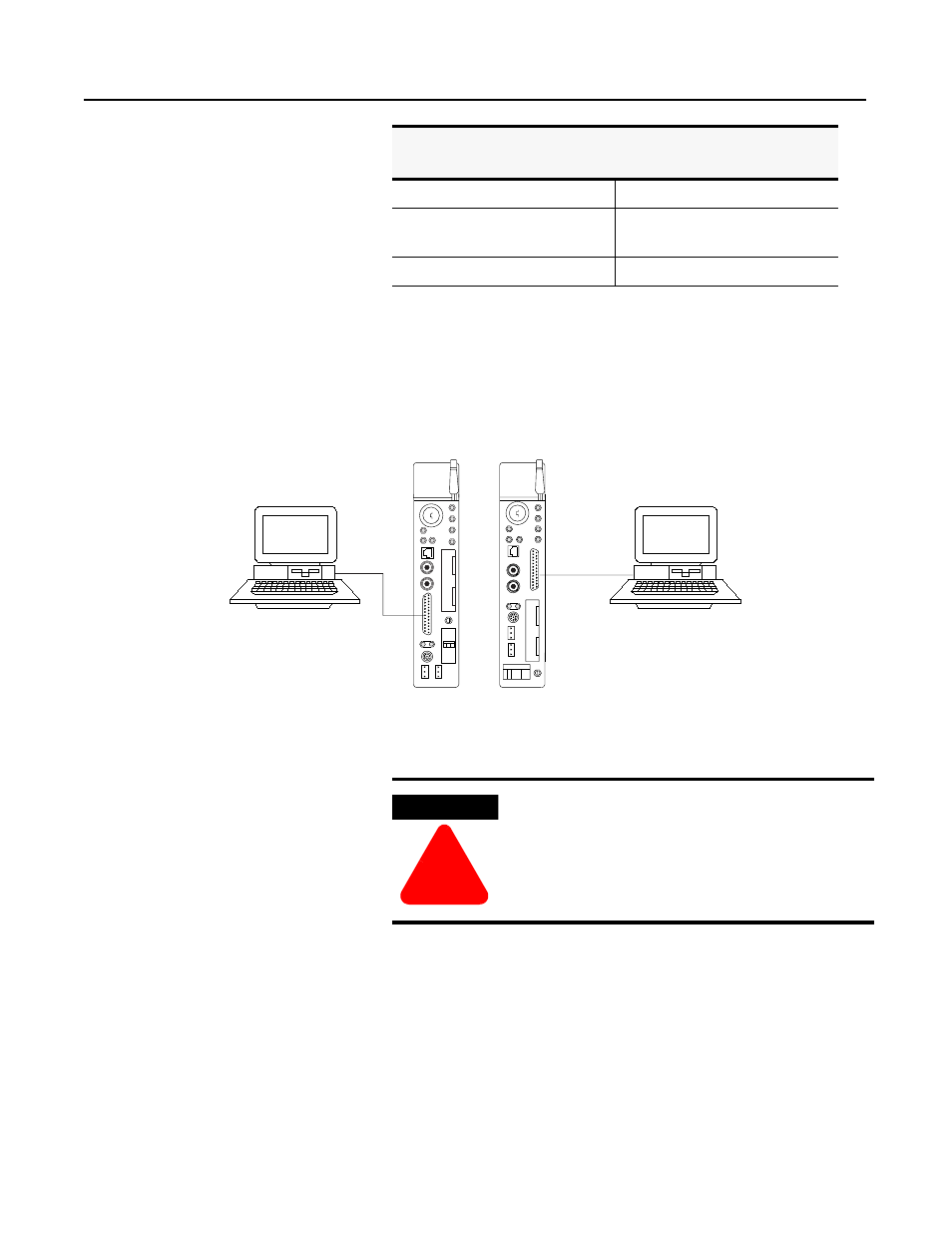

To program the processor using Channel 0, configure the channel for
RS-232C using DF1 point-to-point protocol.
When using this
communication card:
Use this cable:
1784-KTX, KTXD
• 1784-CP13
1784-PCMK
• 1784-PCM6
• 1784-PCM5 with 1784-CP7 adapter
1784-PKTX, -PKTXD
• 1784-CP13
If your personal computer
has a 9-pin serial port,
use the 1784-CP10 cable.
If your personal computer
has a 25-pin serial port,
use the 1784-CP11 cable.
Personal computer
Personal computer
PLC-5/20C
Processor
PLC-5/40C, -5/46C
or -5/80 C Processor
If you connect or disconnect the serial cable with
power applied to this processor or the device on the
other end of the cable, an electrical arc can occur.
This could cause an explosion in hazardous location
installations. Be sure that power is removed or the
area is nonhazardous before proceeding.
WARNING
!
